ZP19038 Baskenridge Vinyl Gate Kit With Fence Wings (51⅜" W X 36"H) Assembly Instructions

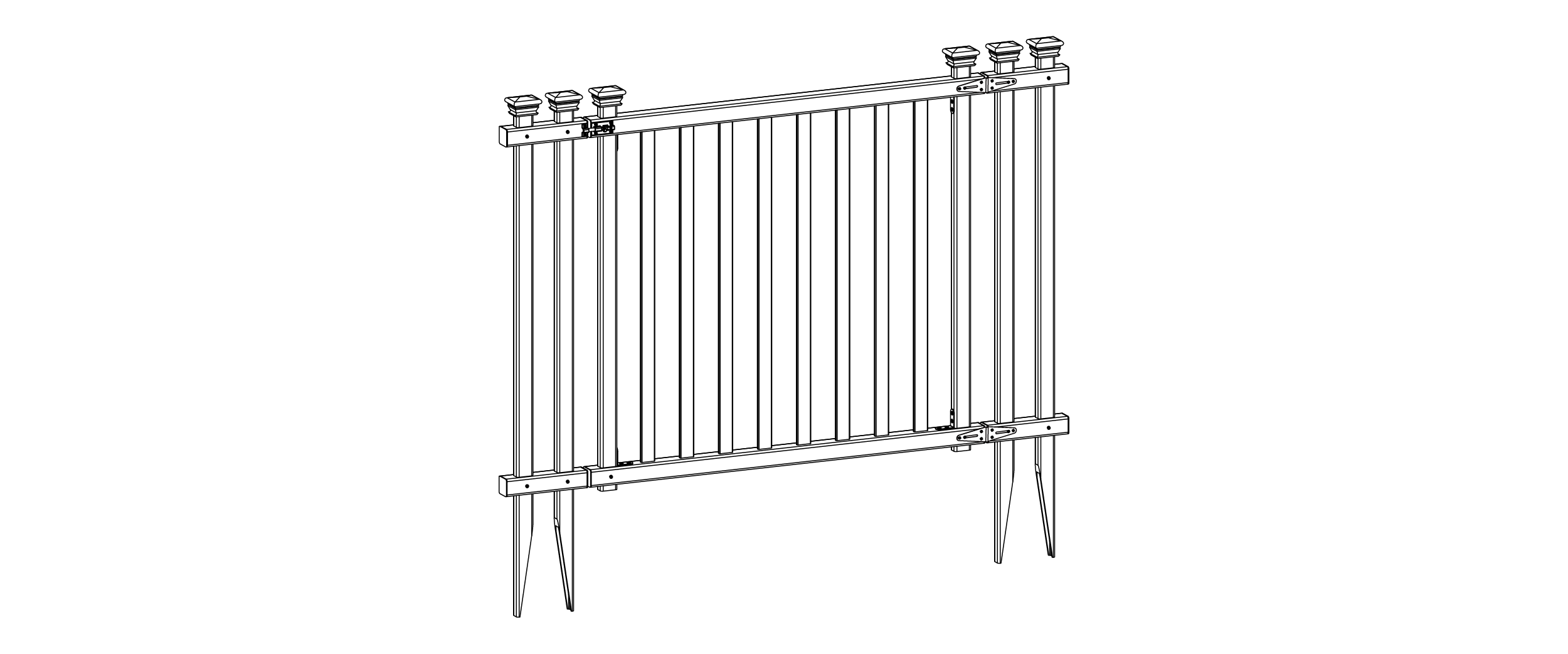

ZP19038 Cover Image

Approximate assembly time: 60 MIN

Click here to watch an installation video.

Introduction

General Information

Important Safety Notes:

Check the inside of the larger pieces in your box for other materials packed inside.

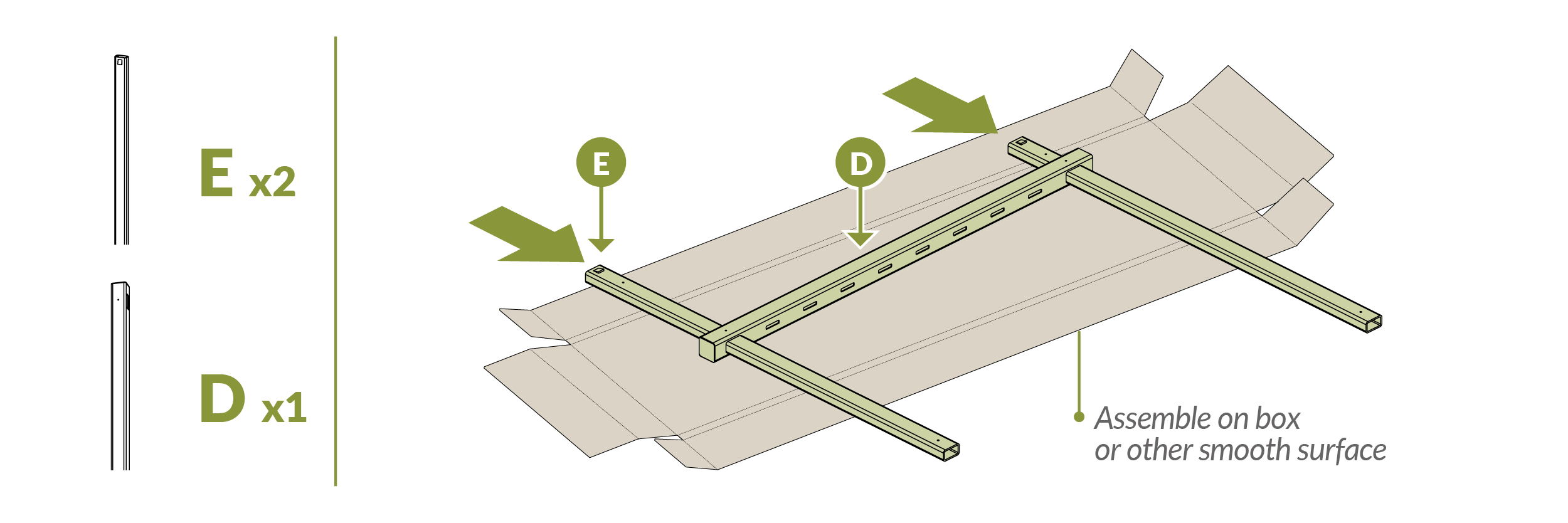

When assembling components, place on a non-abrasive surface (i.e. shipping box) to avoid scratching.
We recommend an area approximately 5’x 8’ for unobstructed assembling.
You should not need to use excessive force when assembling components.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is happy to help.

Customer service agents are available 9am–5pm EST, Monday–Friday. Leave a voicemail if outside of business hours and it will be returned within 1 business day.

For Quick Assistance:

Have reference item number ZP19038
Provide the specific part name (see list here)
Include the batch lot number (stamped on the end of the box)

Additional Information

1 . Read over fence instructions first.

Your gate and fence will work better together if you first take the time to read and understand your fence.

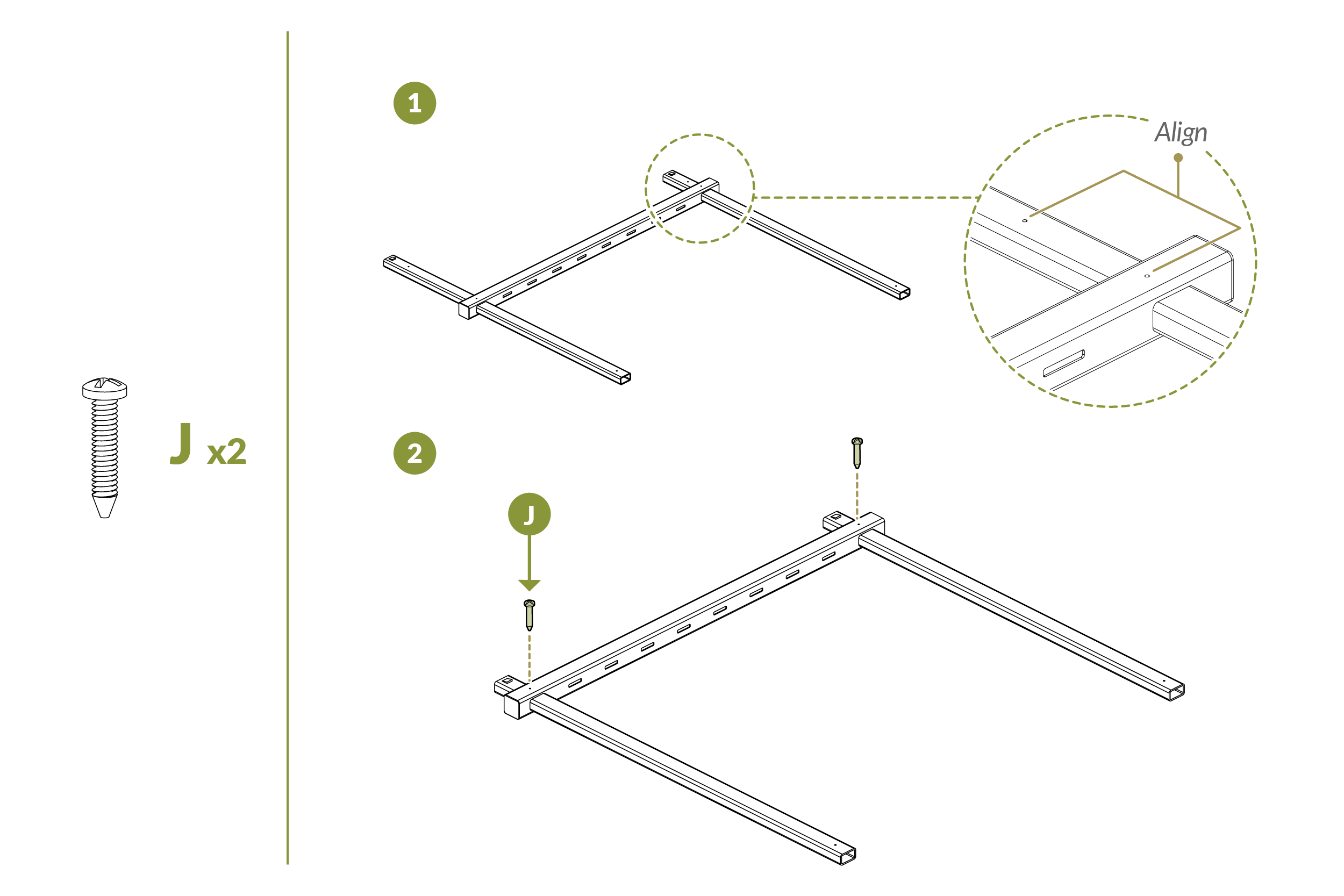

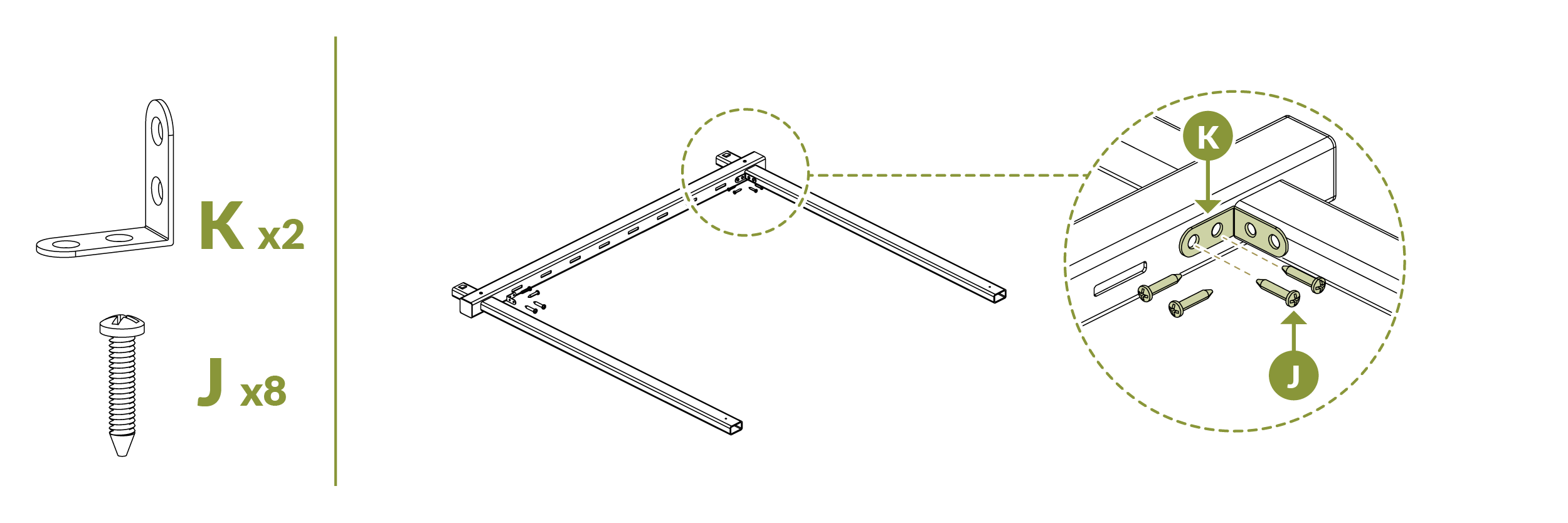

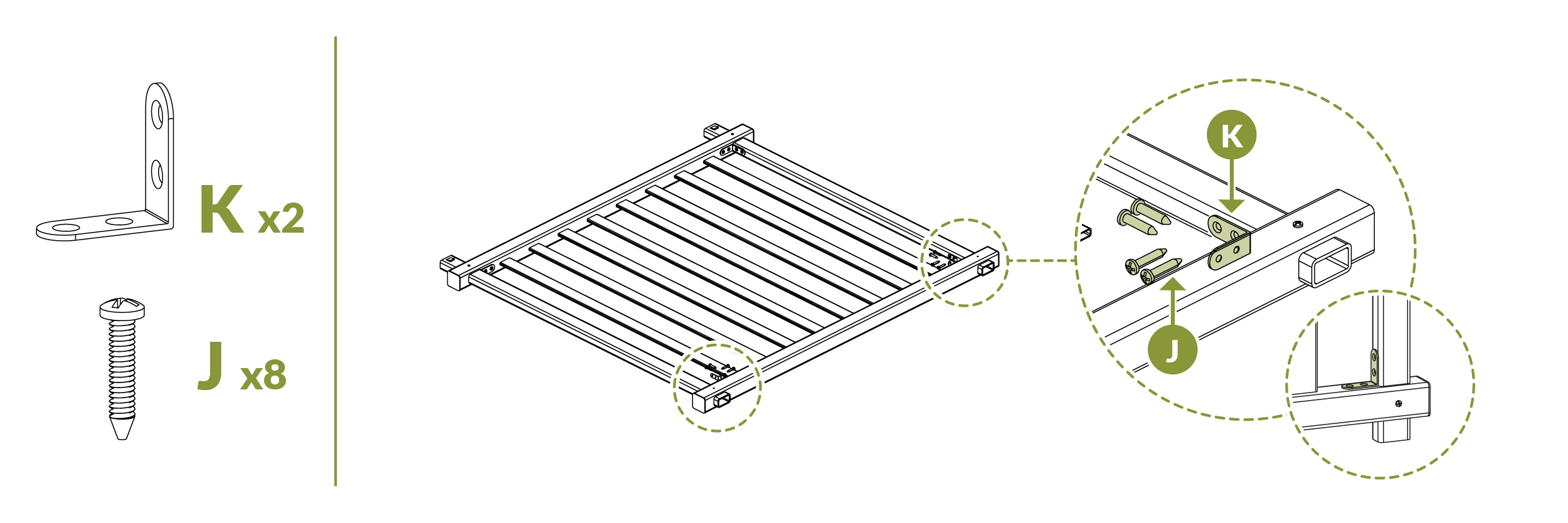

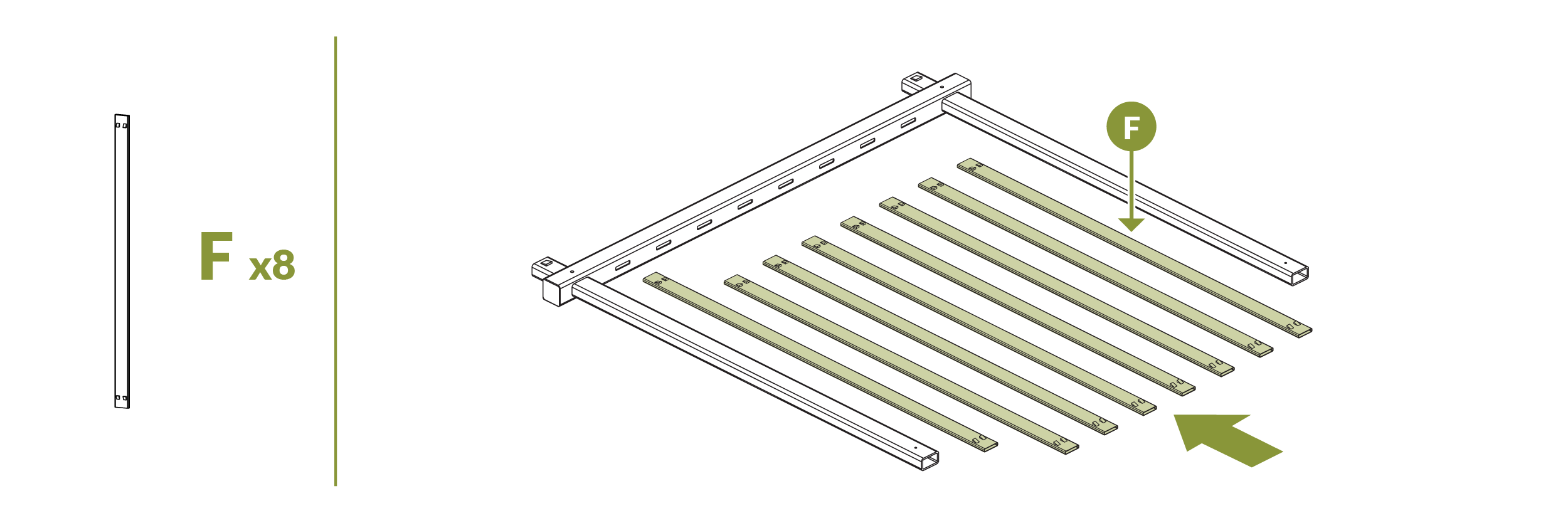

2 . Pre-assemble the gate frame.

Please do not screw the gate frame together until you have temporarily assembled the gate frame. In other words, do a dry run first. This will ensure:

That you have everything necessary to complete the gate.
That you will have assembled the gate frame in the correct order.
All of the pieces fit and function properly.

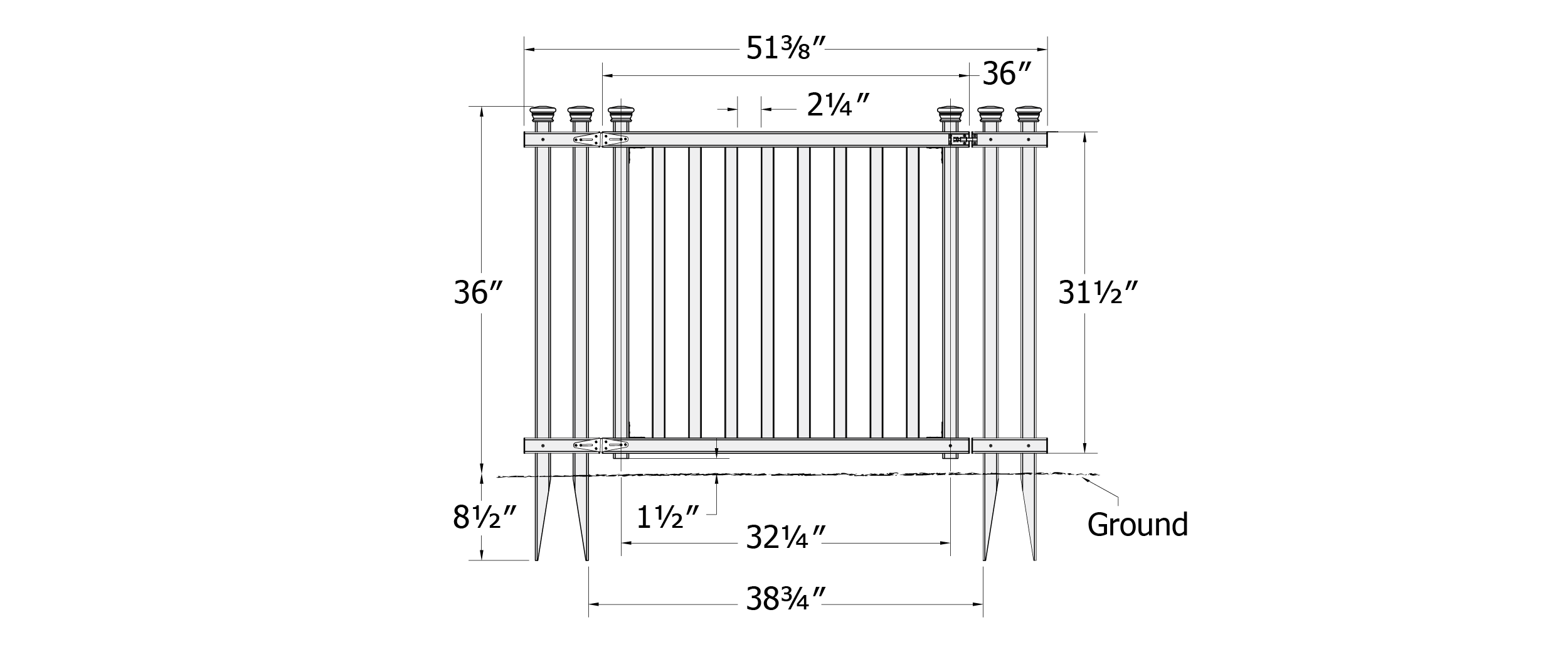

The gate height and width are similar to the measurements shown on page four.

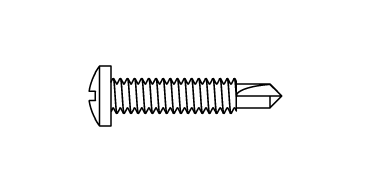

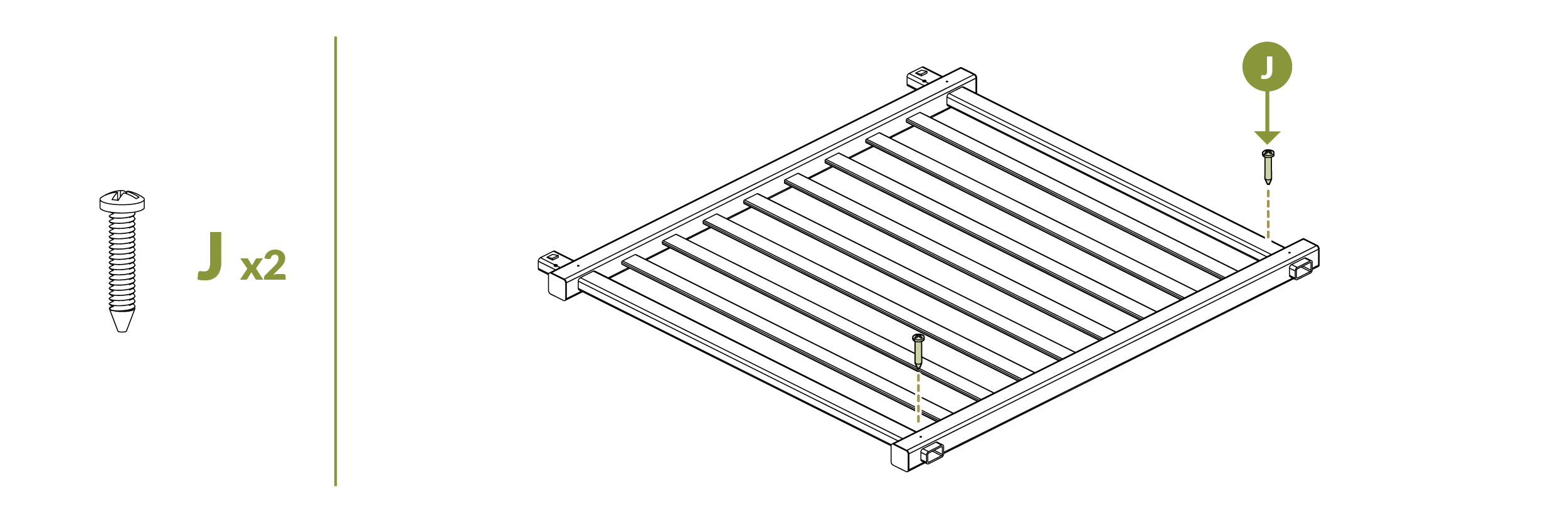

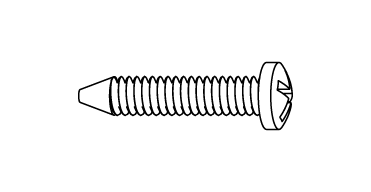

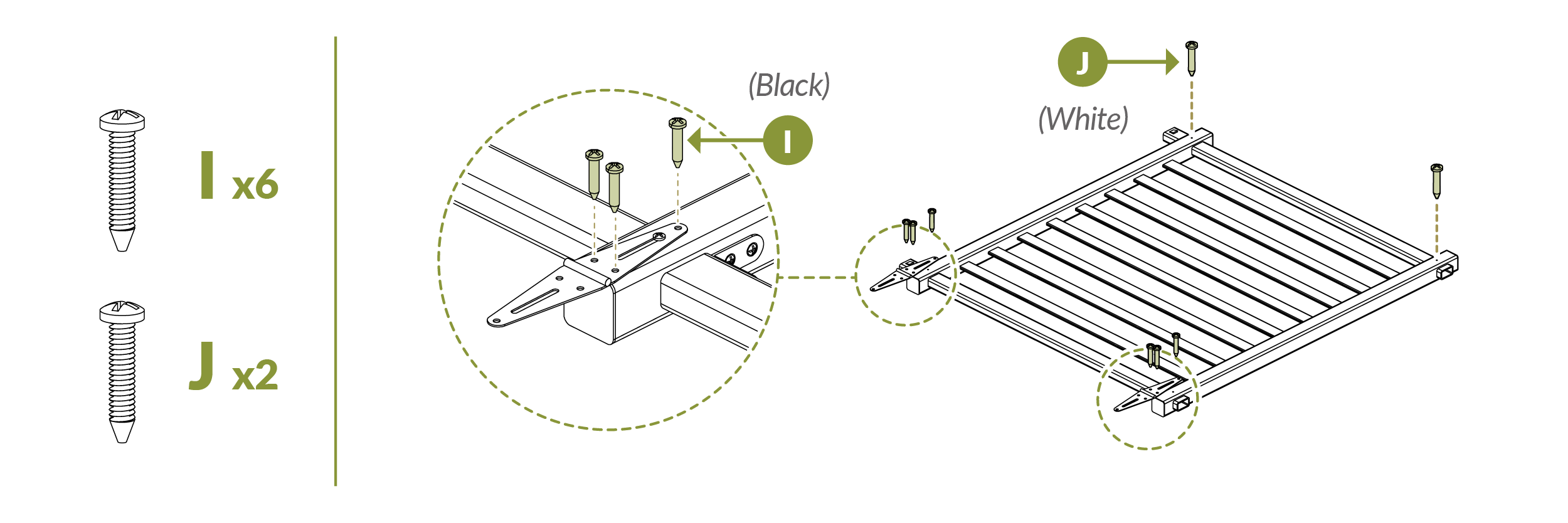

It’s easier to troubleshoot when things are not screwed together. After you assemble your gate correctly, please disassemble as necessary, and use the provided self-drilling stainless steel screws to permanently assemble the gate.

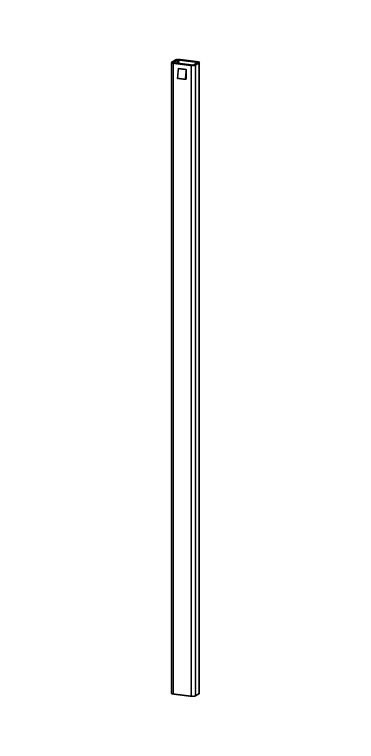

3 . Install your gate posts before your fence posts.

Your fence panels will be more forgiving for a custom fit than your gate. Position and install your gate posts before you do anything else.

4 . Do not hang your gate system off a single non-supported post.

Your gate will perform better and last longer if your hinge post is connected to a panel of fence that is connected to another post. This way, the weight strain will be transferred onto two posts versus just one. Installing fence panels on both sides of your gate is ideal in all situations. If this is not possible because of space restrictions, please contact us for alternative solutions.

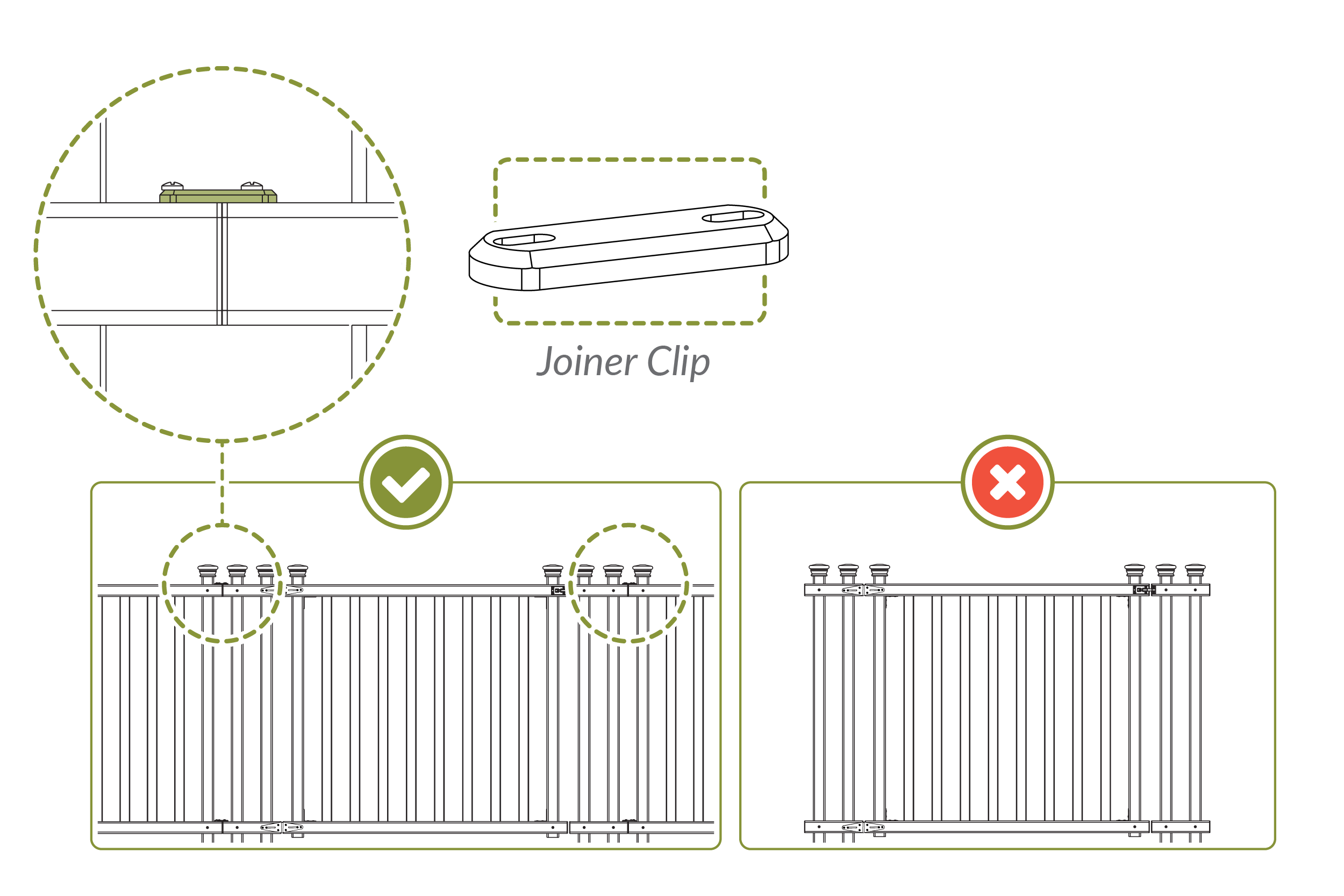

ZP19038 How to Use Joiner Clip
