General Information

Important Safety Notes:

• Check the inside of the larger pieces in your box for other materials packed inside.
• When assembling components, place on a non-abrasive surface (i.e., shipping box) to avoid scratching.
• We recommend an area approximately 5’ x 8’ for unobstructed assembly.
• You should not need to use excessive force when assembling components.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is happy to help.

• Website: https://parts.nychbrands.com
• Email: support@zippity-outdoor.com
• Phone: 704-892-5222 or 877-234-6196

Customer service agents are available 8am–5pm EST, Monday–Friday.

For Quick Assistance:

• Have reference item number ZP19062
• Provide the specific part name
• Include the batch lot number

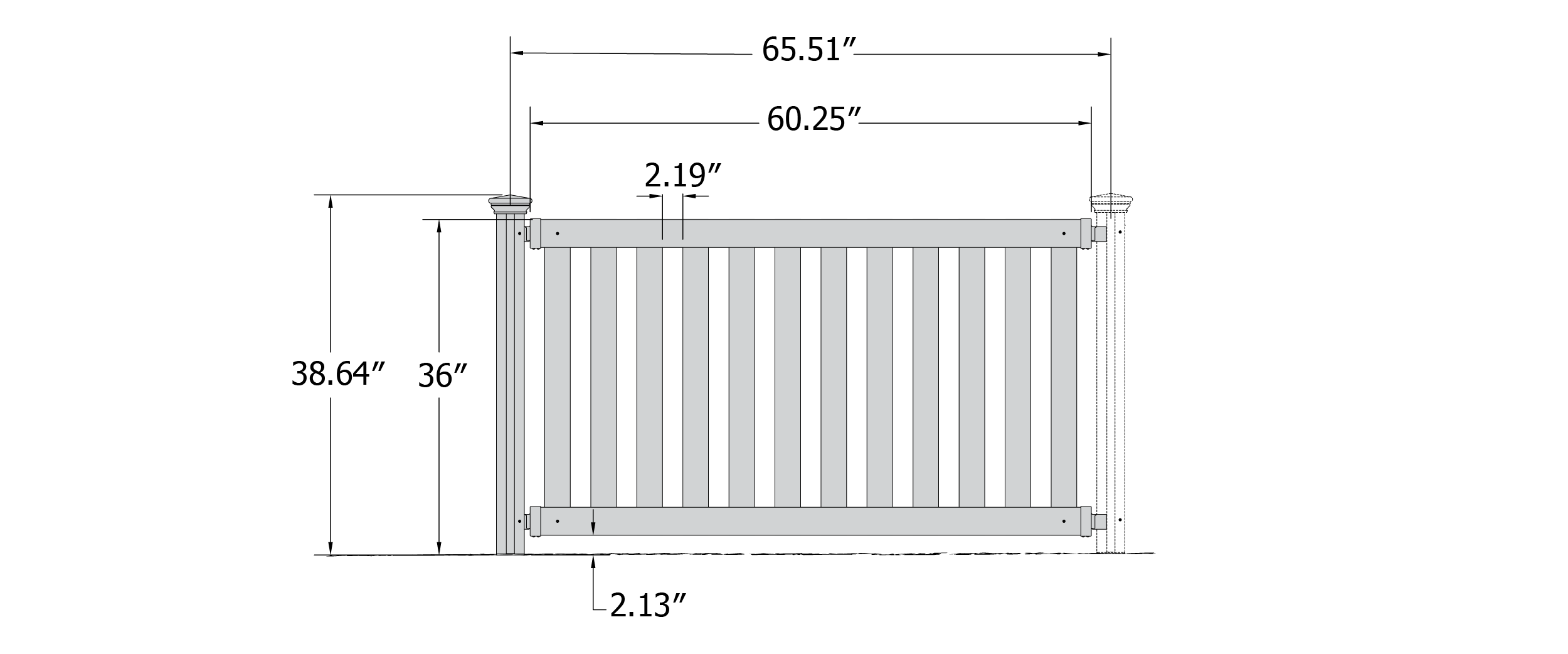

Detailed Dimensions & Specifications

Product Specifications:

• Overall width: 65.51"
• Inside width: 60.25"
• Post width: 3"
• Overall height: 38.64"
• Panel height: 36"
• Distance between pickets: 2.19"

Power Drill and Drill Bit

Required for a smoother installation experience.

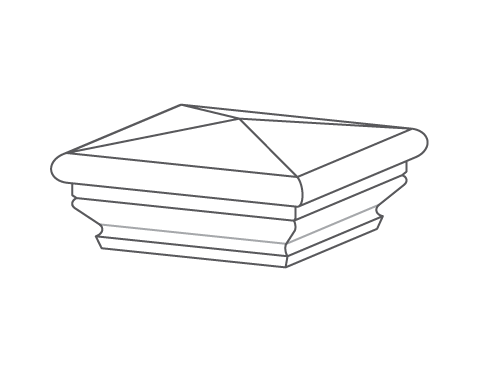

A. Post Cap (1)

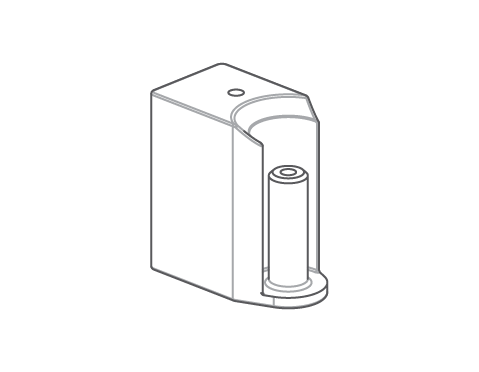

B. Post Hinge Piece (4)

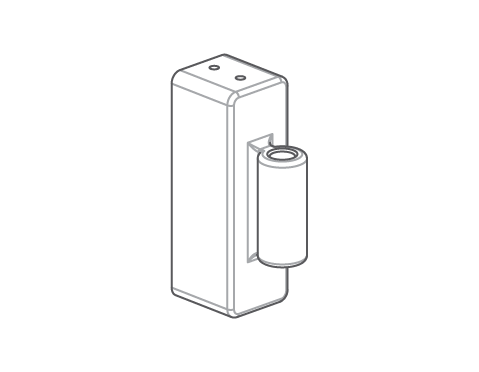

C. Rail Hinge Piece (4)

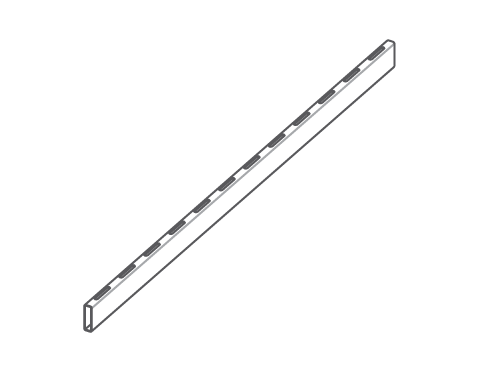

D. Horizontal Rail (2)

7/8” x 3” x 60”

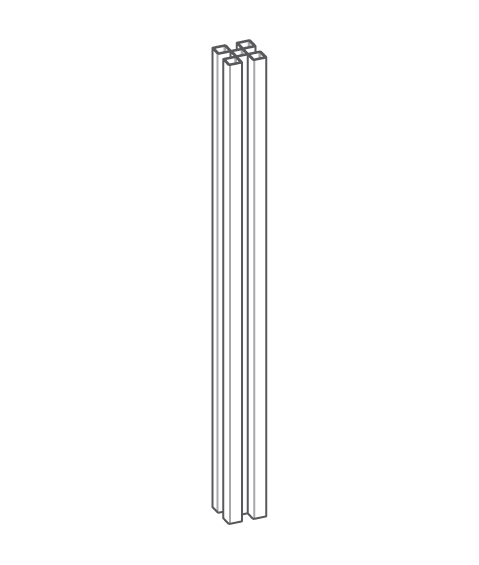

E. Post (1)

3” x 3” x 37 5/8”

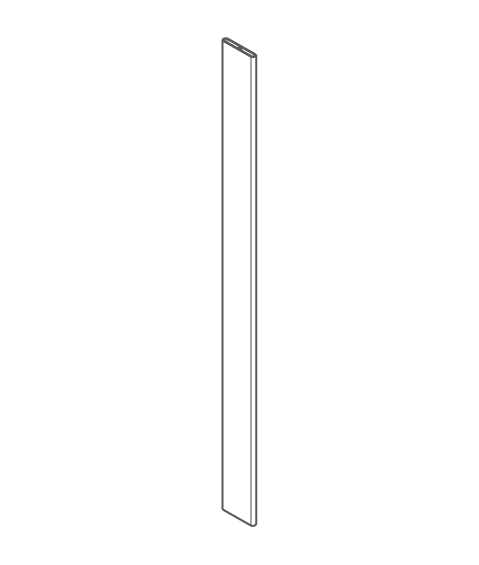

F. Picket (12)

3/8” x 2 3/4” x 33 3/4”

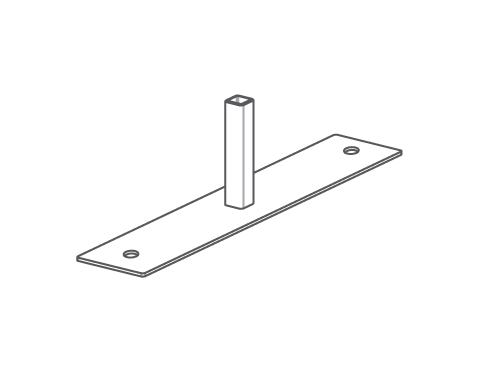

G. Portable Foot (1)

3” W x 16” L

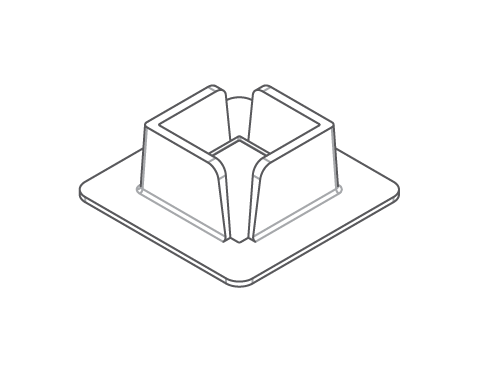

H. Post Insert (1)

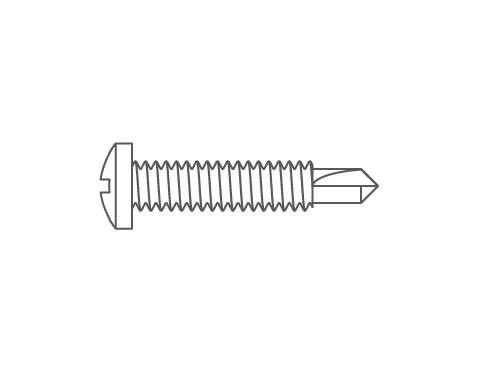

I. ¾” Self-Drilling Stainless Steel Screw (12)

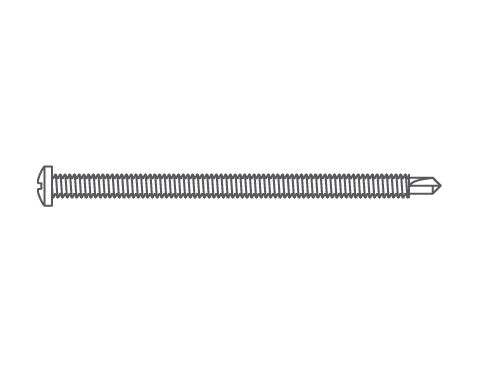

J. 2½” Self-Drilling Stainless Steel Screw (4)

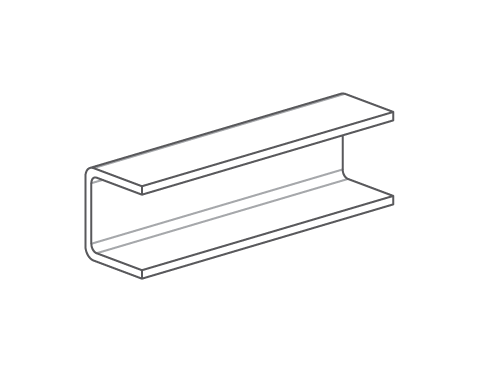

K. Spacer (1)

3/4” x 7/8” x 3”

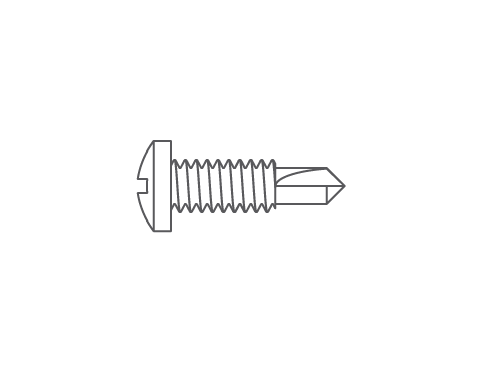

L. ½" Self-Drilling Stainless Steel Screw (2)

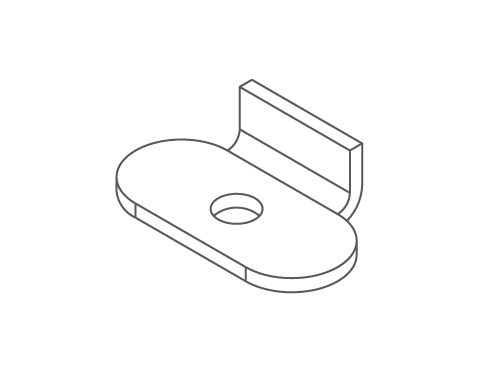

M. Panel Lock (2)

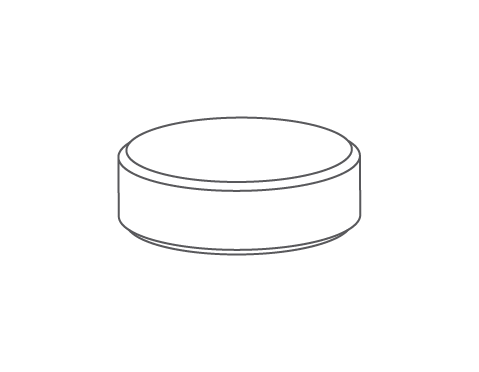

N. Silicone No-Scratch Pad (2)

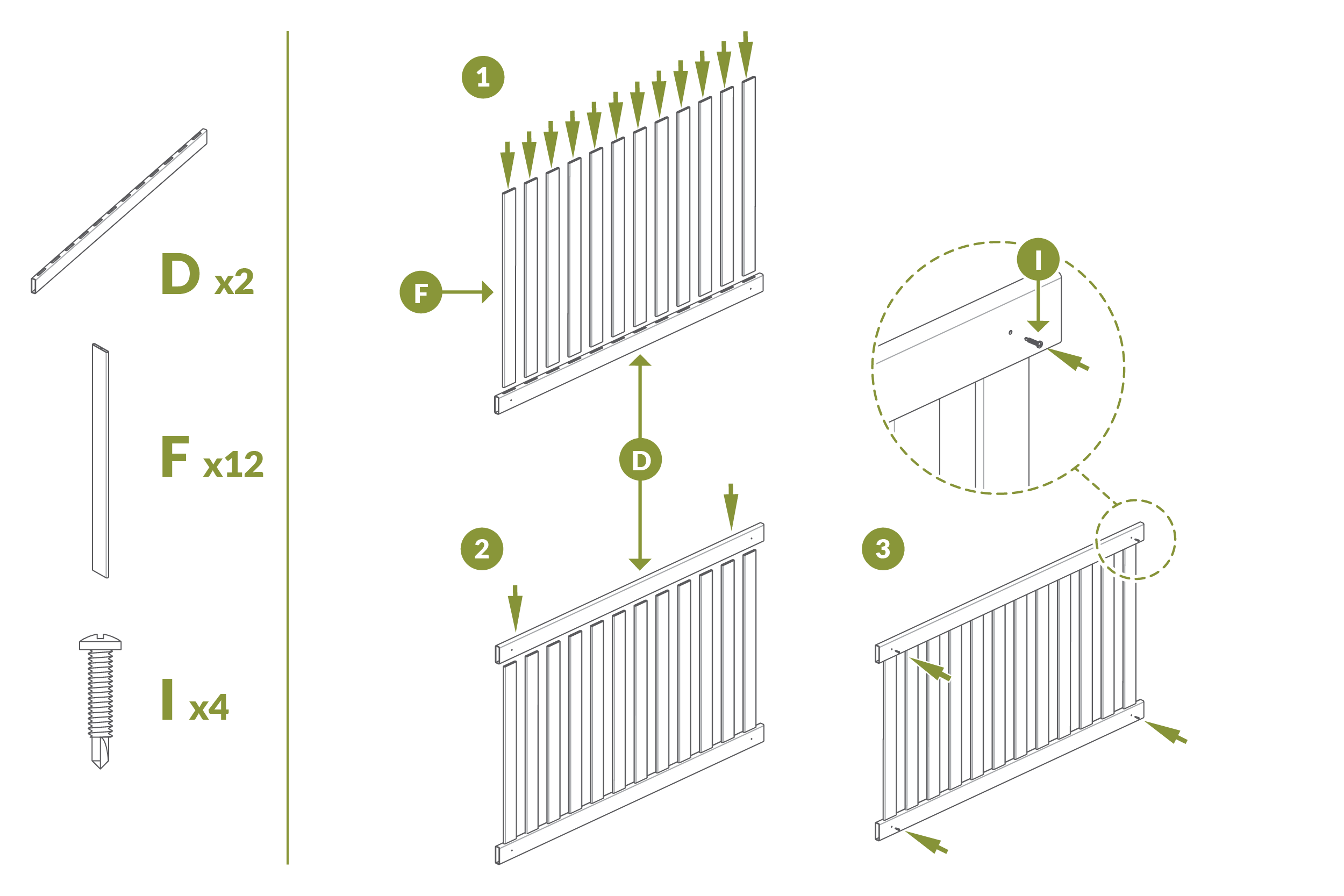

• Insert (12) Pickets (F) into a Horizontal Rail (D) until they bottom out inside the rail.

• Insert second Horizontal Rail (D) over the pickets.

• Drive (4) ¾" Self-Drilling Stainless Steel Screws (I) through the pre-drilled holes in the rails.

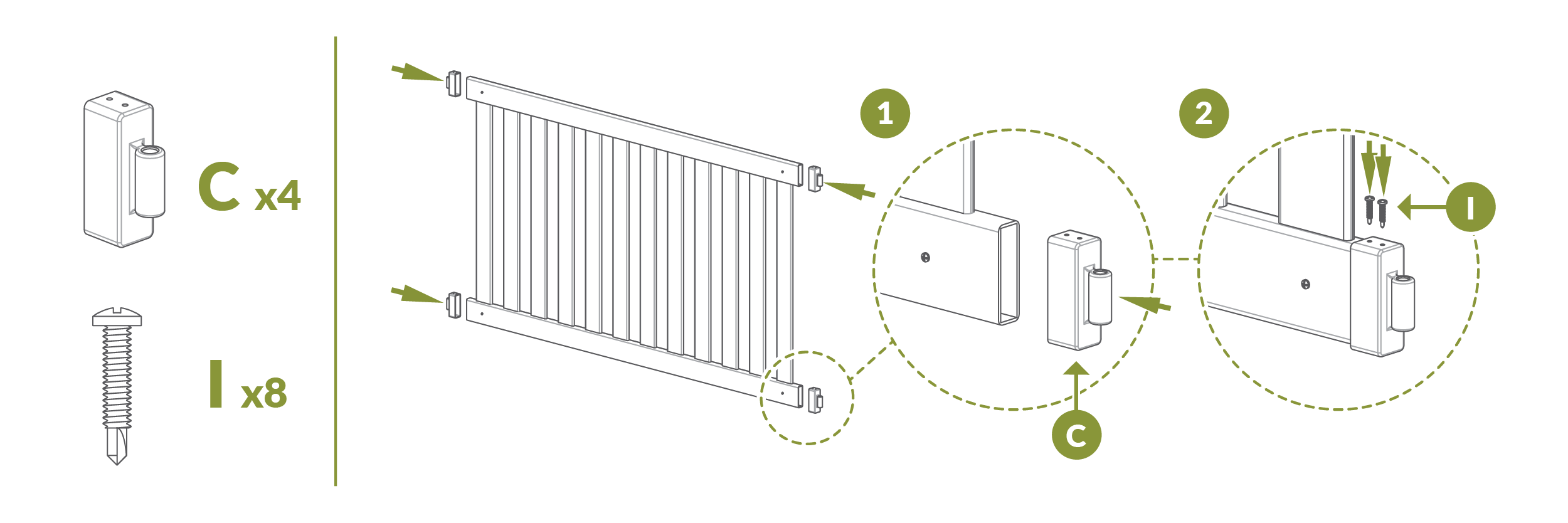

• Insert (4) Rail Hinge Pieces (C) over the ends of the horizontal rails.
• Drive (8) ¾" Self-Drilling Stainless Steel Screws (I) into the pre-drilled holes in each rail piece.

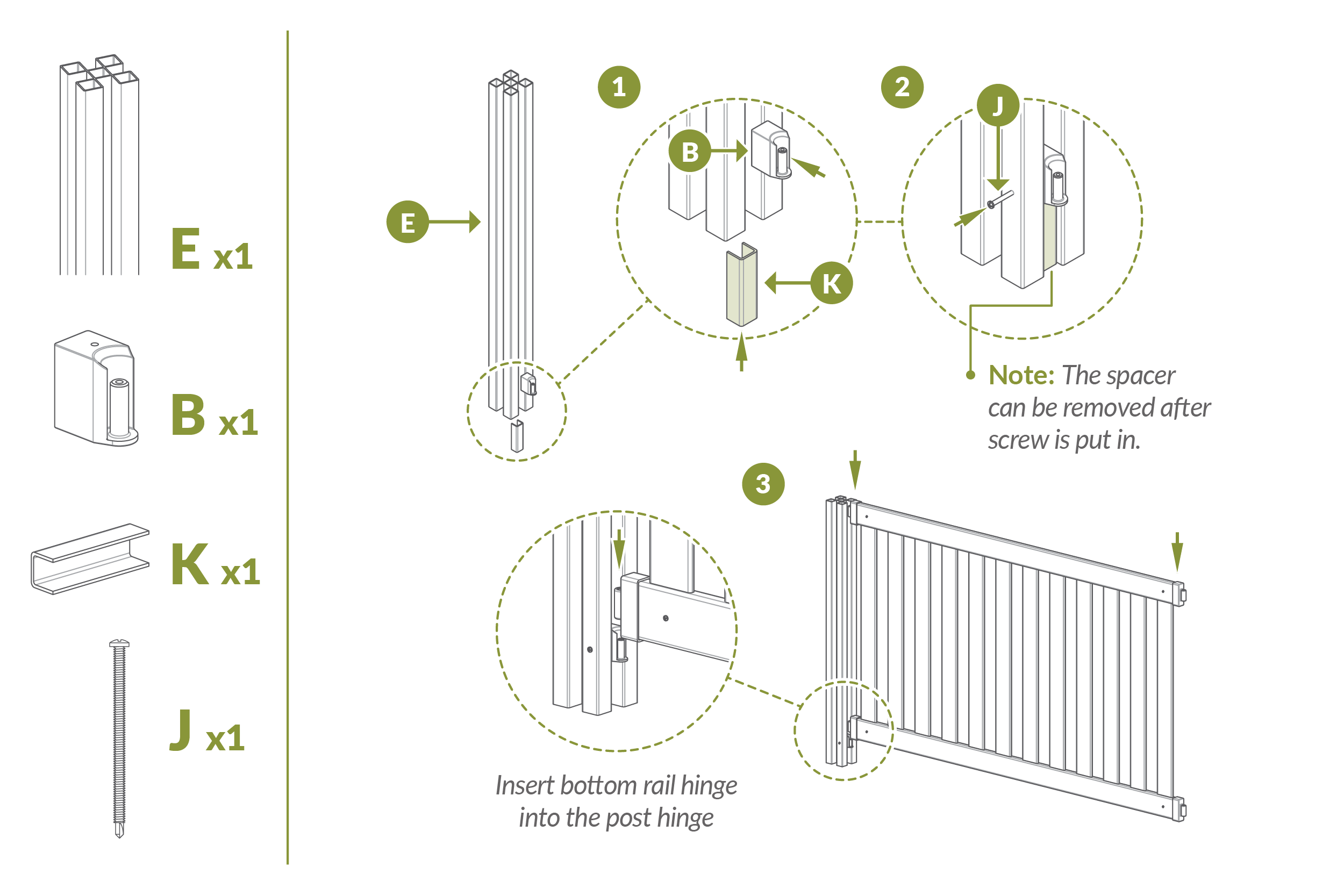

• Insert (1) Post Hinge Piece (B) into the groove in Post (E). Use Spacer (K) to set the hinge height.
• Ensure the hinge peg is facing upward, then secure using (1) 2½" Self-Drilling Stainless Steel Screw (J) into the edge of the post to secure the post hinge.

• Insert the bottom rail hinge piece of the fence panel into the post hinge piece, and lay the joined post and fence panel on a flat surface.

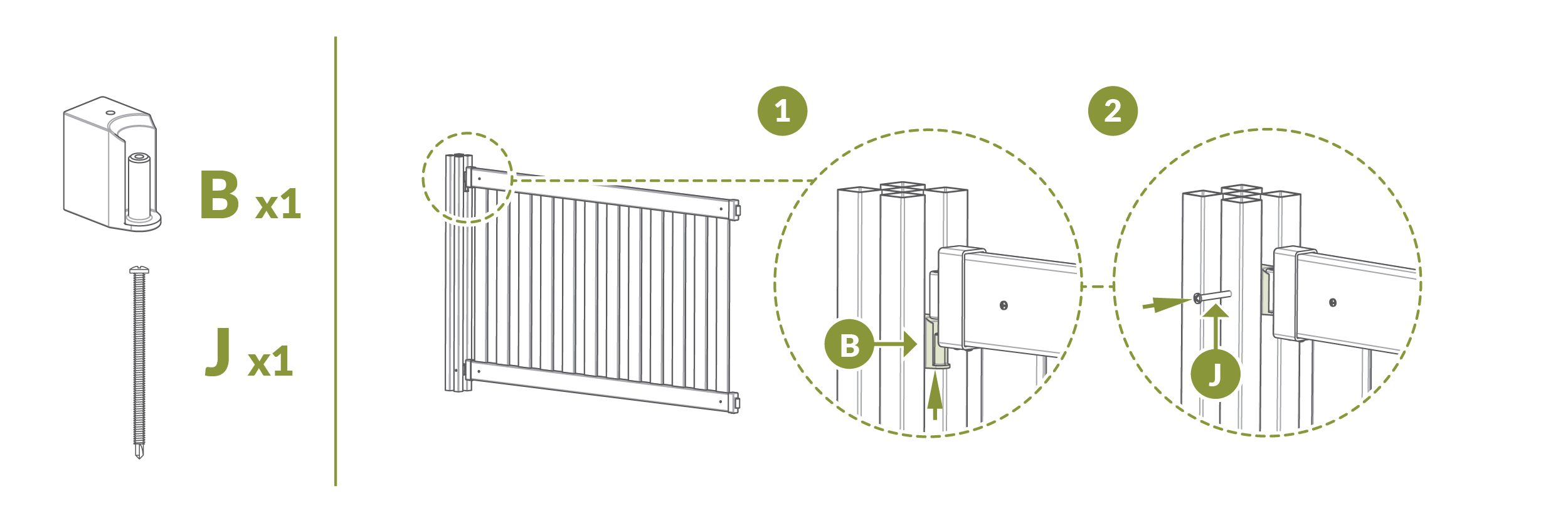

• Slide the remaining post hinge piece up the post channel to align with the top rail.
• Drive (1) 2½" Self-Drilling Stainless Steel Screw (J) into the edge of the post.

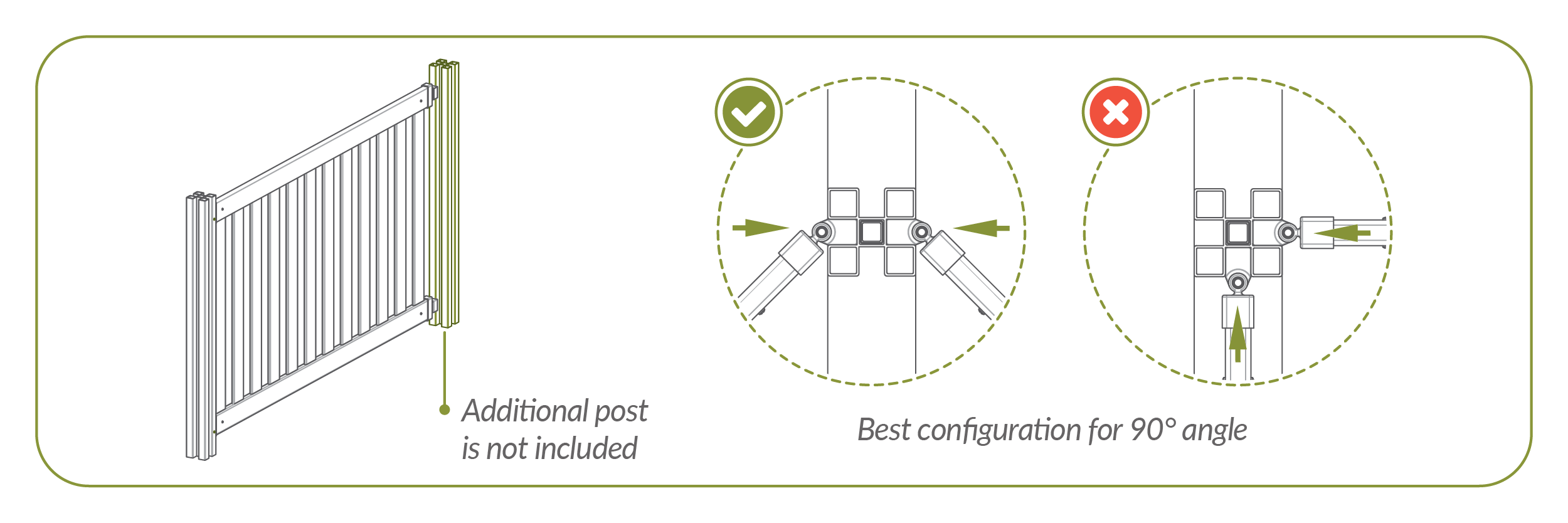

• Repeat steps 3.1–3.3 using a post from an additional panel or the Zippity Hinged Portable Finishing Post (ZP19063) to end the run.

Note: Please observe the best configuration for a 90 degree angle configuration above.

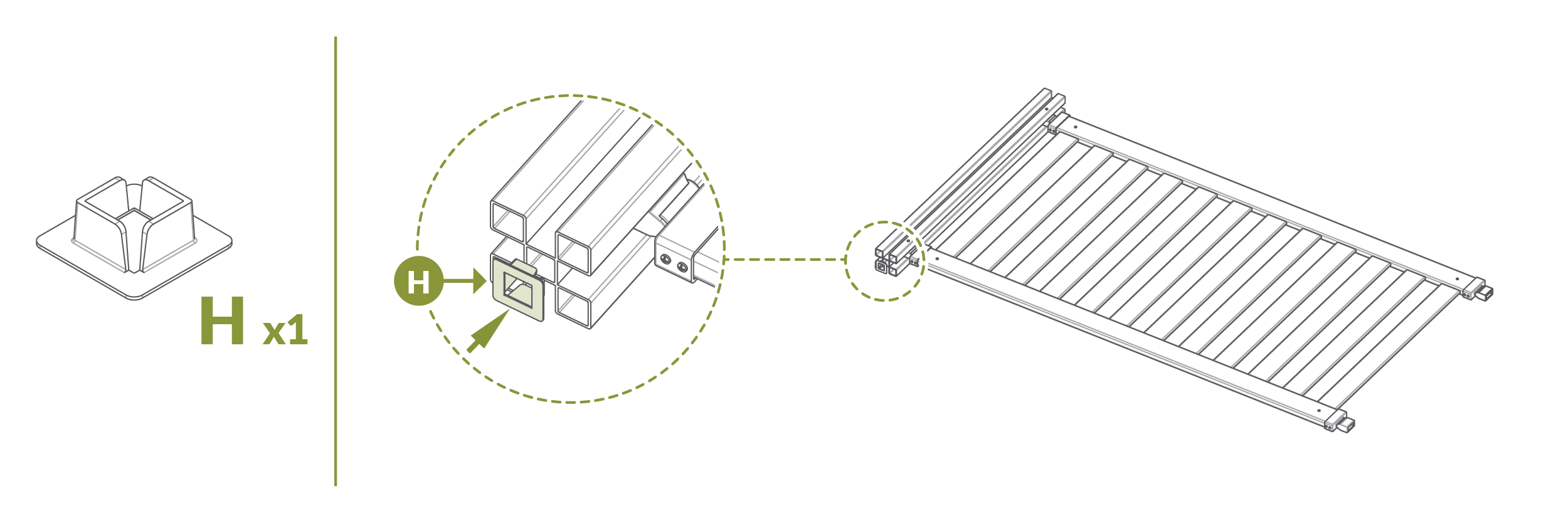

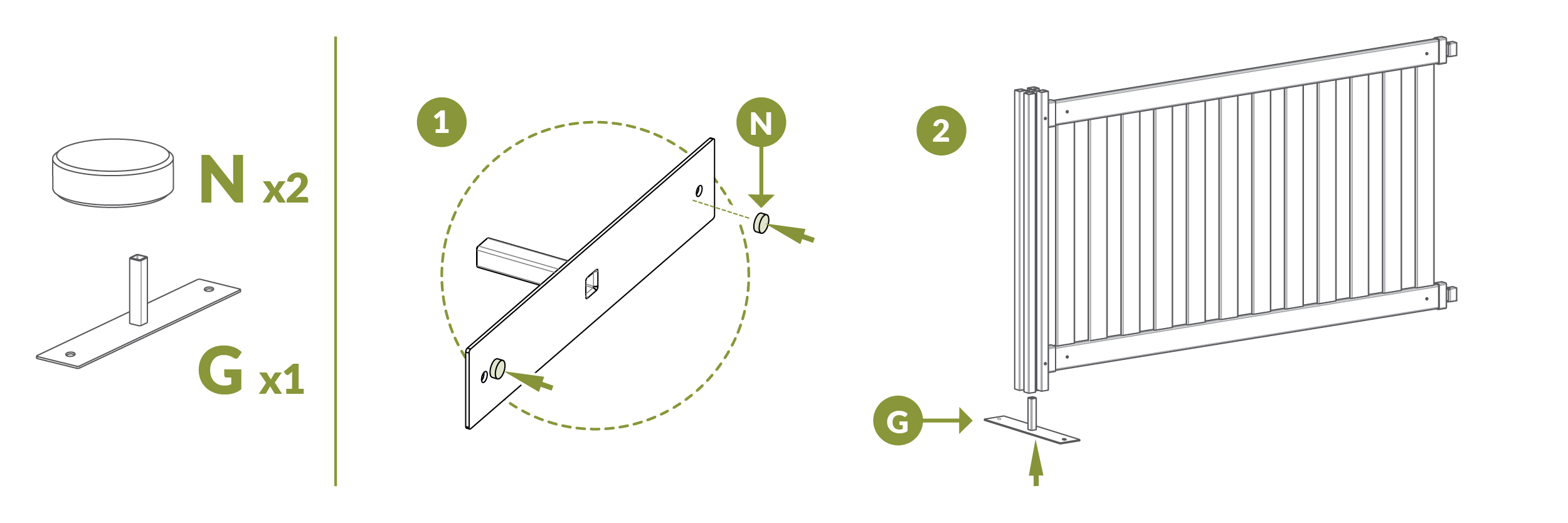

• Push Post Insert (H) into the center cavity at the bottom of the posts.

• Remove paper backing, and stick (2) Silicone No Scratch Pads (N) to the bottom of each foot.

• Insert Portable Foot (G) into the cavity at the bottom of the post.

Note: Inserting the portable feet may require some light force. Portable feet can be removed for storage.

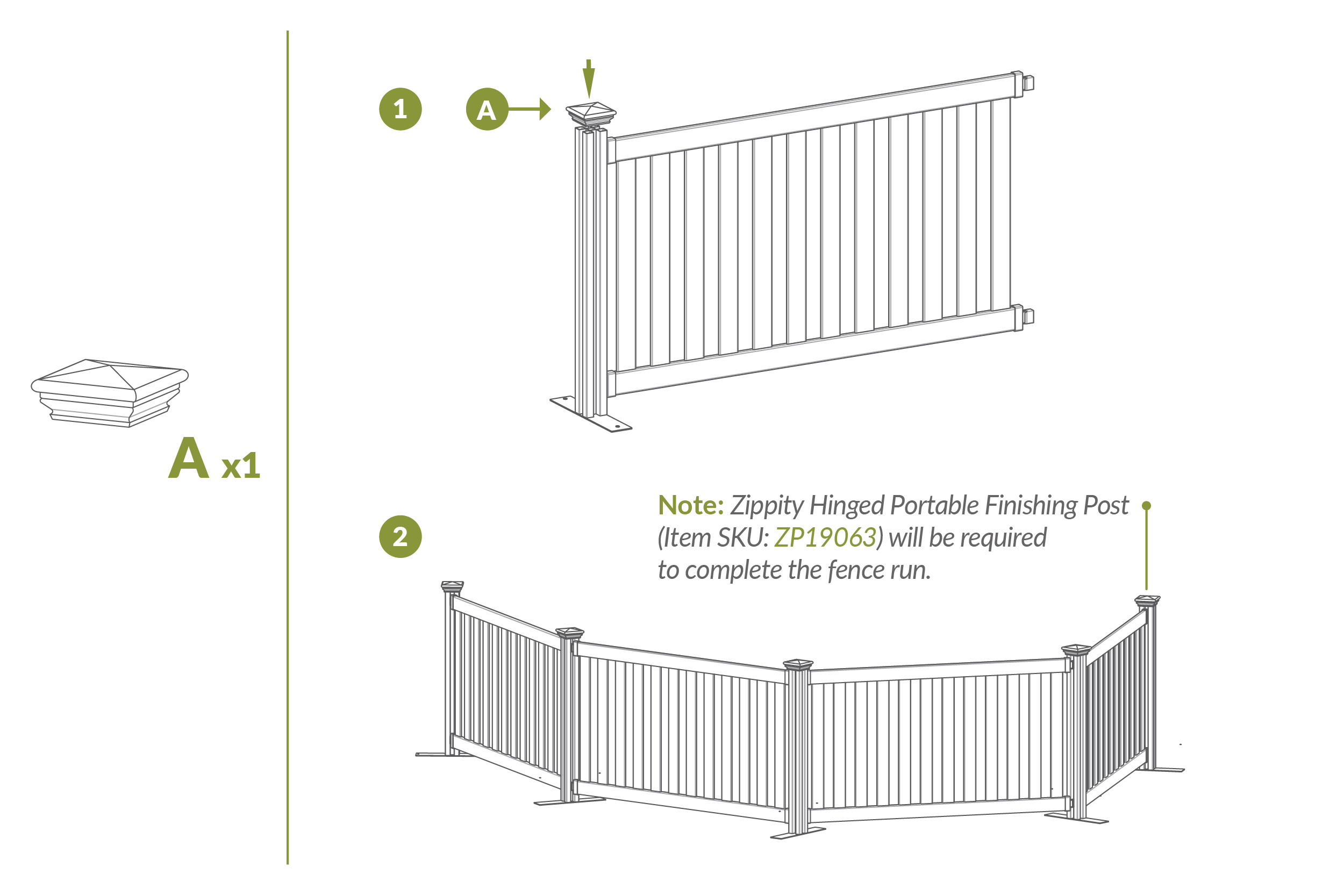

• Install the Post Cap (A) over the top of the post.

• Continue the fence run with any additional purchased panels. One finishing post will be required for the very end of your fence run.

Note: Purchase the Zippity Hinged Portable Finishing Post (Item SKU: ZP19063) to complete the fence run.

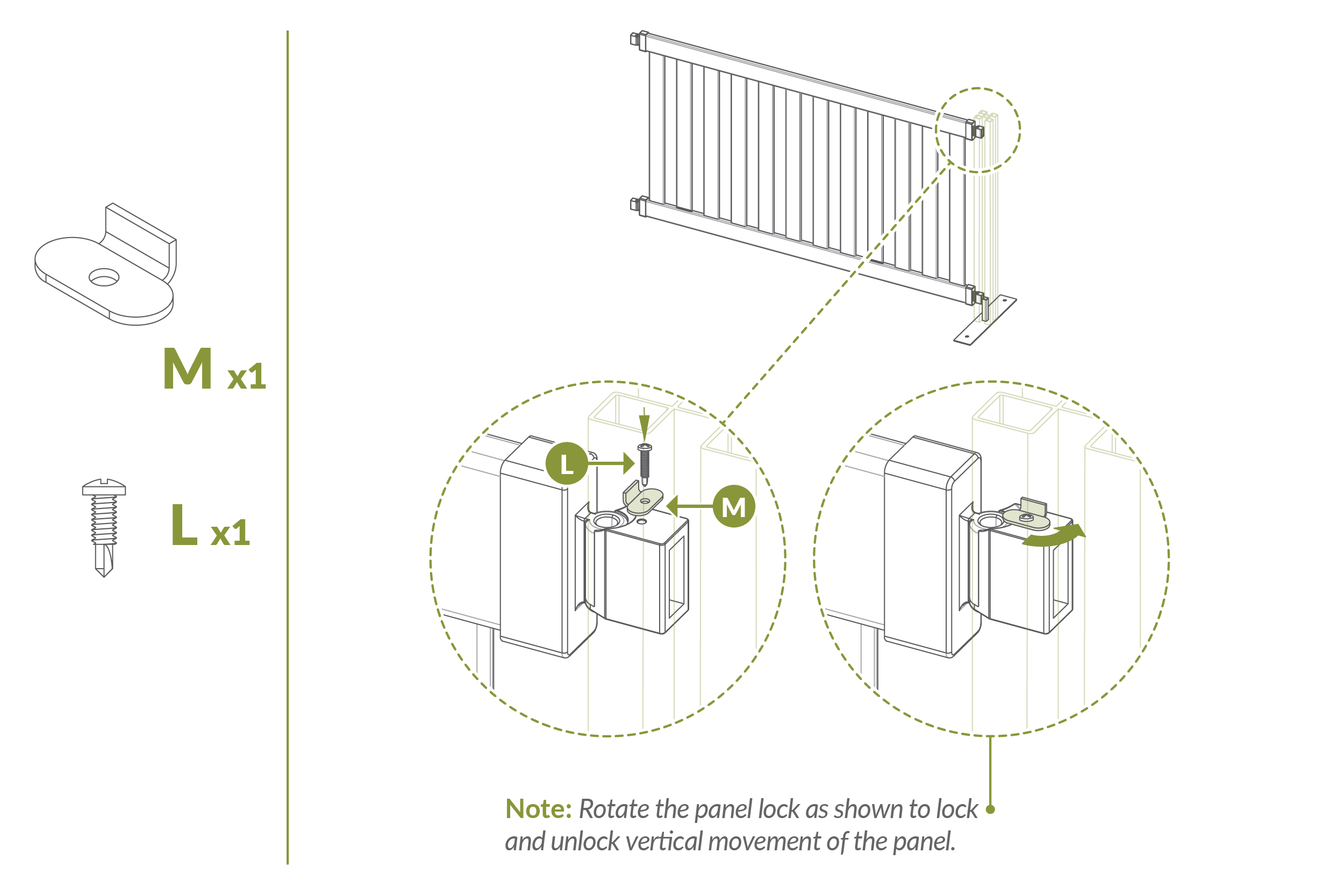

• Align the pre-drilled hole of the Panel Lock (M) with the pre-drilled hole in the top post hinge piece, and drive (1) ½" Self-Drilling Stainless Steel Screw (L) into the predrilled hole.

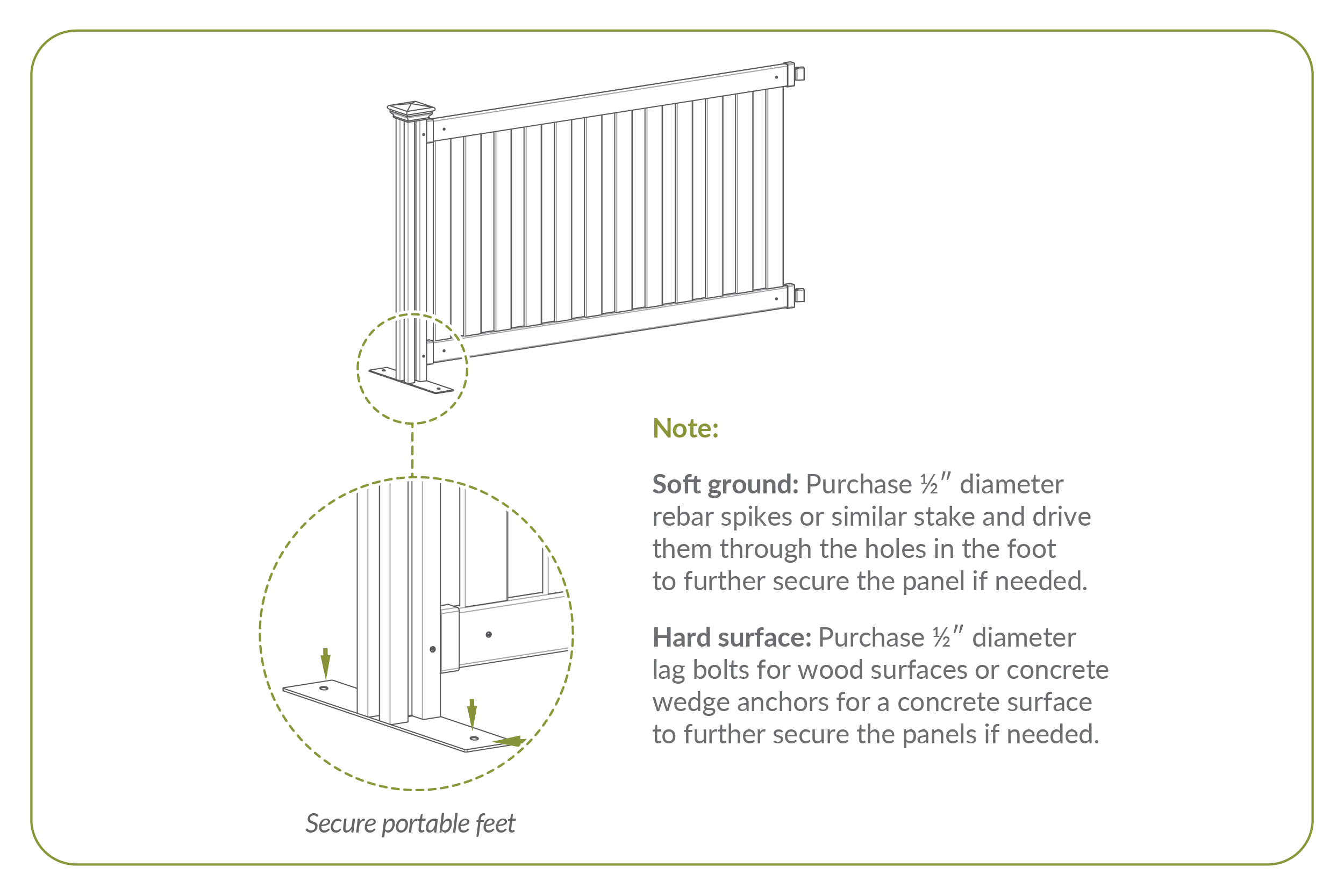

• Soft ground: Use ½" rebar spikes through the holes in the foot to secure the panel (not included).
• Hard surface: Use ½" lag bolts (wood) or concrete wedge anchors (concrete) to secure the panel (not included).
