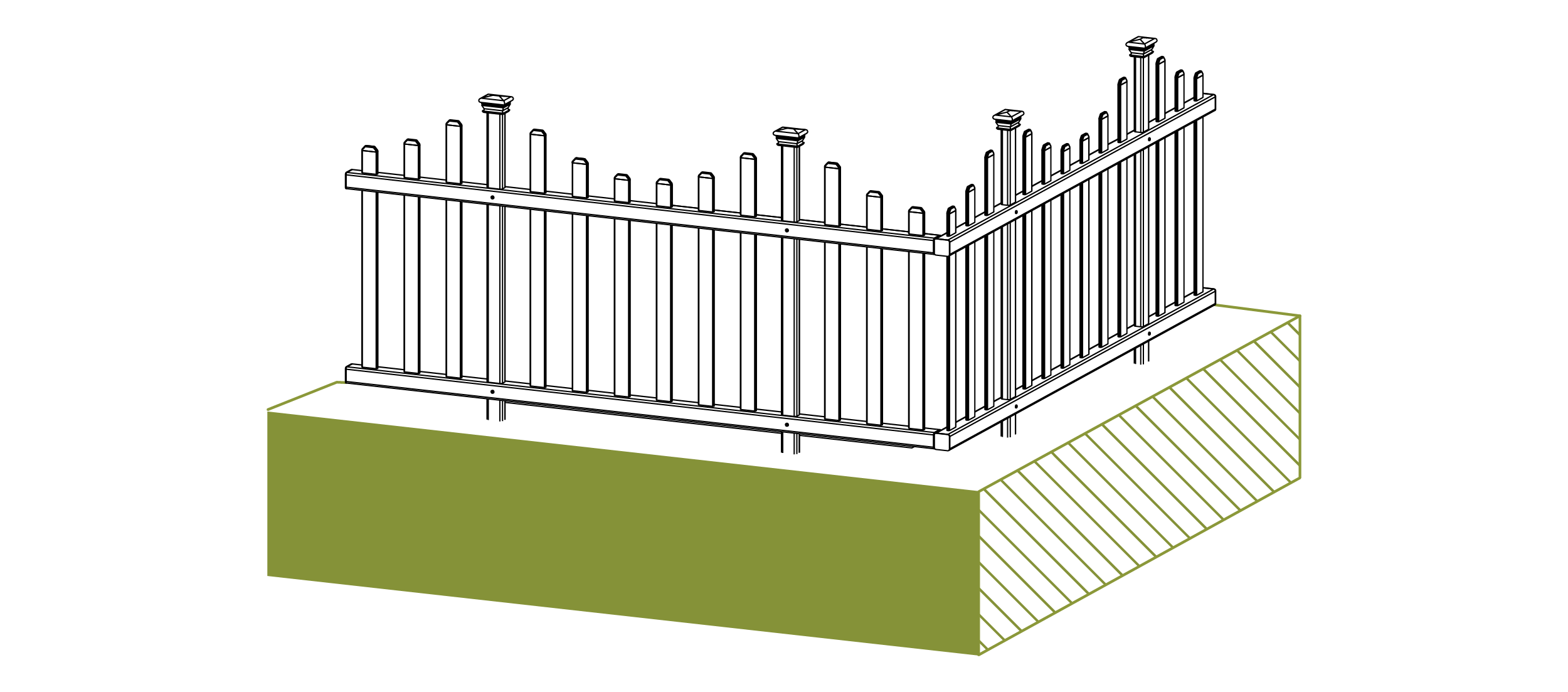

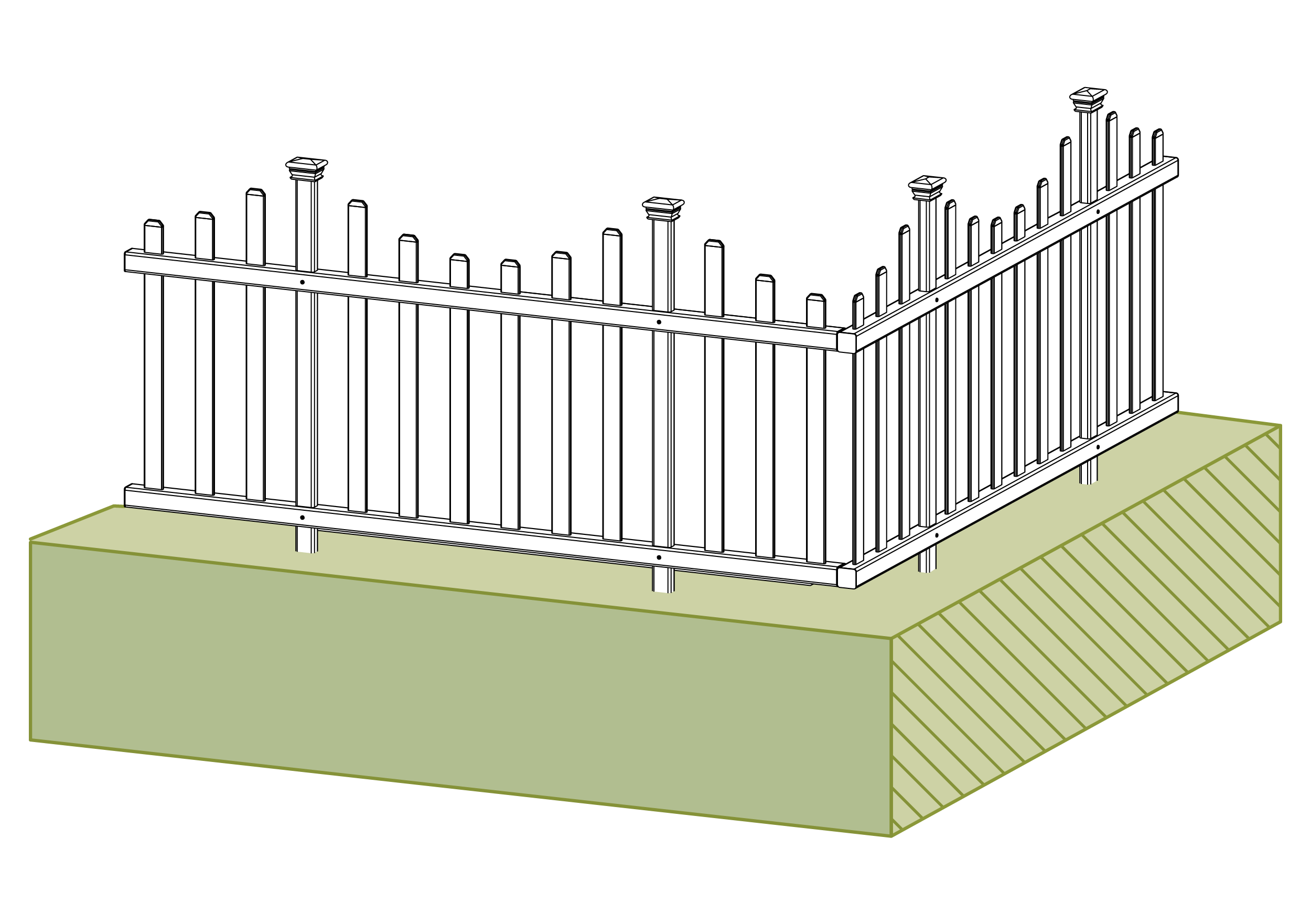

ZP19001 Madison Vinyl Fence Kit (2 Pack)
General Information
Important Safety Notes:
- Check the inside of the larger pieces in your box for other materials packed inside.
- Assemble on a soft, non-abrasive surface to avoid scratching.
- We recommend an area approximately 5’ x 8’ for unobstructed assembling.
- Do not overtighten screws; some force may be required to drive screws.
Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away. If a return is still necessary, it must be initiated with the retailer where the product was purchased.
Need Help or Replacement Parts?
If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is happy to help.
- Website: (https://parts.nychbrands.com)
- Email: support@zippity-outdoor.com
- Phone: 704-892-5222 or 877-234-6196
Customer service agents are available 9am–5pm EST, Monday–Friday.
For Quick Assistance:
- Have reference item number ZP19001
- Provide the specific part name or letter.
- Include the batch lot number found on the end of the box.
Product Specifications & Dimensions
Each kit contains 2 unassembled fence panels.
Lay Out Materials
A. Post Cap (4)
B. Post (4)
C. Top Rail (2)
D. Bottom Rail (2)
E. Pickets (24)
(x8) 1- ¼" x 1½" x 25⅛"
(x8) 2- ¼" x 1½" x 23"
(x8) 3- ¼" x 1½" x 21⅞"
F. Joiner Clip (4)
G. ¾" Self-Tapping Stainless Steel Screws (24)

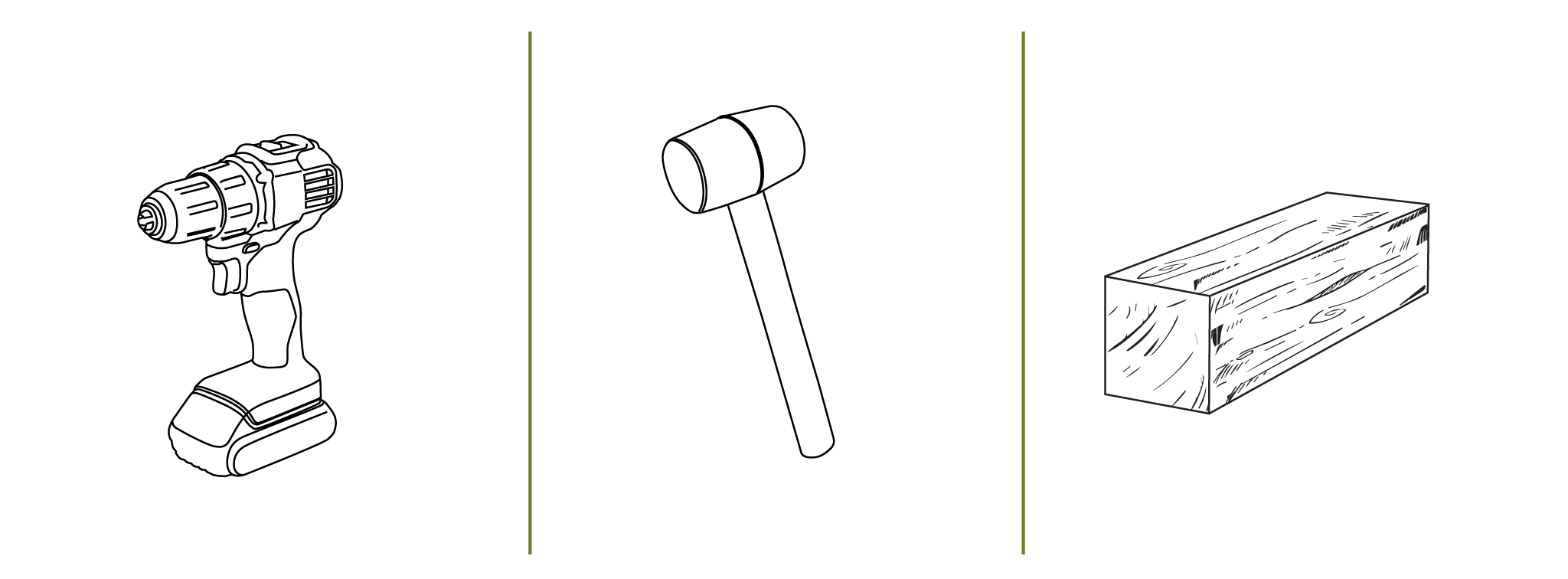

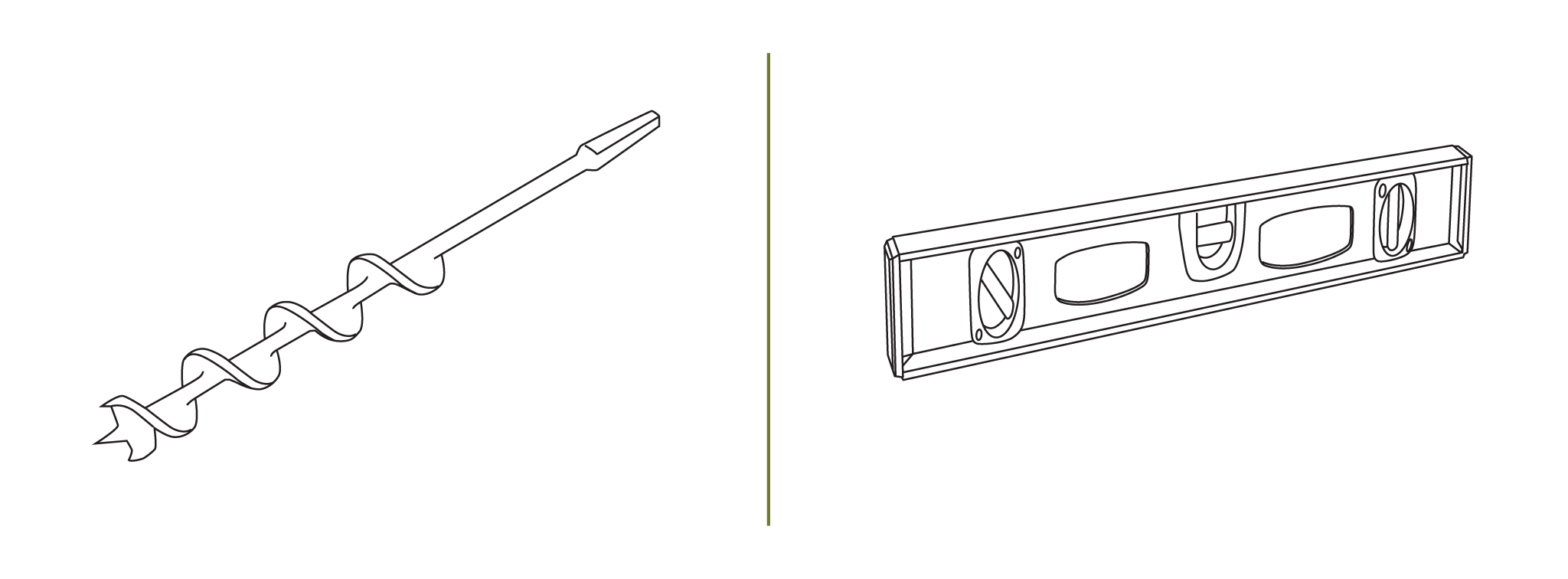

Recommended Tools (Not Included)
Drill (Phillips Bit)
Mallet
Wood Block
1¾" Tulip Auger
Level
Step 1
Step 2
- Post stakes should protrude from hole-free side of bottom rail.
Step 3
Step 4
- Pickets lock into place. To remove, gently insert a butter knife into the bottom rail and slowly pull up the picket.
Step 5
Important Note:
Do not install post caps (part A) until fence is fully installed, as this impedes next installation steps.
Step 6
- Attempt pushing the unit into the ground; continue reading for tips on hard ground.
- Click here for a Video Demonstration.
Step 7
- Tap posts using wood block for protection.
- Check straightness with level.
IF GROUND IS TOO HARD
- Loosen ground and soak with water.
- Alternatively, use a 1.5" tulip auger drill attachment.
Step 8
Step 9 Choose Desired Angle Before Joining Panels Together
Note: There are no pre-drilled holes for the joiner clips. This allows for installation at any angle.
Need Help?
- Email: support@zippity-outdoor.com
- Phone: 704-892-5222 or 877-234-6196
- Text: 980-580-6508
