Newberry Wood Fence Kit

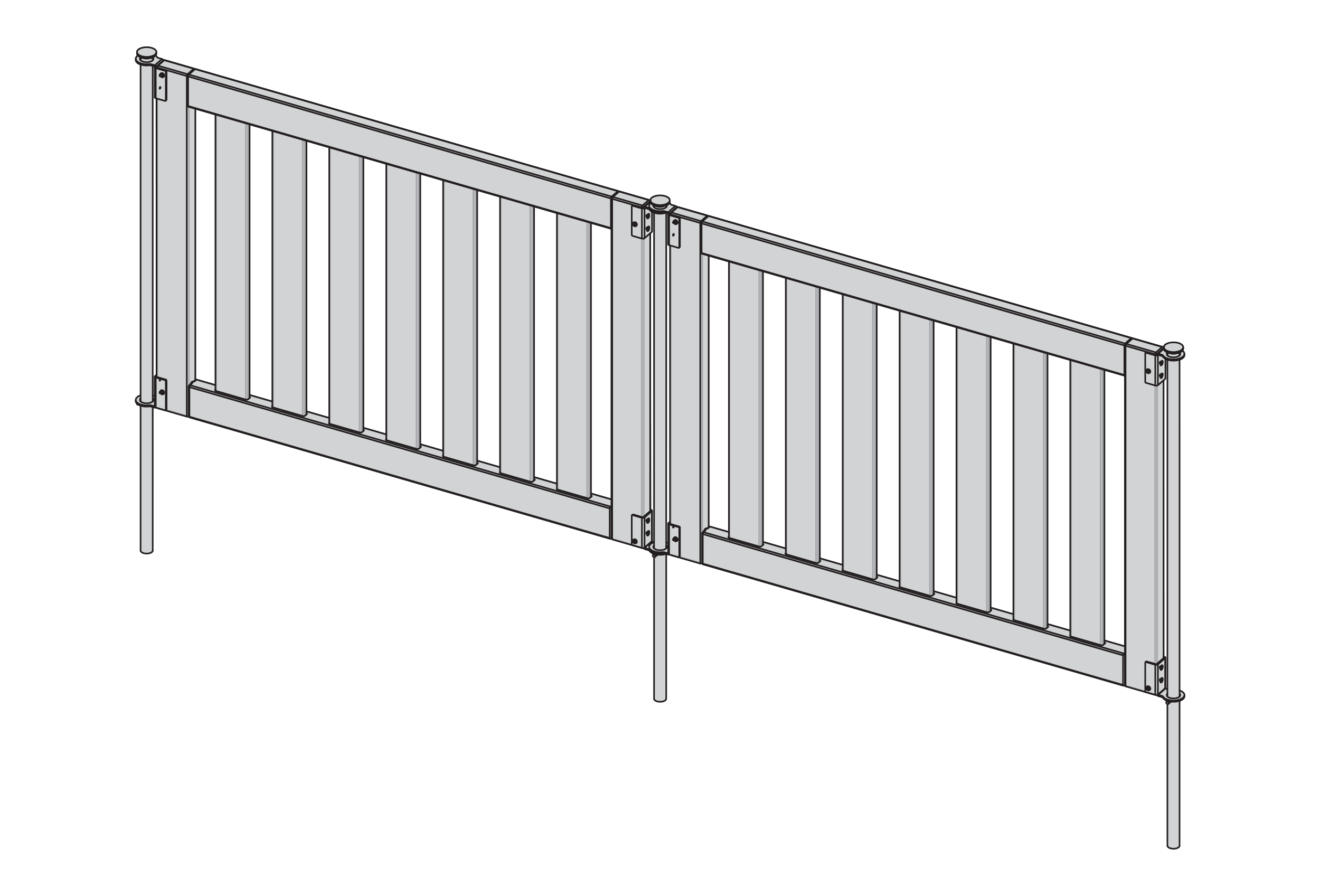

ZP19075 Cover Image

ZP19075 Assembly Instructions

Approximate assembly time for 60min

Click here for an installation video

Introduction

General Information

Important Safety Notes:

Check the inside of the larger pieces in your box for other materials packed inside.
When assembling components, place on a non-abrasive surface (i.e. shipping box) to avoid scratching.
We recommend an area approximately 5’ x 8’ for unobstructed assembling.
You should not need to use excessive force when assembling components.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is happy to help.

Website: https://parts.nychbrands.com
Email: support@zippity-outdoor.com
Phone: 704-892-5222 or 877-234-6196

Customer service agents are available 9am–5pm EST, Monday–Friday.

For Quick Assistance:

Have reference item number ZP19075
Provide the specific part name
Include the batch lot number found on the end of the box

Product Specifications

Detailed Dimensions & Specifications

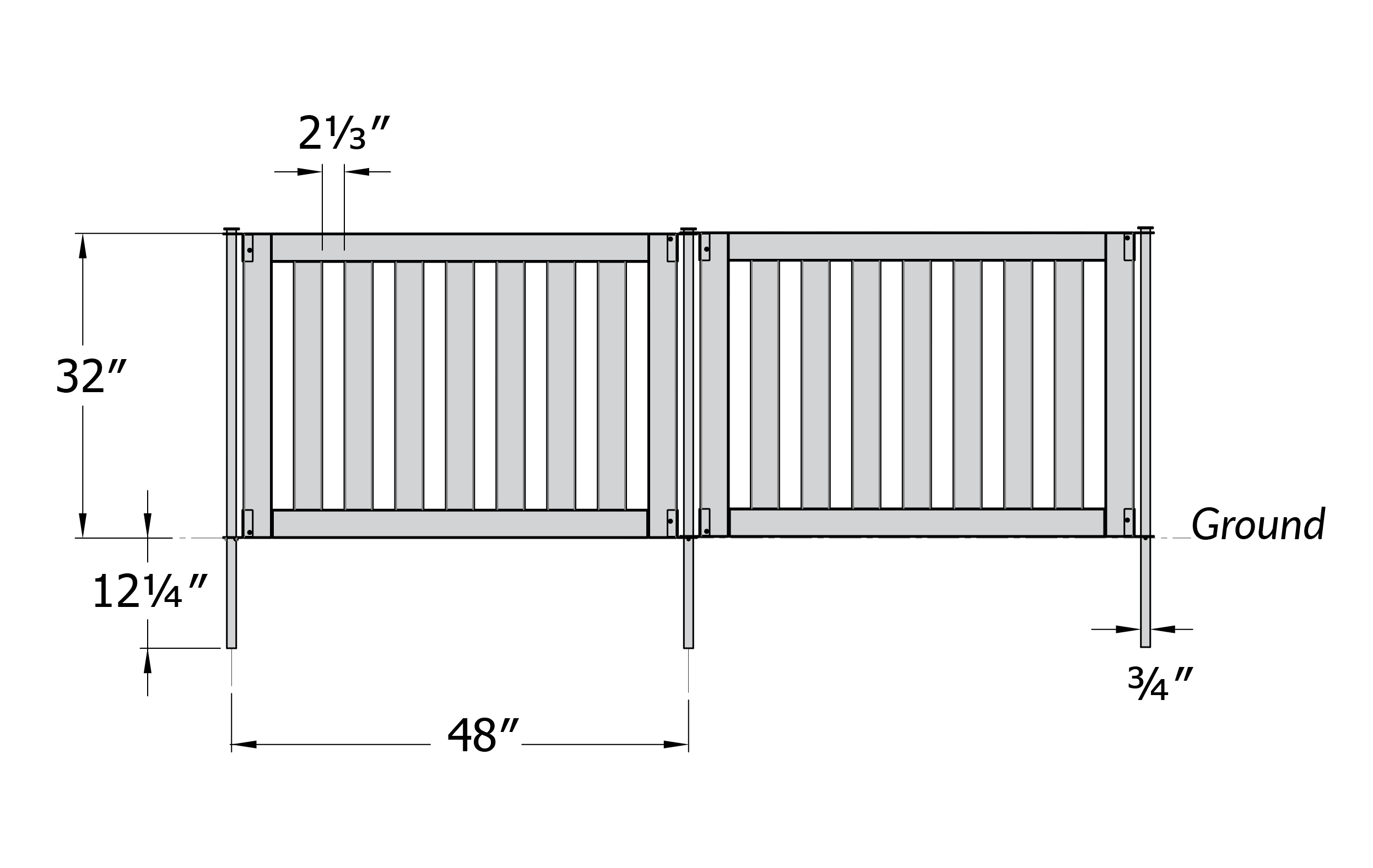

ZP19075 Detailed dimensions & line drawings

Product Specifications:

Overall panel width: 48"
Overall panel height: 32"
Ground stake length: 44¾"
Distance between pickets: 2¹⁄₃"

Step 1: Part Identification

A — Bottom Rail (2)

ZP19075 Part A (2)

1" x 3" x 40 ⅔" (rail with drainage holes)

B — Top Rail (2)

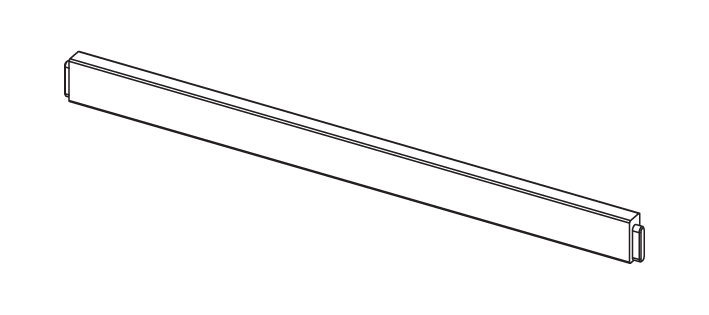

ZP19075 Part B (2)

1" x 3" x 40 ⅔"

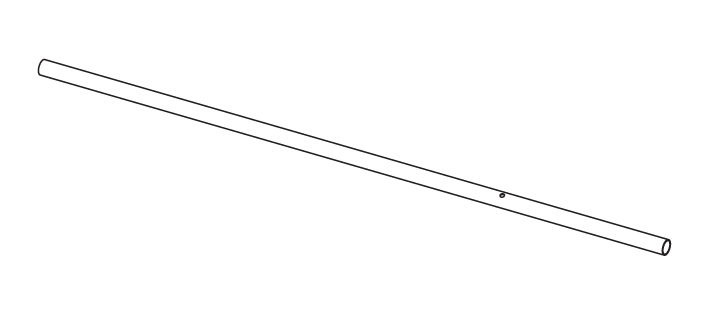

C — Ground Stake (3)

ZP19075 Part C (3)

¾" diameter x 44 ¾"

D — End Post (4)

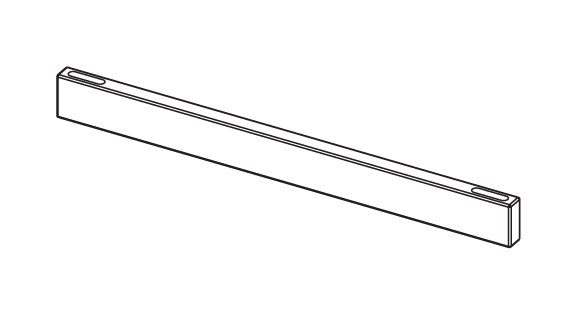

ZP19075 Part D End Post (4)

1" x 3" x 32"

E — Slat (14)

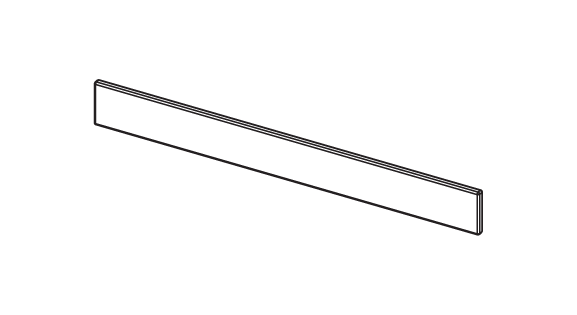

ZP19075 Part E Slat (14)

½" x 3" x 27 ⅛"

F — Stake Bracket (8)

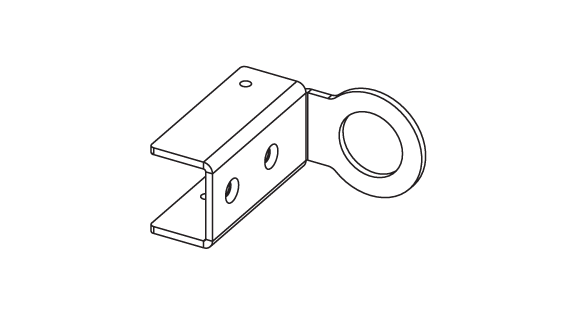

ZP19075 Part F Stake Bracket (8 pcs)

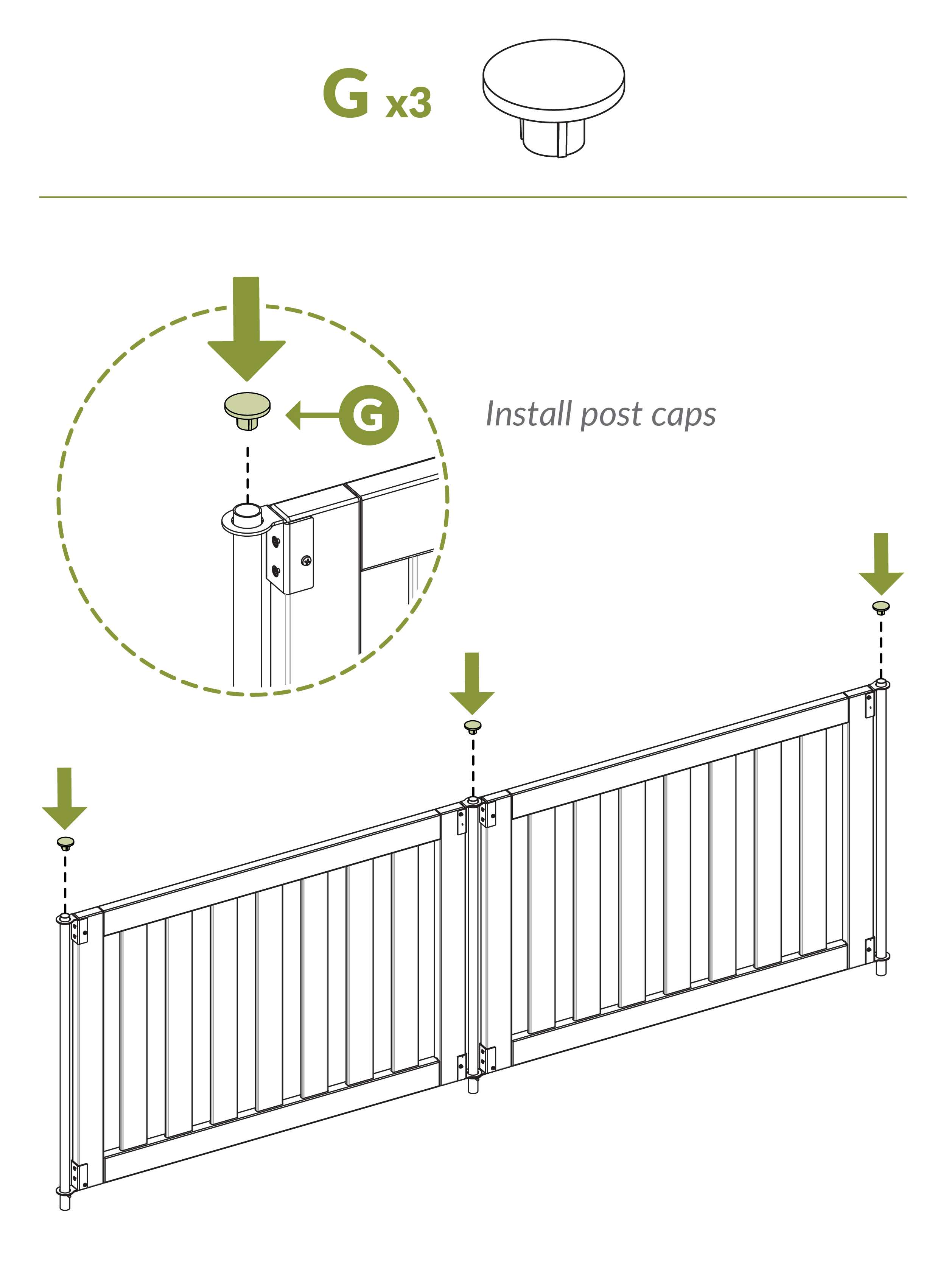

G — Stake Cap (3)

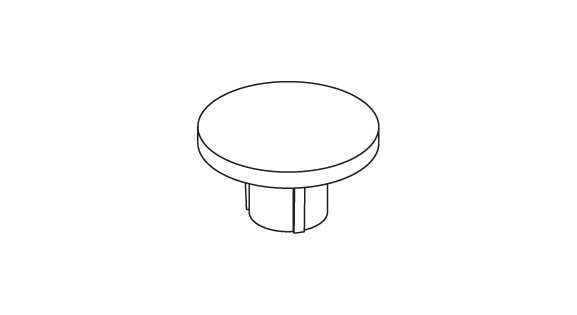

ZP19075 Part G Stake Cap (3 pcs)

H — Stake Peg (3)

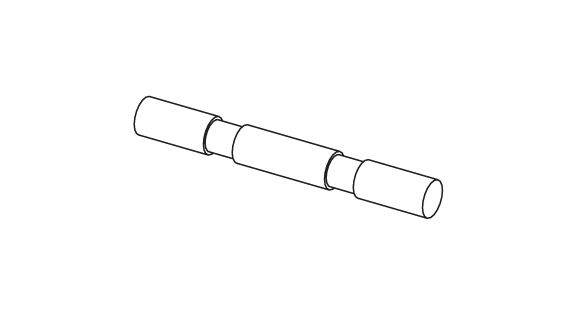

ZP19075 Part H Stake Peg (3)

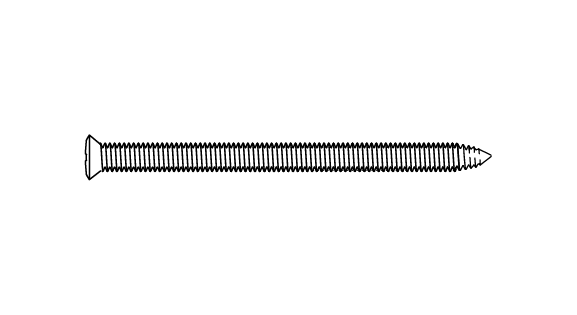

I — 4" Self-Tapping Stainless Steel Screw (16)

ZP19075 Part I Stainless Screws 4" (16)

J — ⅝" Self-Tapping Stainless Steel Screw (16)

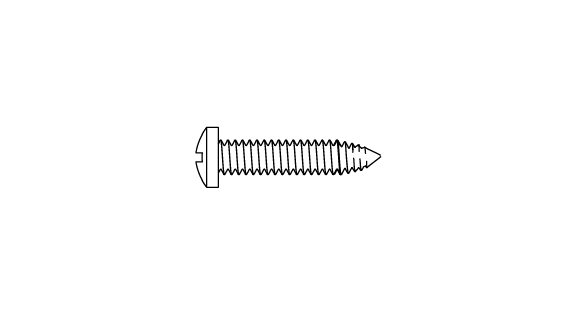

ZP19075 Part J 1" Screw (16)

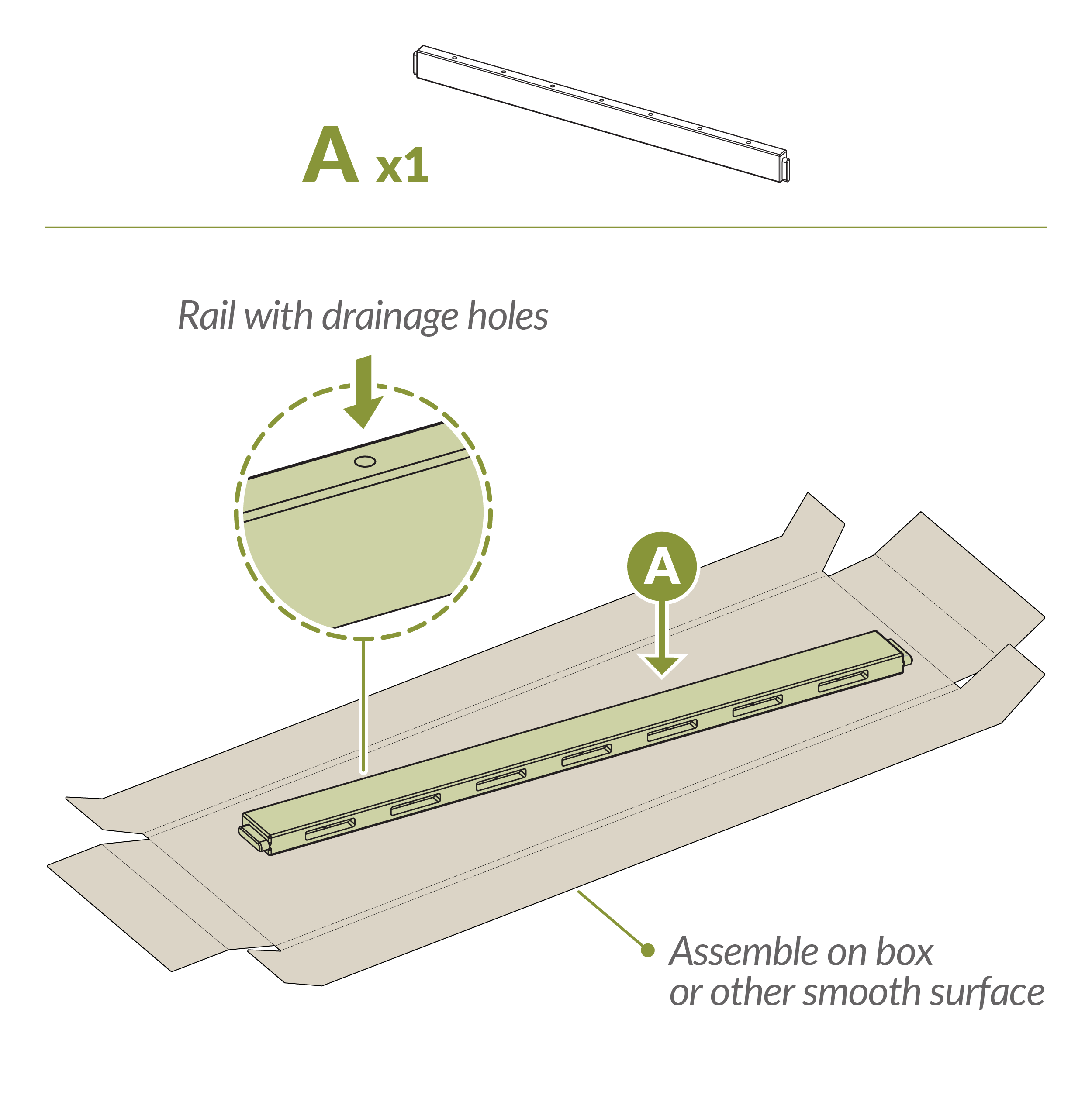

Step 1: Assembly Steps

Step 1 Lay out rail

Step 2

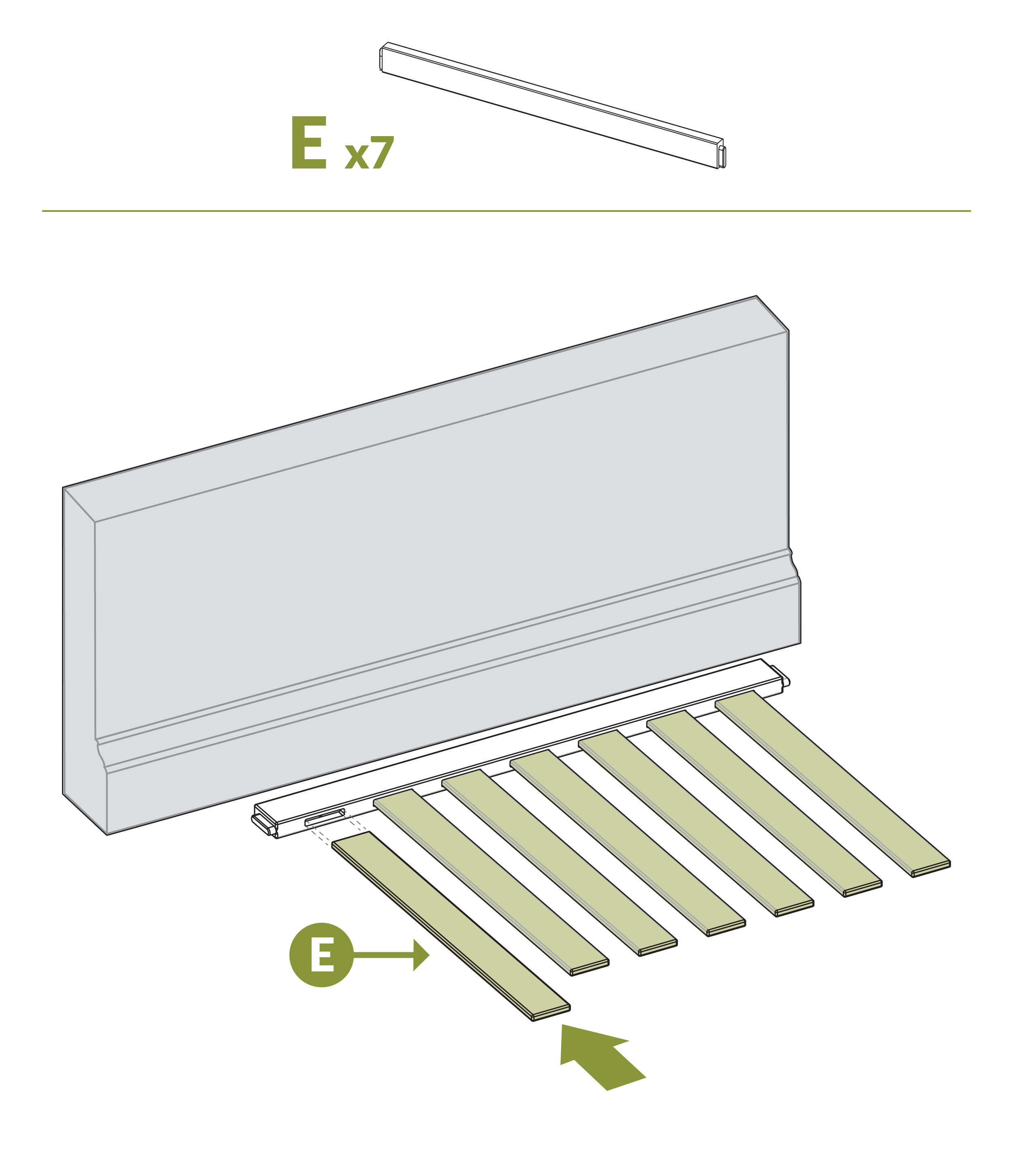

Step 2 Push post up to wall to hold slats in place

Push Bottom Rail (A) up against a wall for support
Insert (7) Slats (E) into Bottom Rail (A)

Step 3

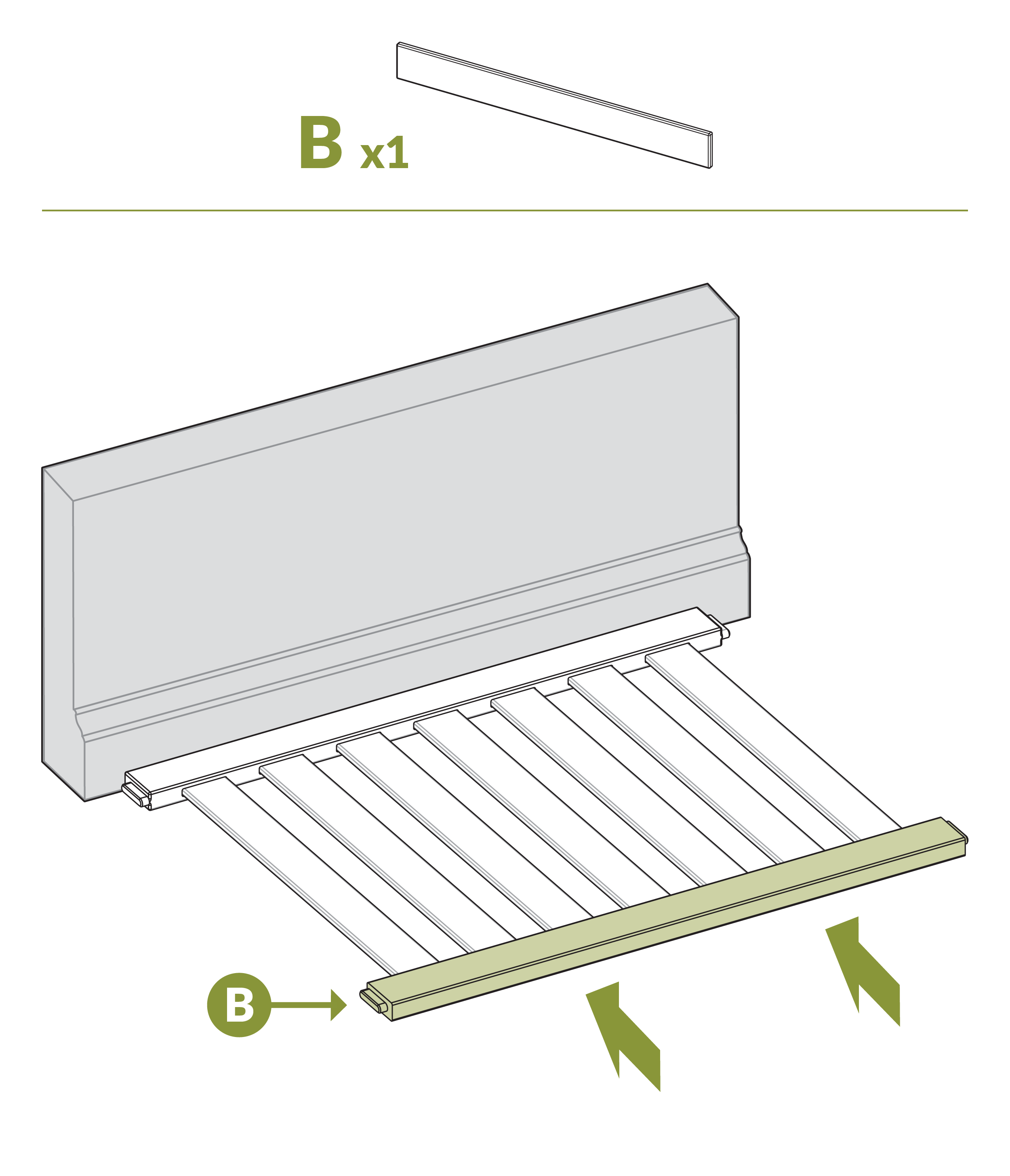

Step 3 put top rail on

Insert Top Rail (B) over Slats (E).

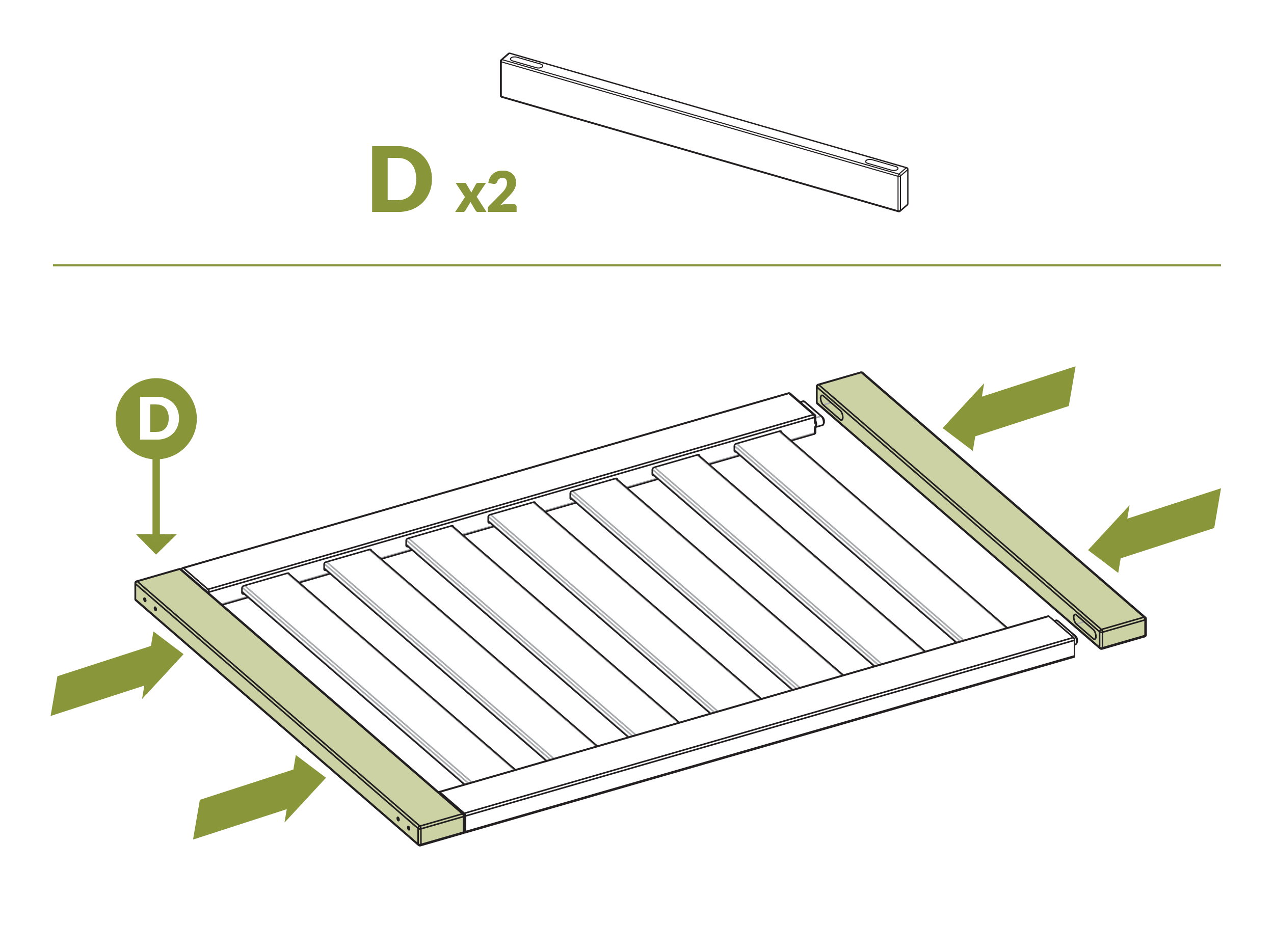

Step 4

Step 4 Attach D (End Posts) to each side

Attach (2) End Posts (D) to each side.

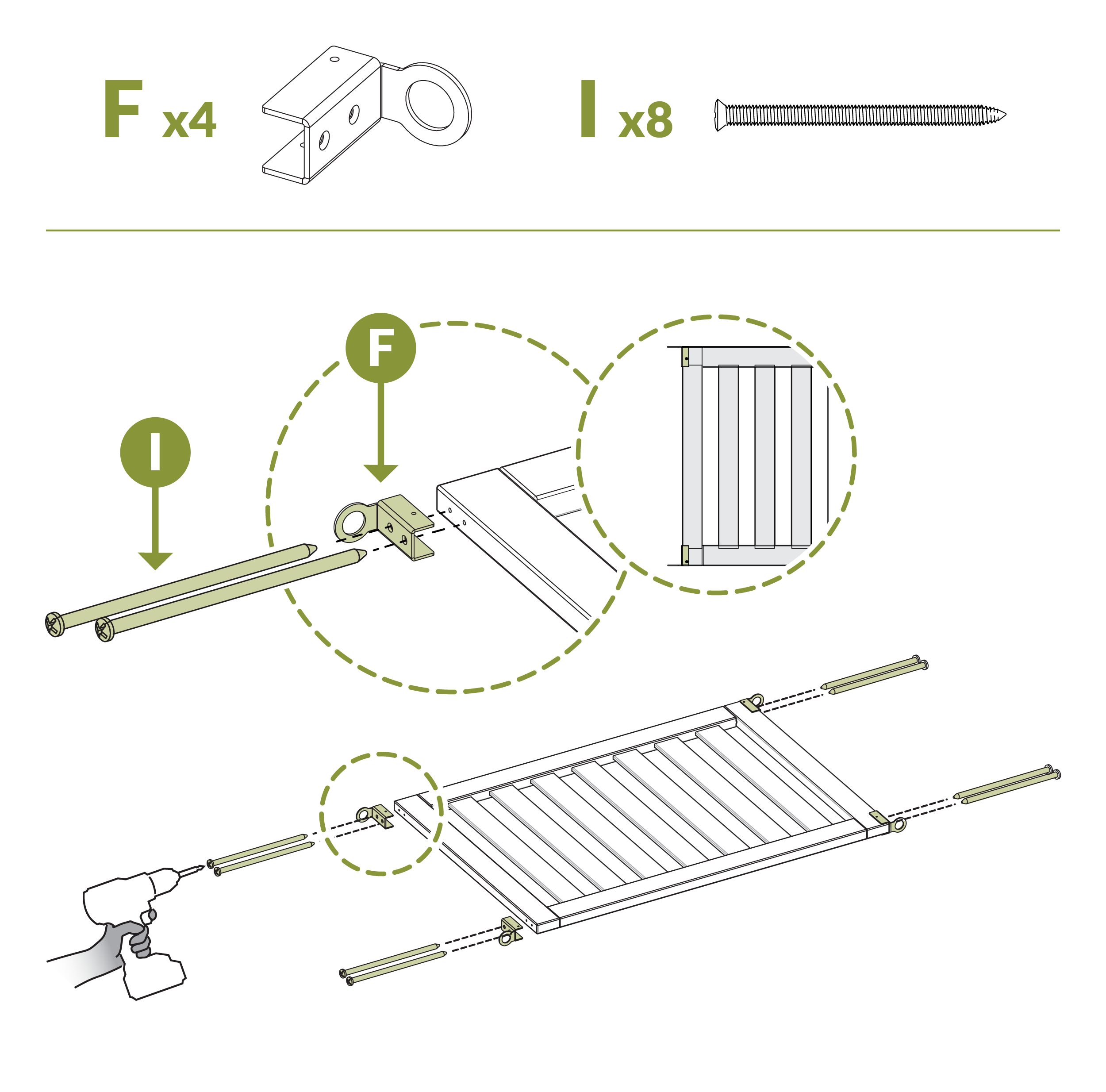

Step 5

Step 5 attach Stake Brackets using 1" screws

Attach (4) Stake Brackets (F) using (8) 4" Self-Tapping Stainless Steel Screws (I).

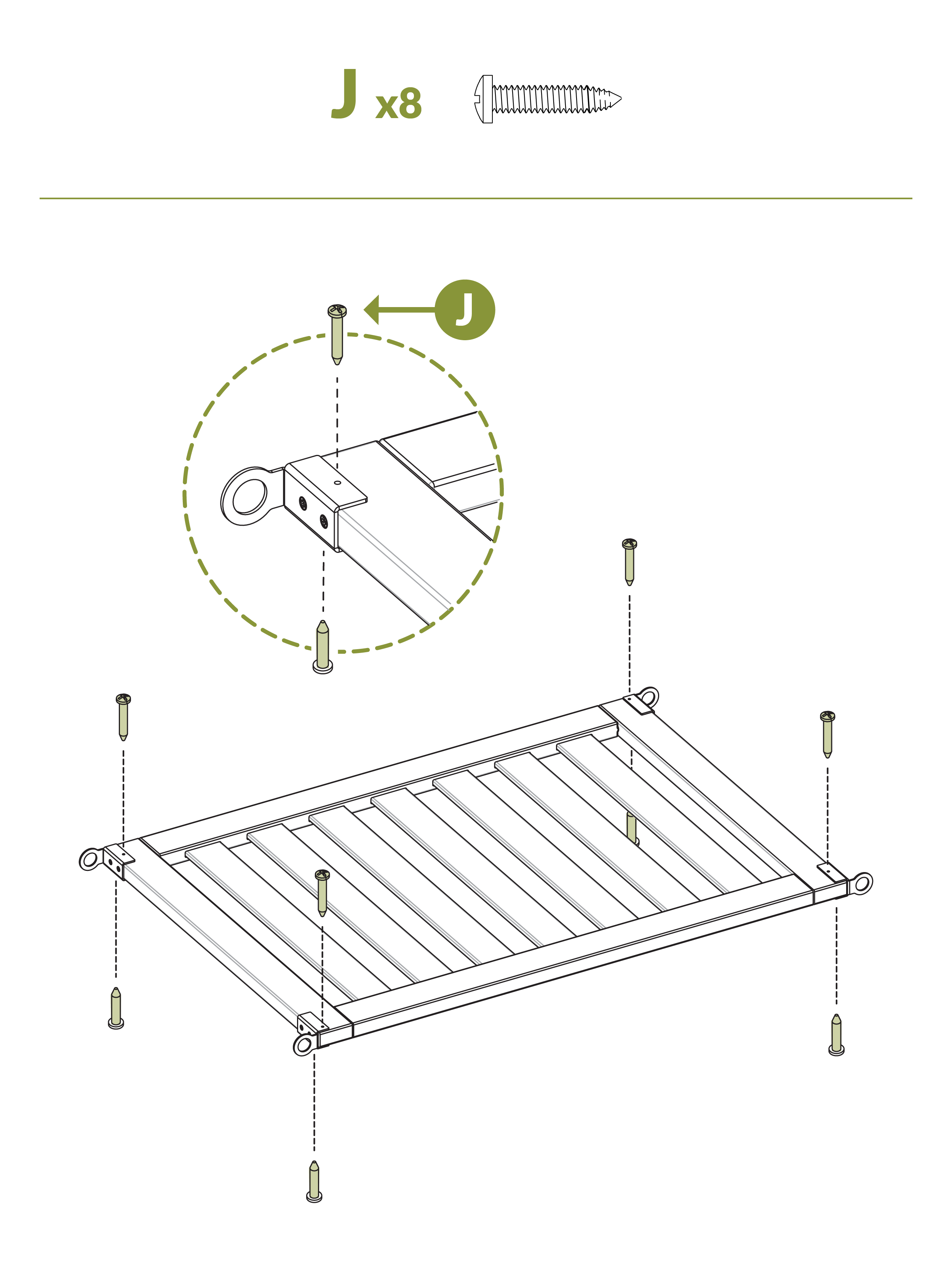

Step 6

Step 6 Secure brackets using J (4" screws x8)

Secure brackets using (8) ⅝" Self-Tapping Stainless Steel Screws (J).

Step 7

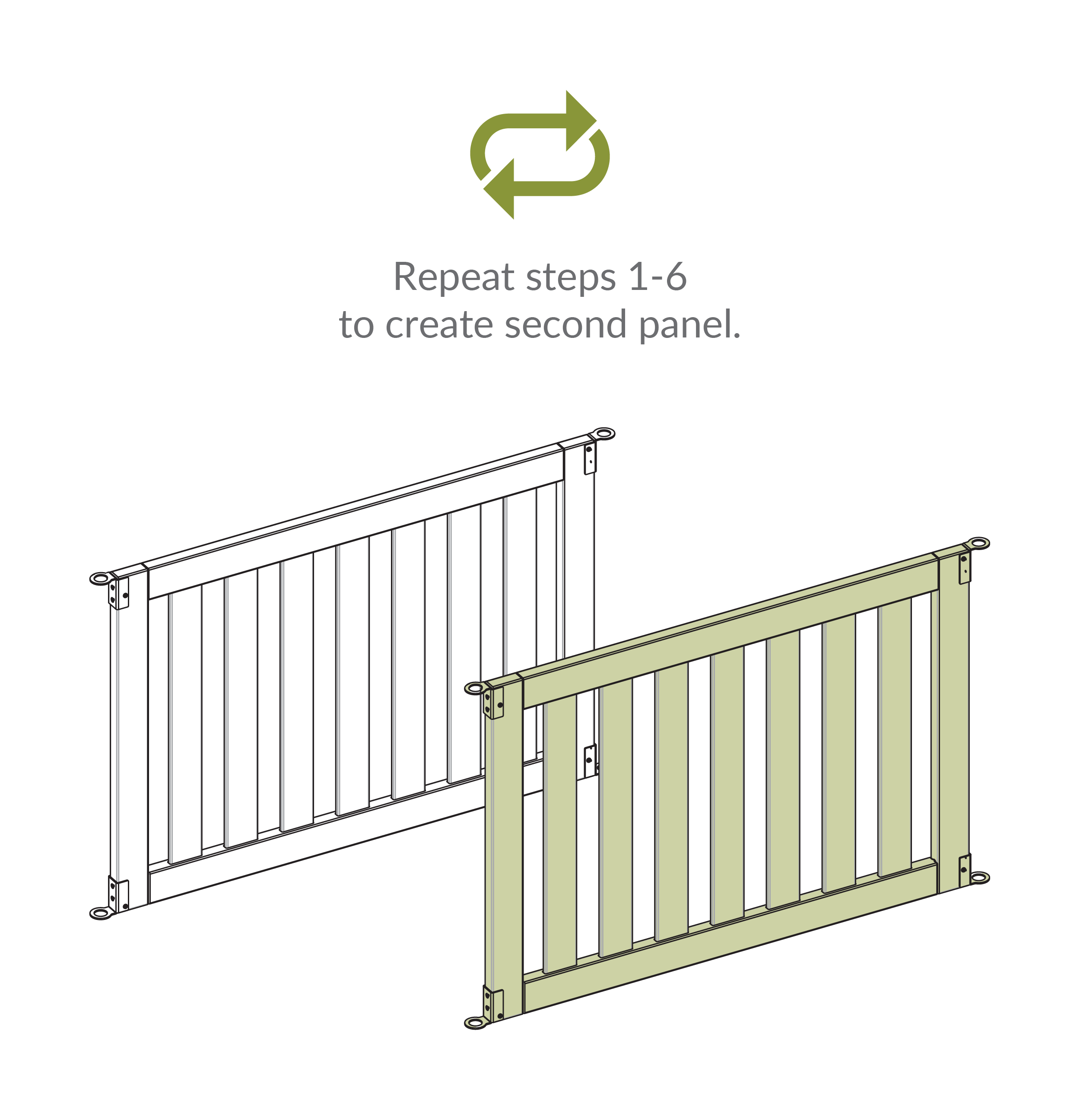

Step 7 Repeat steps 1–6 to create the second panel.

Step 8

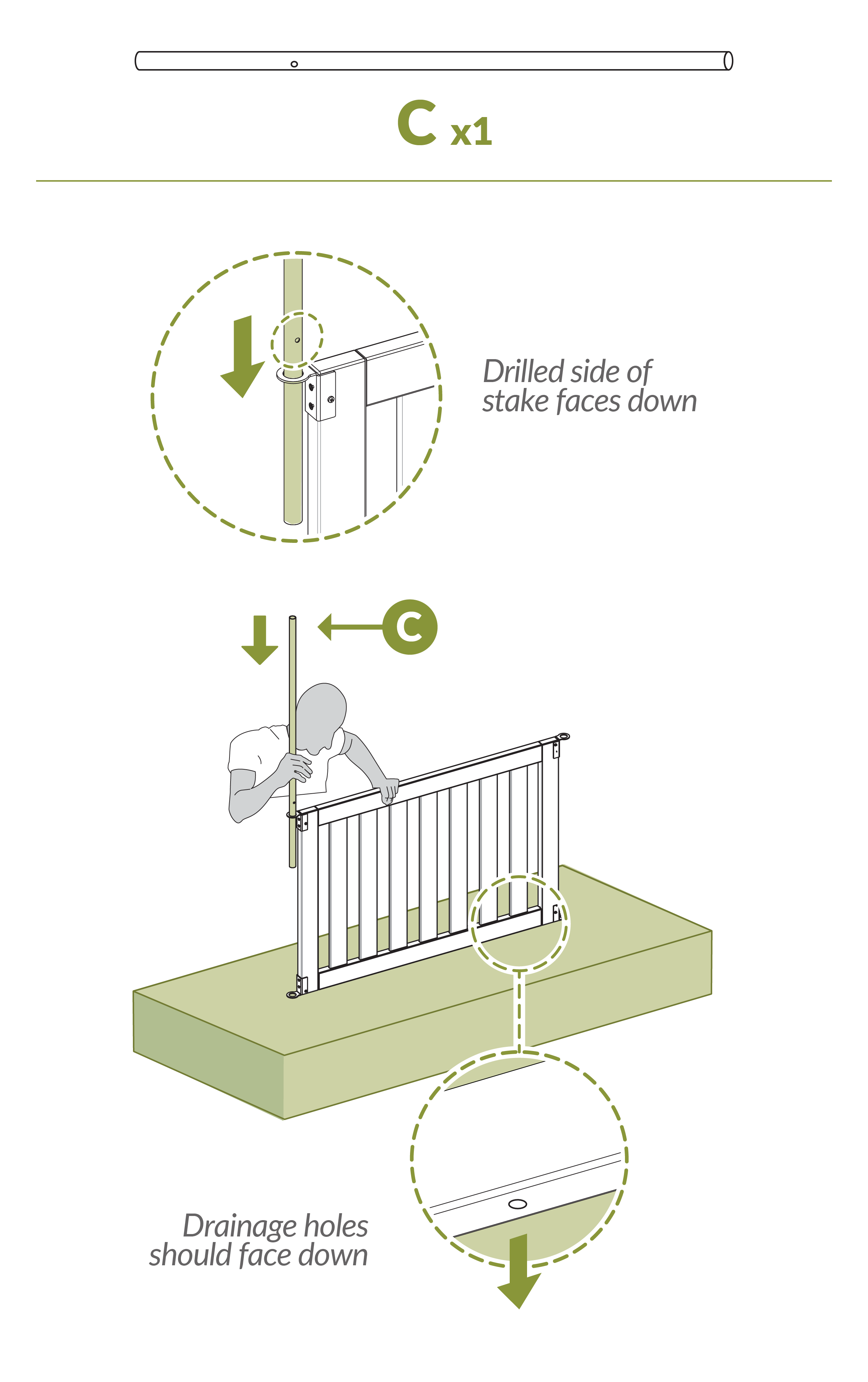

Step 8 Ensure drilled side of stake faces down

Insert (1) Ground Stake (C) into brackets on side of panel.
Ensure drilled side of stake and drainage holes faces down

Step 9

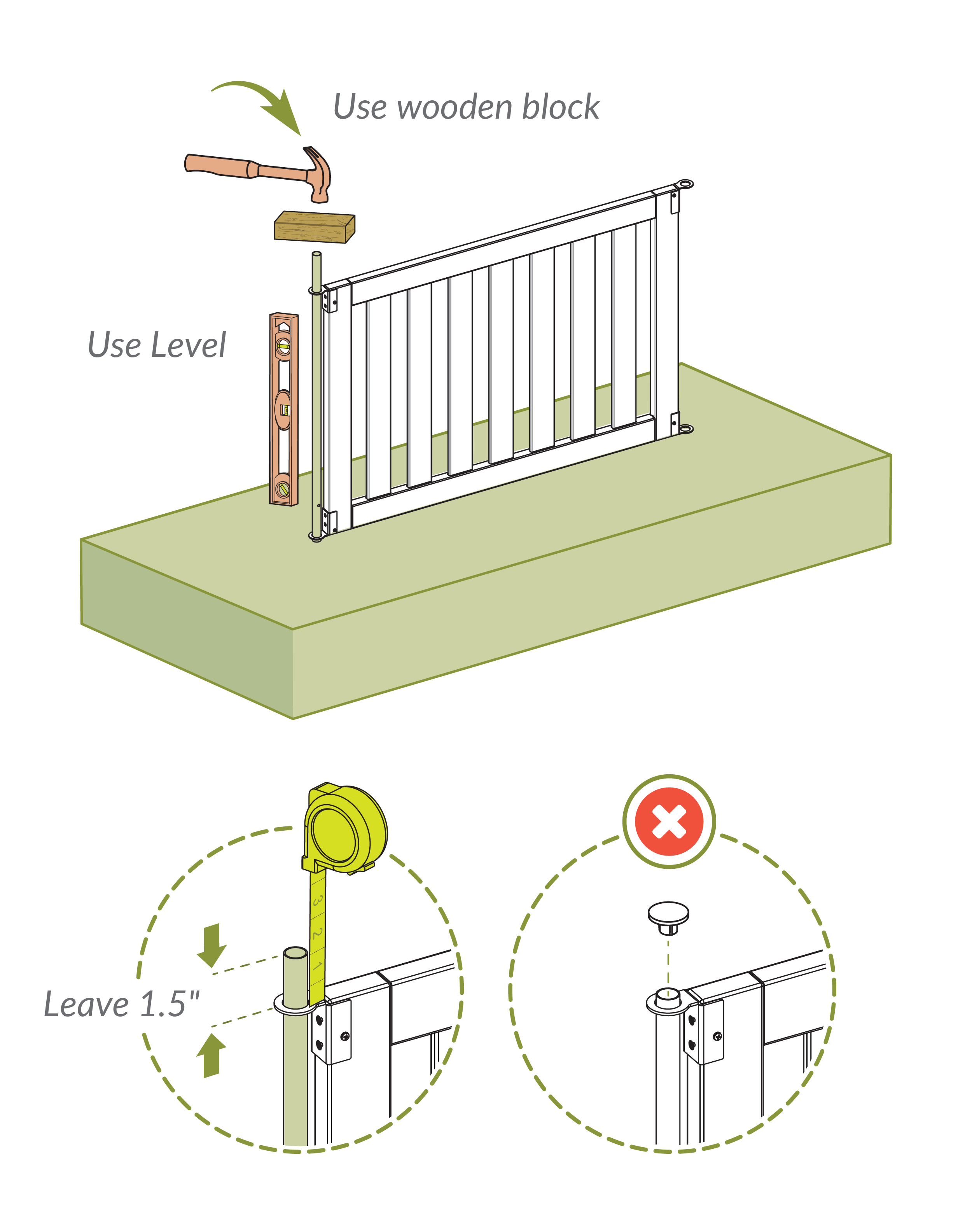

Step 9 Hammer stake into ground with scrap wood

Hammer stake into ground using scrap wood block to protect stake.
Leave ~1.5" between top of stake and top of panel.

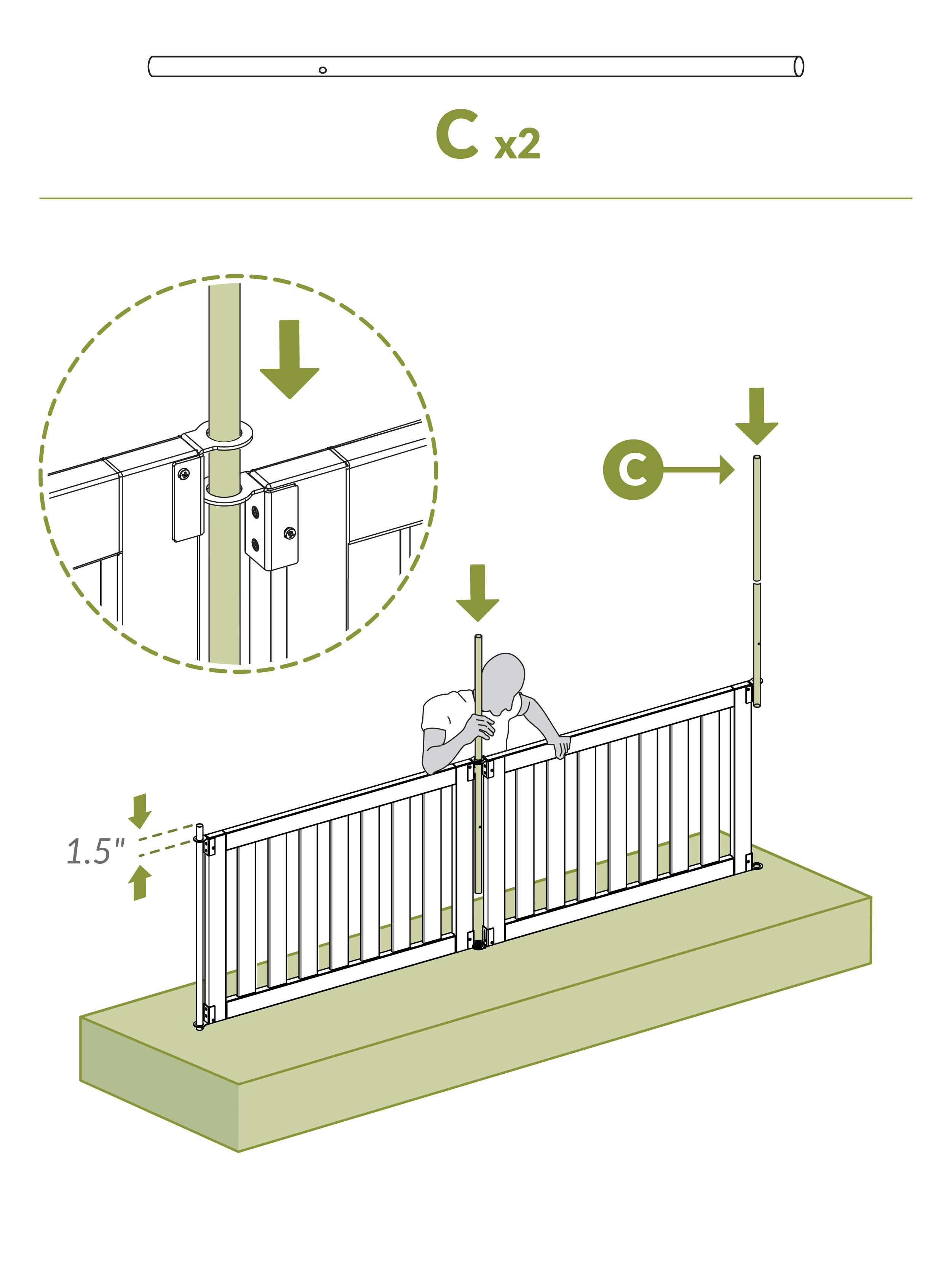

Step 10

Step 10 Pass stake through rings on 2 panels to extend run

Pass stake through brackets on both panels to extend the fence run

Step 11

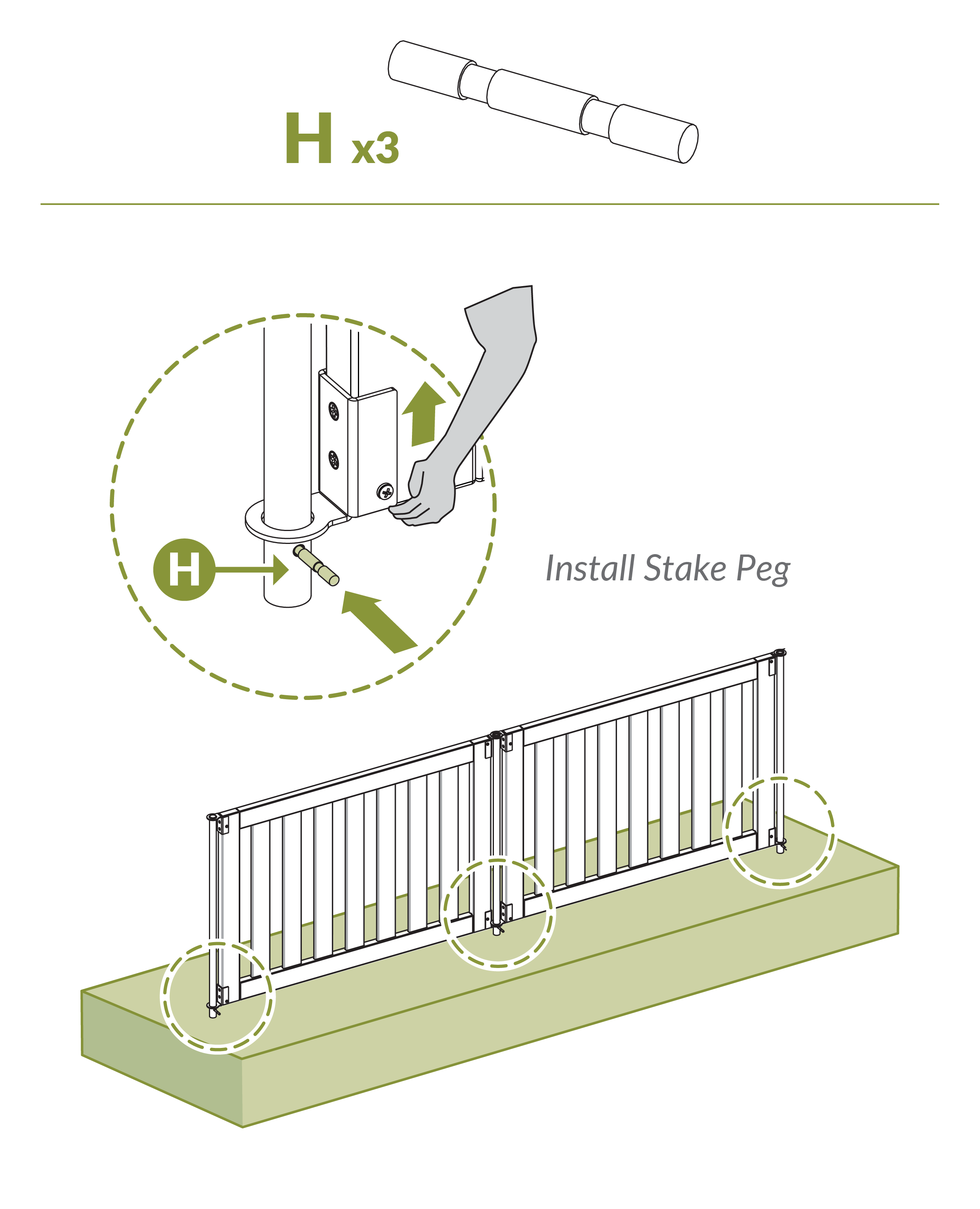

Step 11 Install stake peg (recommended)

Lift the panels and install (3) Stake Pegs (H) into stakes.

Step 11b (Optional – Sloped Surface)

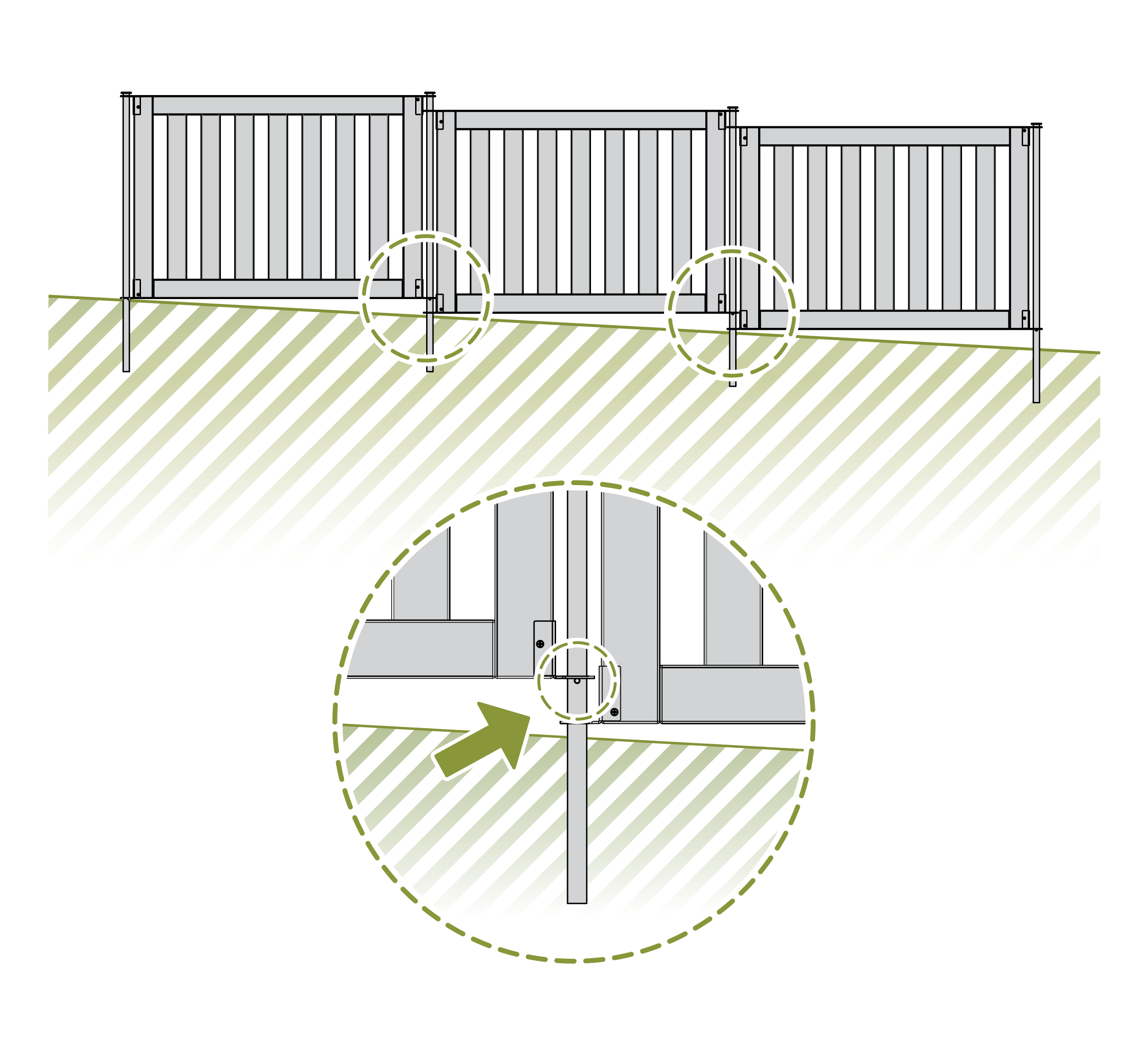

Step 11b Optional- step panels by installing lower panel

Step panels by installing the lower panel beneath the stake peg.
For a surface that drops more than 3" across the length of a panel please call our customer service team at 704-892-5222 or 877-234-6196
