ZP19055 Portable Puppy Fence Assembly Instructions

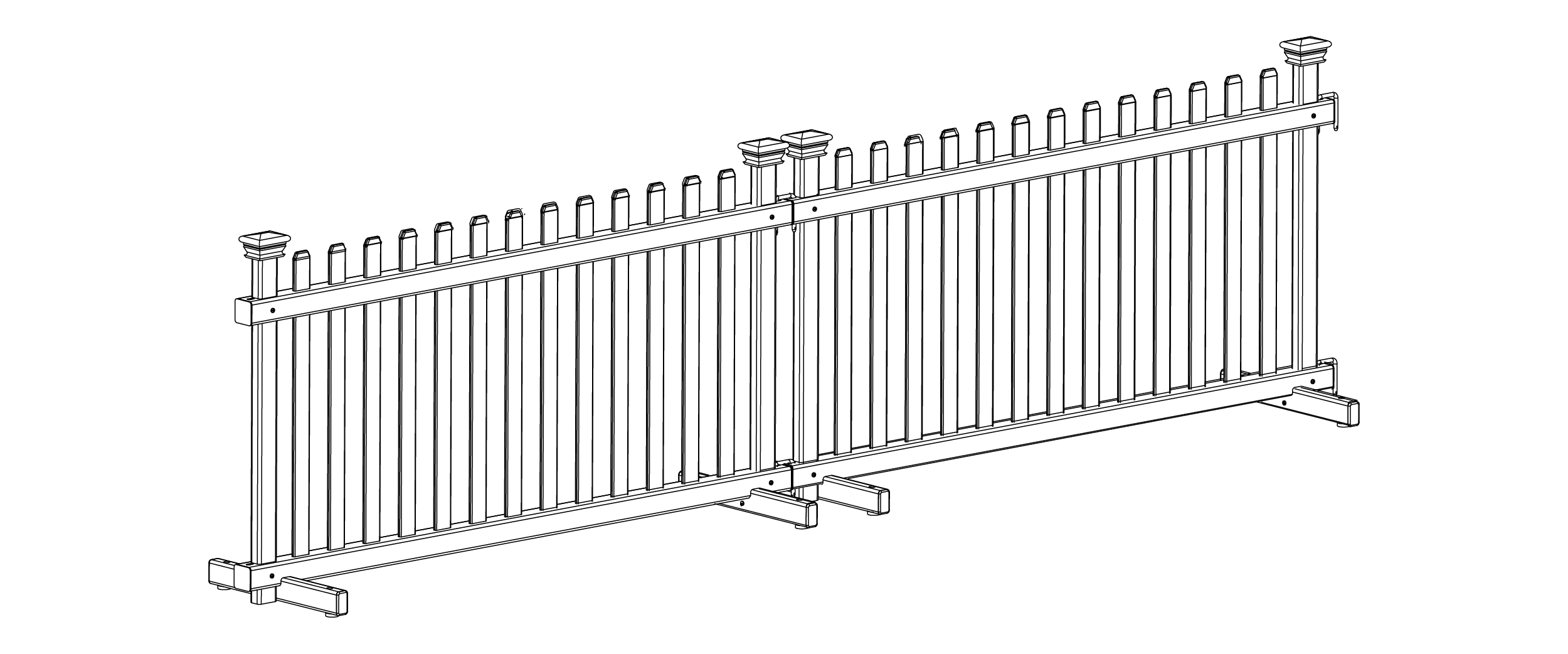

ZP19055 Cover Image

Approximate assembly time for 30 minutes (for 2 fence panels)

Click here to view an installation video

Introduction

General Information

Important Safety Notes:

Check the inside of the larger pieces in your box for other materials packed inside.
When assembling components, place on a non-abrasive surface (i.e. shipping box) to avoid scratching.
We recommend an area approximately 5’ x 8’ for unobstructed assembling.
You should not need to use excessive force when assembling components.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is happy to help.

Website: https://parts.nychbrands.com
Email: support@zippity-outdoor.com
Phone: 704-892-5222 or 877-234-6196

Customer service agents are available 9am–5pm EST, Monday–Friday.

For Quick Assistance:

Have reference item number ZP19055
Provide the specific part name
Include the batch lot number

Product Specifications

Detailed Dimensions & Specifications

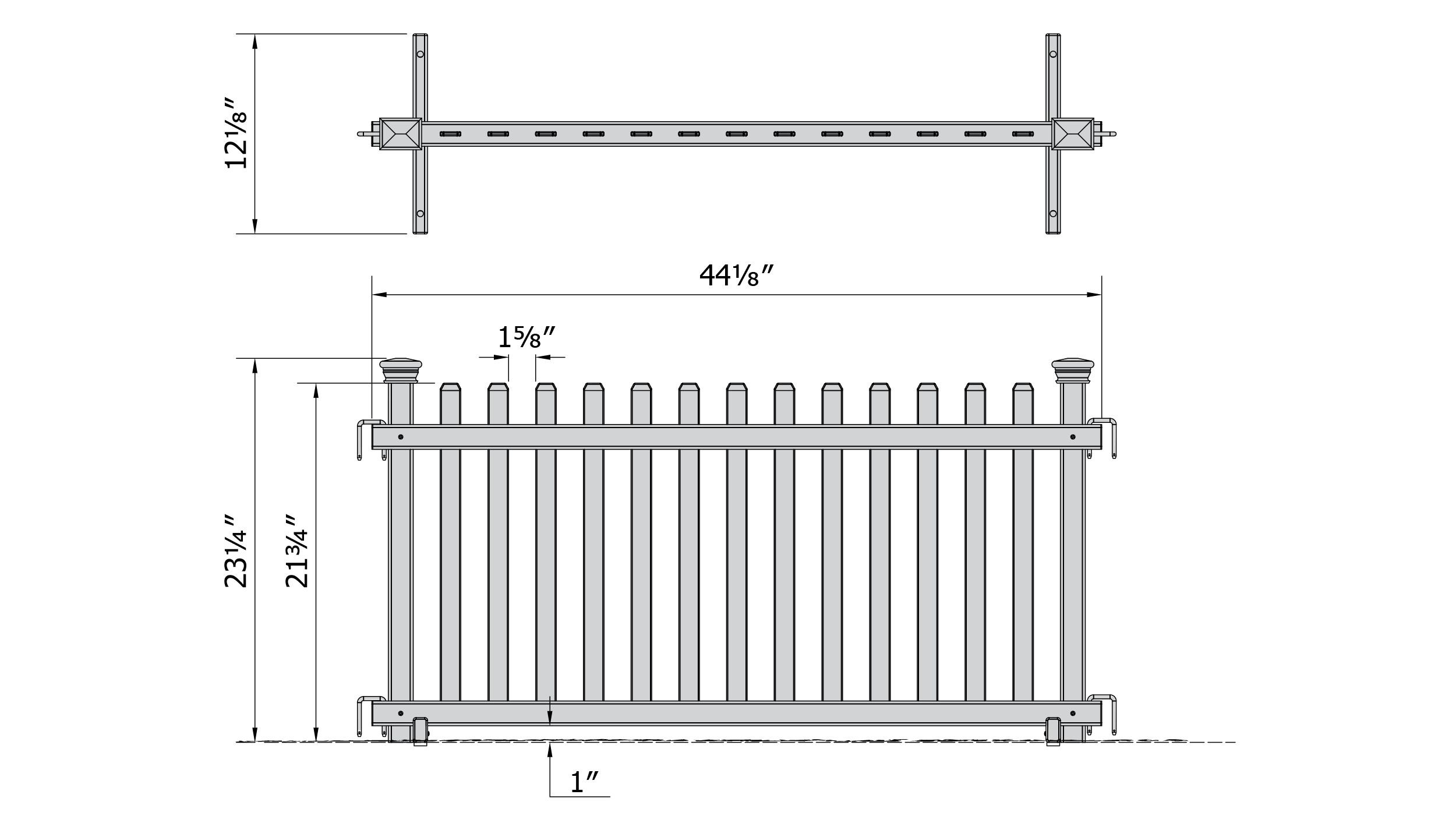

ZP19055 Portable Puppy Picket Detailed Line Drawings & Specs

Product Specifications:

Approximate panel width: 44 1/8 in
Approximate overall panel height: 23 1/4 in
Approximate picket height: 21 3/4 in
Approximate foot length: 12 1/8 in

Lay Out Materials

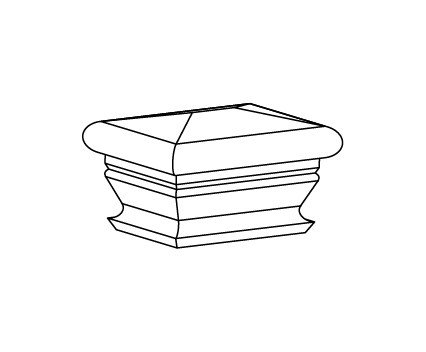

A. Post Cap (4)

ZP19055 Post Cap A (4)

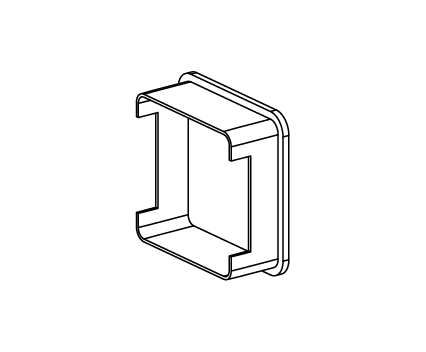

B. Rail End Cap (8)

ZP19055 Part B (8)

(4 installed, 4 loose)

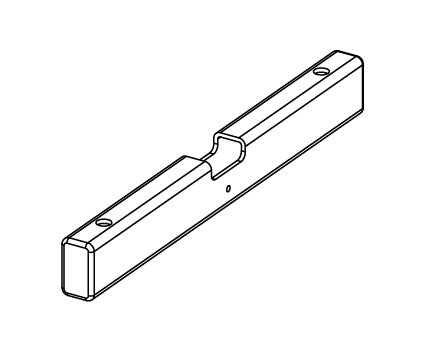

C. Portable Feet (4)

ZP19055 Part C (4)

⅞" x 1½" x 12"

D. Top Rail (2)

ZP19055 Part D (2)

1½" x 1½" x 44"

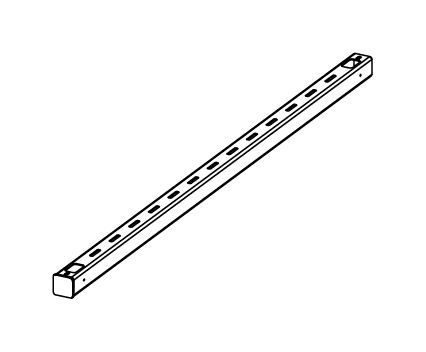

E. Bottom Rail (2)

ZP19055 Part E (2)

1½" x 1½" x 44"

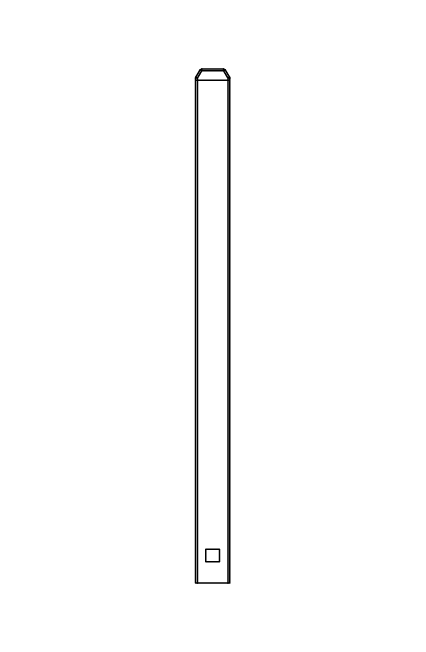

F. Picket (26)

ZP19055 Part F (26)

¼" x 1¼" x 20¼"

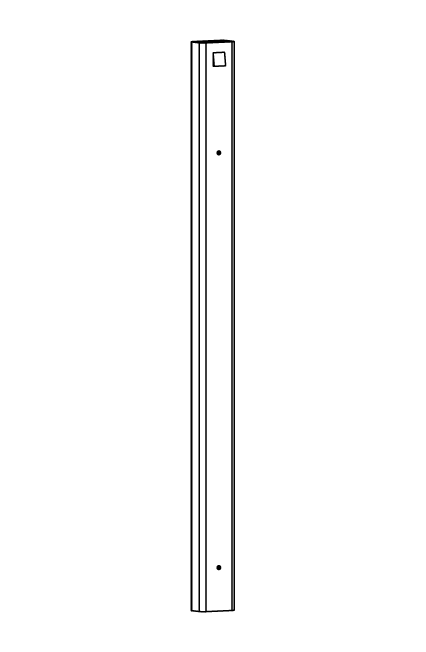

G. Post (4)

ZP19055 Part G (4)

⅞" x 1½" x 23"

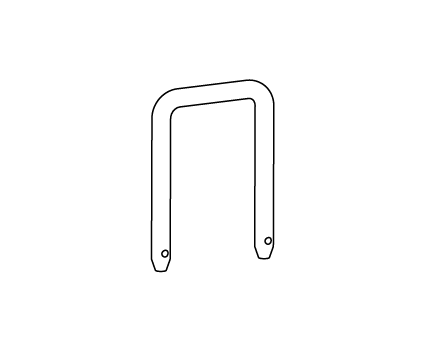

H. Connector Pin (4)

ZP19055 Part H (4)

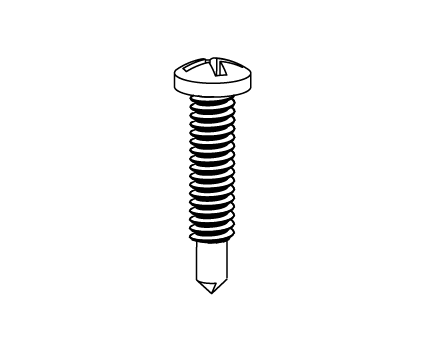

I. ¾" Self-Drilling Stainless Steel Screw (16) – Bag A

ZP19055 Part I (16)

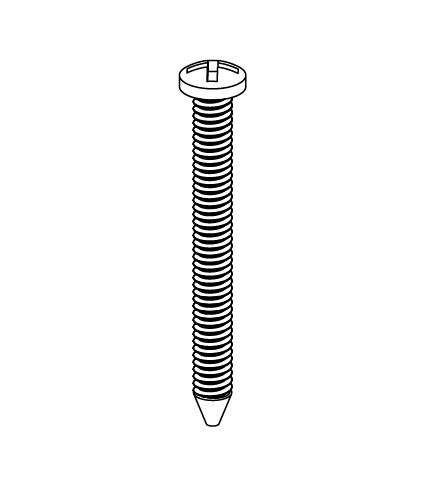

J. 1½" Self-Drilling Stainless Steel Screw (8) – Bag B

ZP19055 Part J (8)

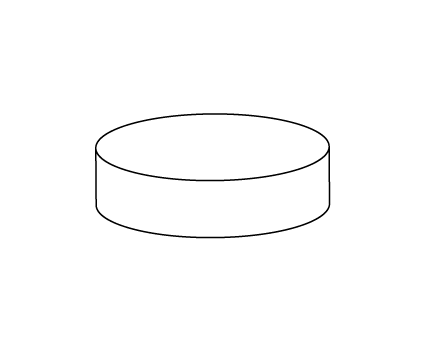

K. Silicone No-Scratch Pad (8)

ZP19055 Part K (8)

Step 2: Assemble Fence Frame

Step 2.1

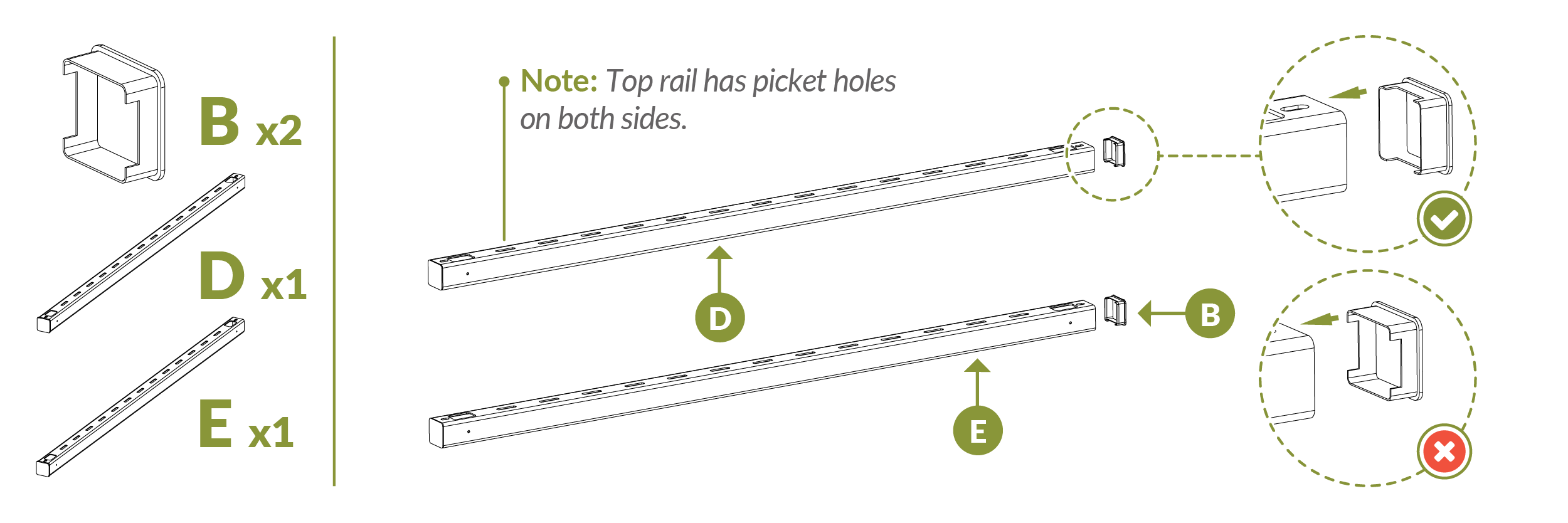

Step 2.1 Identify rails (part D and E) insert caps (part B)

Identify the Top Rail (D) and the Bottom Rail (E) as shown.
Insert (2) loose Rail End Caps (B) into the rails. Make sure they are oriented as illustrated.
- Top rail will have picket holes on the top and bottom of the rail. This will be the top of the fence.
- Ensure that the picket holes in the bottom rail are facing toward the top rail.

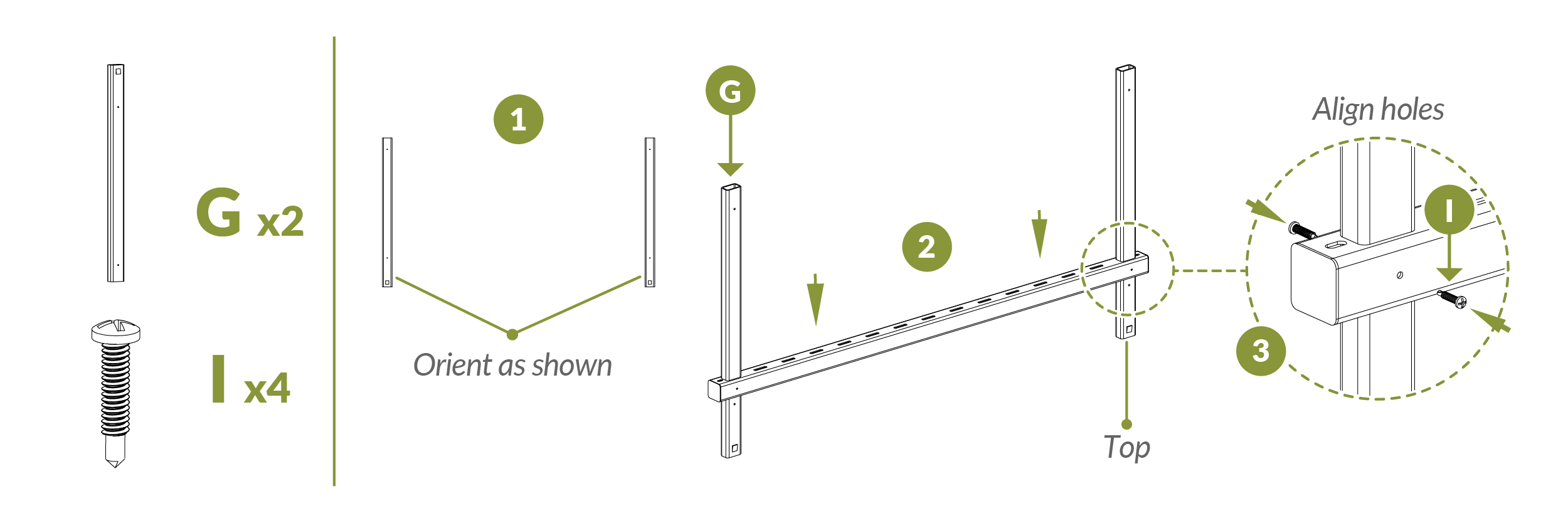

Step 2.2

Step 2.2 Orient posts (part G) and align holes/screw (part I

Orient (2) Posts (G) as shown.
Slide the top rail (D) down the posts, aligning the pre-drilled holes.
Drive (4) ¾" Self-Drilling Stainless Steel Screws (I) into the pre-drilled holes.

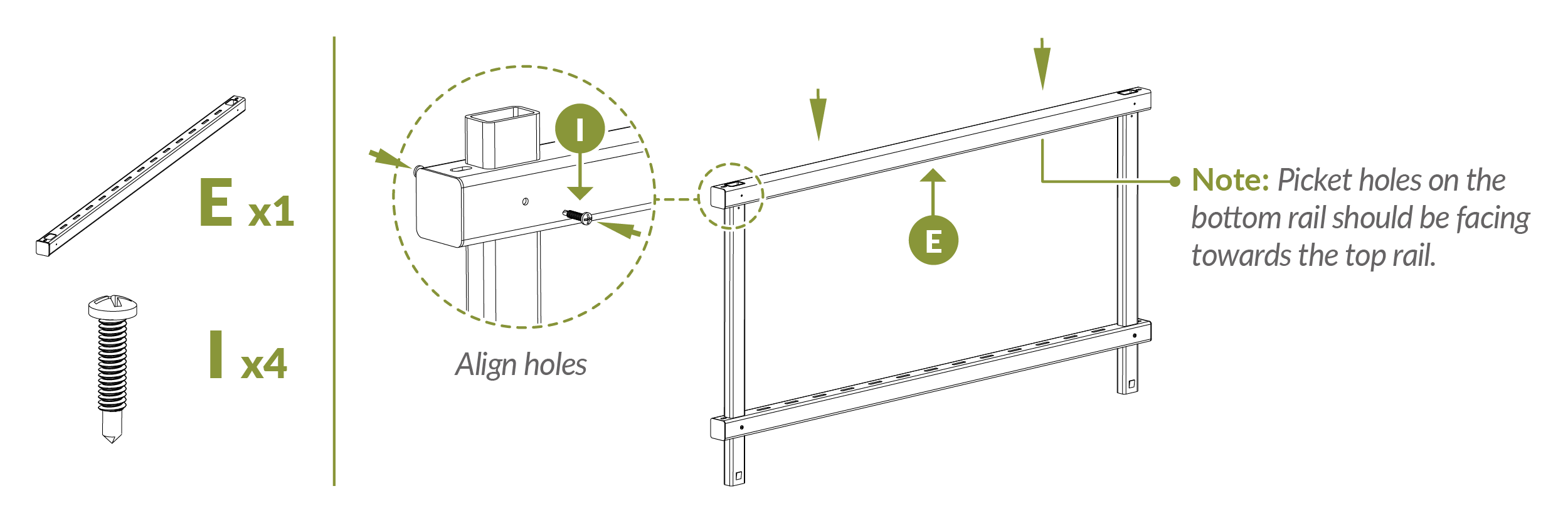

Step 2.3

Step 2.3 Slide bottom rail (part E) and secure with screws

Slide the bottom rail (E) down the posts until the pre-drilled holes align.
Drive (4) ¾" Self-Drilling Stainless Steel Screws (I) into the holes.

Step 3: Insert the Pickets

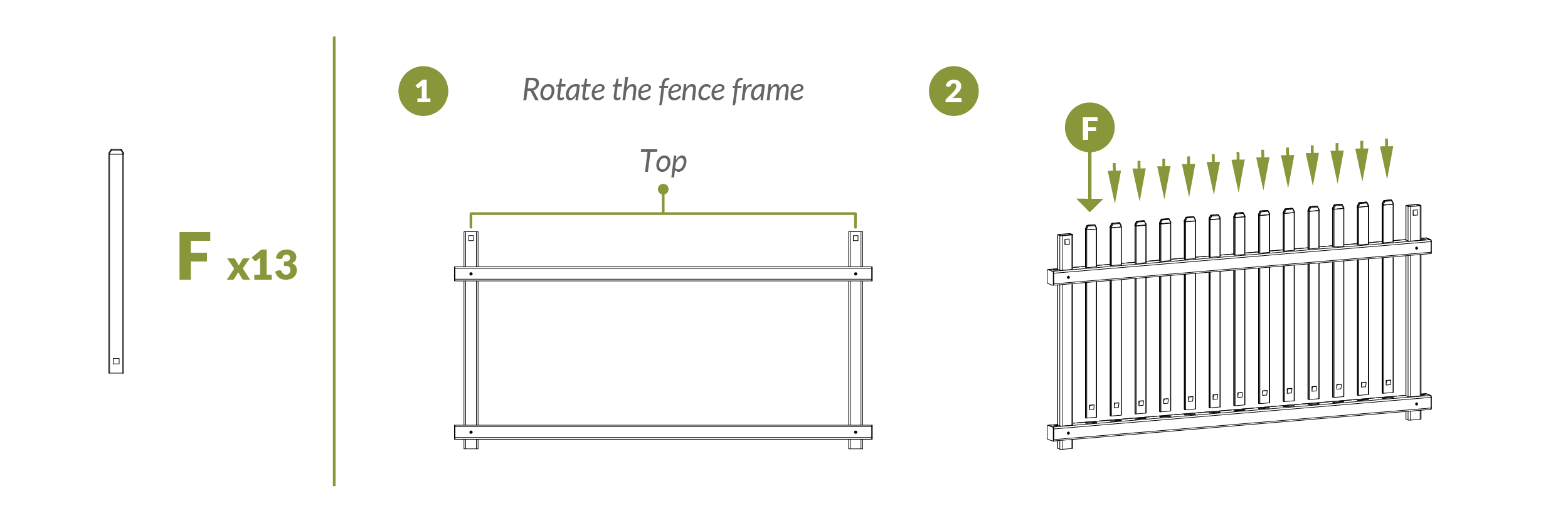

Step 3.1 Rotate frame and Insert pickets (part F)

Rotate the fence frame so that the post tabs are facing up.
Insert (13) Pickets (F) into the picket holes in the top and bottom rails.

Step 4: Attach the Feet

Step 4.1

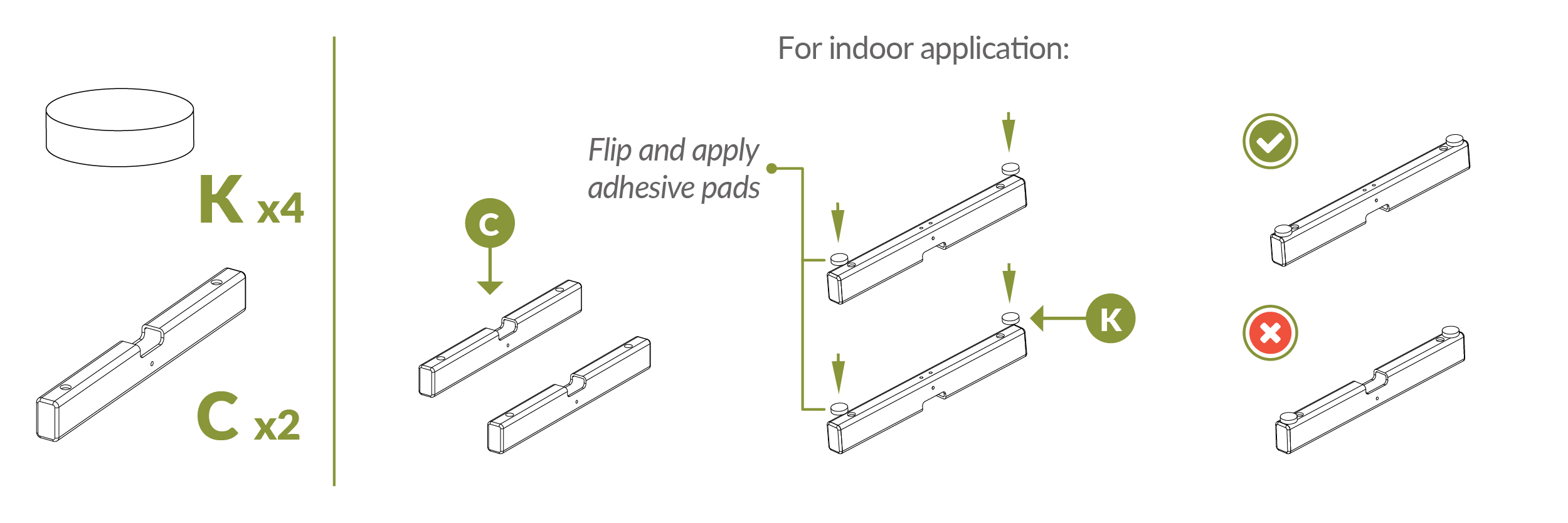

Step 4.1 Attach pads (part K) to feet (part C)

Identify the Portable Feet (C).
- If you plan to use your portable fence indoors, identify (4) of the Silicone No-Scratch Pads (K).
Remove the adhesive backing from each pad and stick (2) pads on the far ends of the underside of each foot, as shown.
- Note: This step is only needed for indoor applications.

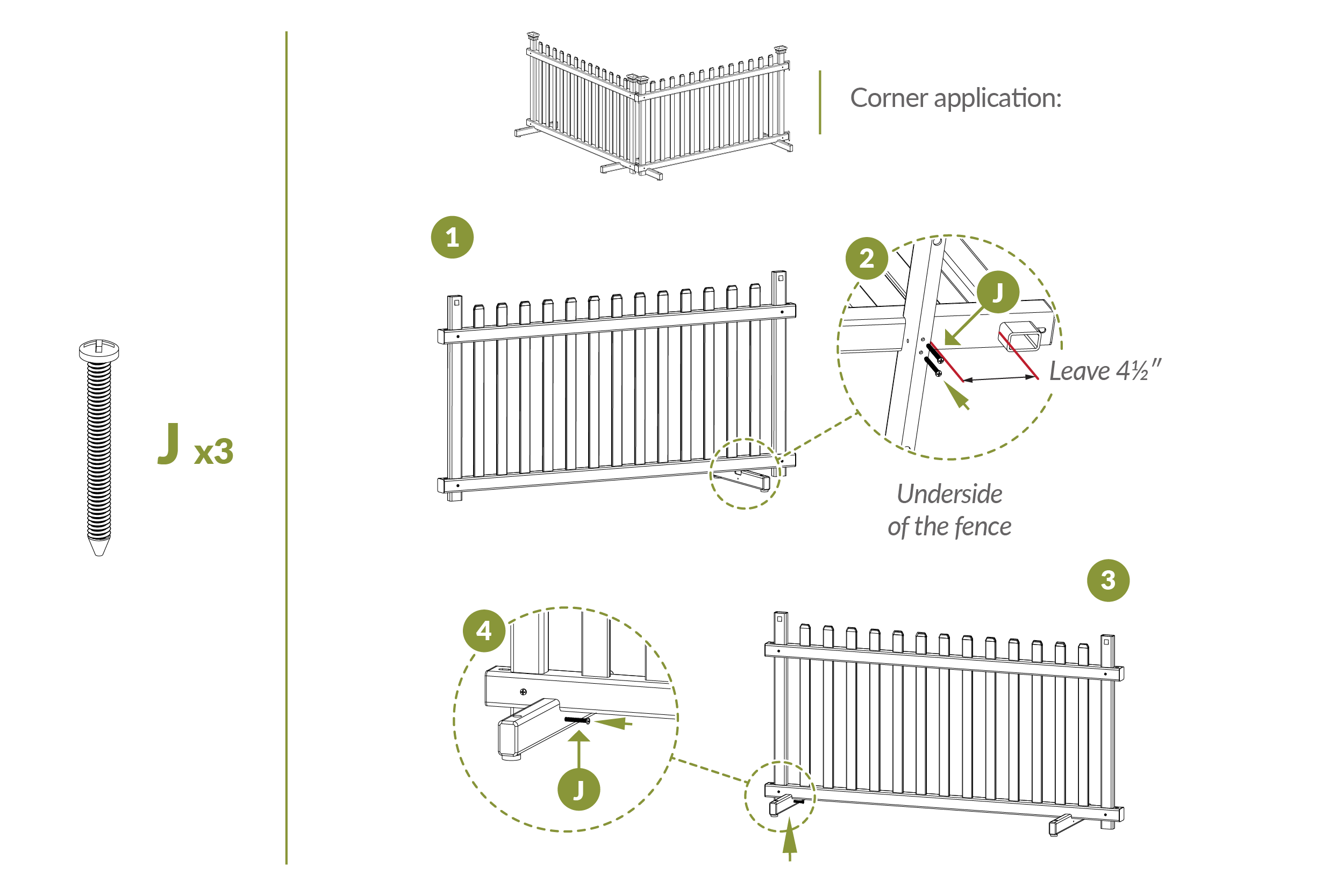

Step 4.2A – Corner/Angled Application

Step 4.2a - corner application install feet

Take (1) portable foot and slide the notched end into the underside of the bottom rail.
Position the foot so that it is at least 4½" from the edge of one of the posts. Drive (2) 1½" Self-Drilling Stainless Steel Screws (J) through the pre-drilled holes in the underside of the foot.
Take the other portable foot and slide the notched end into the underside of the rail.
Slide the foot until it touches the other post and drive (1) 1½" Self-Drilling Stainless Steel Screw (J) into the pre-drilled hole in the side of the portable foot.

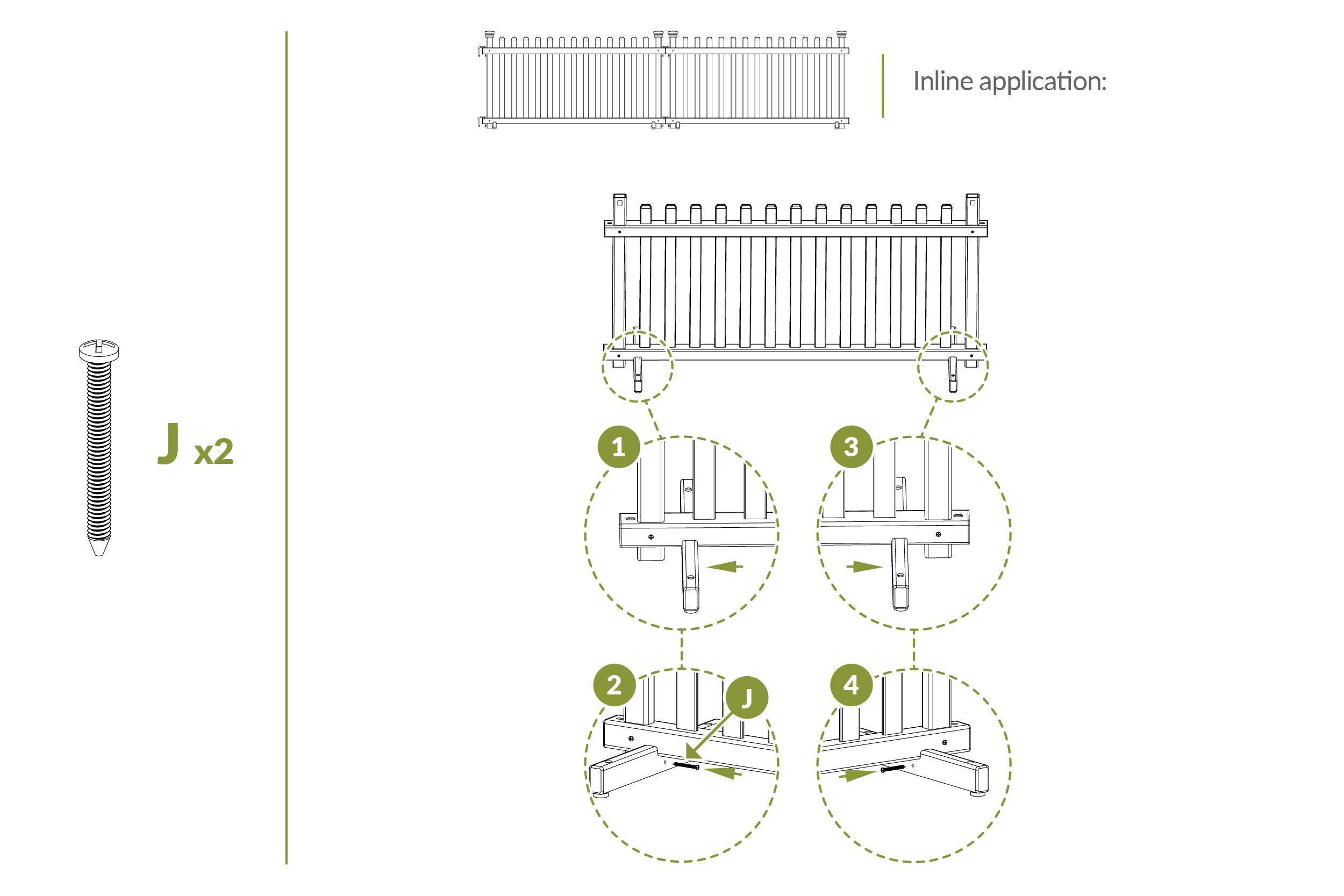

Step 4.2B – In-Line Application

Step 4.2b Inline application

Take a portable foot and slide the notched end under the bottom rail. Slide the foot so that it is touching the side of the post.
Drive (1) 1½" Self-Drilling Stainless Steel Screw (J) into the pre-drilled hole in the side of the foot.
Repeat this process on the other side of the fence panel.

Step 5: Assemble Second Fence Panel

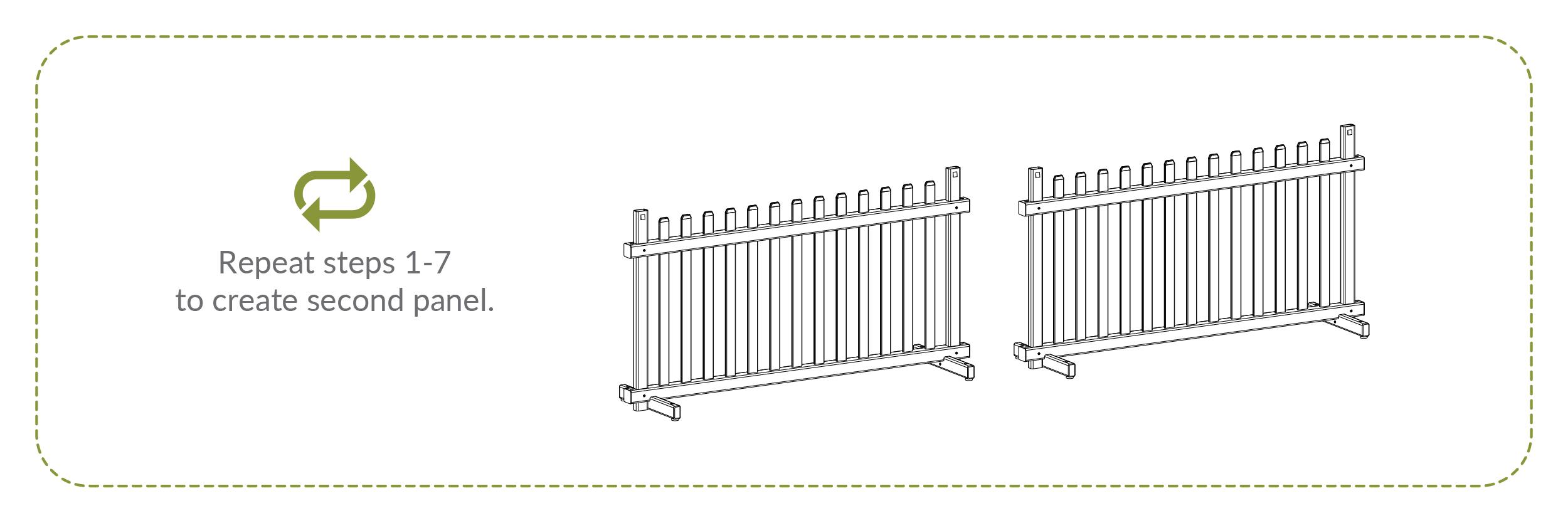

Step 5 - Build second panel

Repeat Steps 2–4 to assemble the second fence panel.

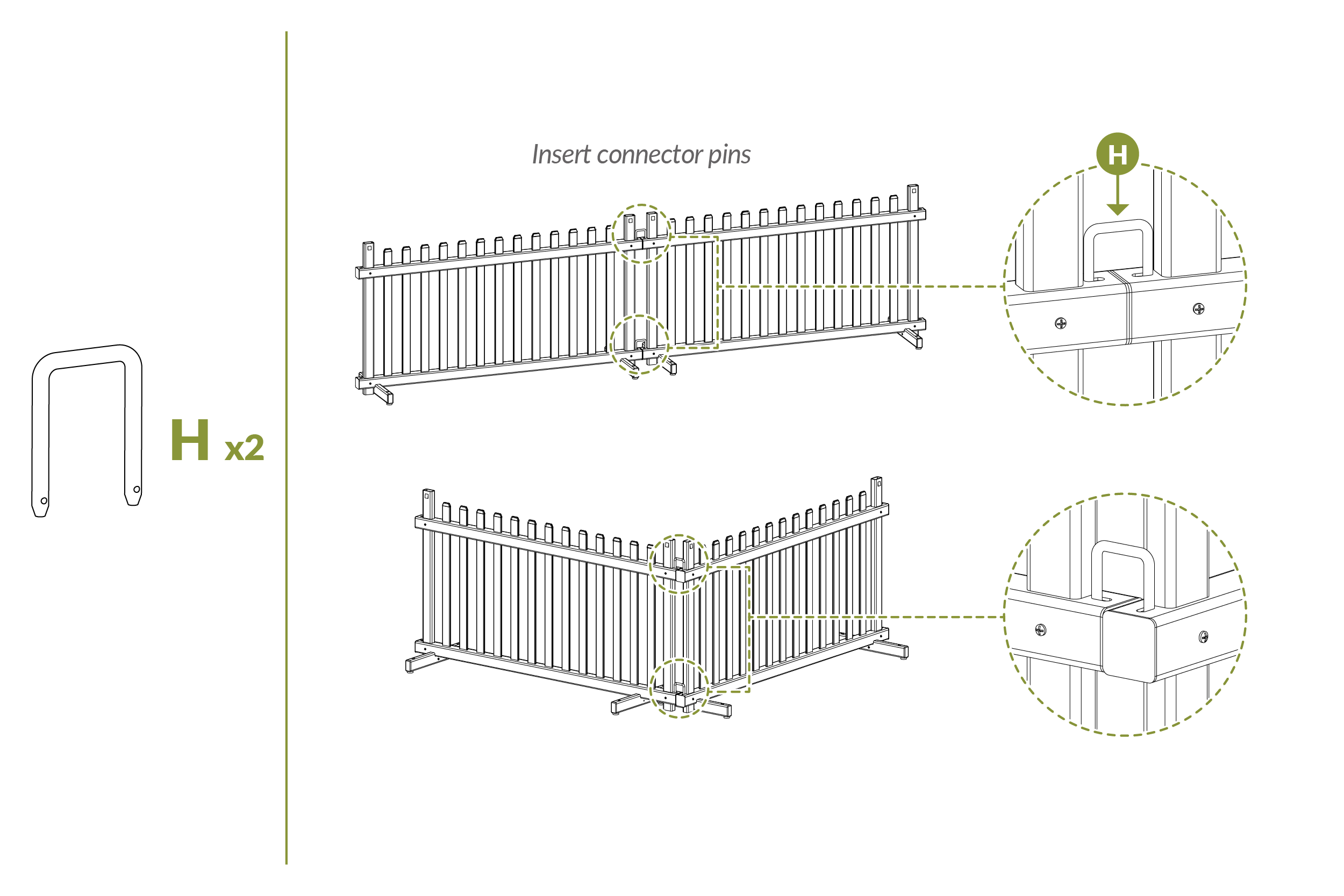

Step 6: Connect the Panels

Step 6 - Connect panels with connector pins (part H)

Connect the (2) fence panels using the Connector Pins (H) as shown.
Pins can be used for straight-line or corner configurations.

Step 7: Attach Post Caps

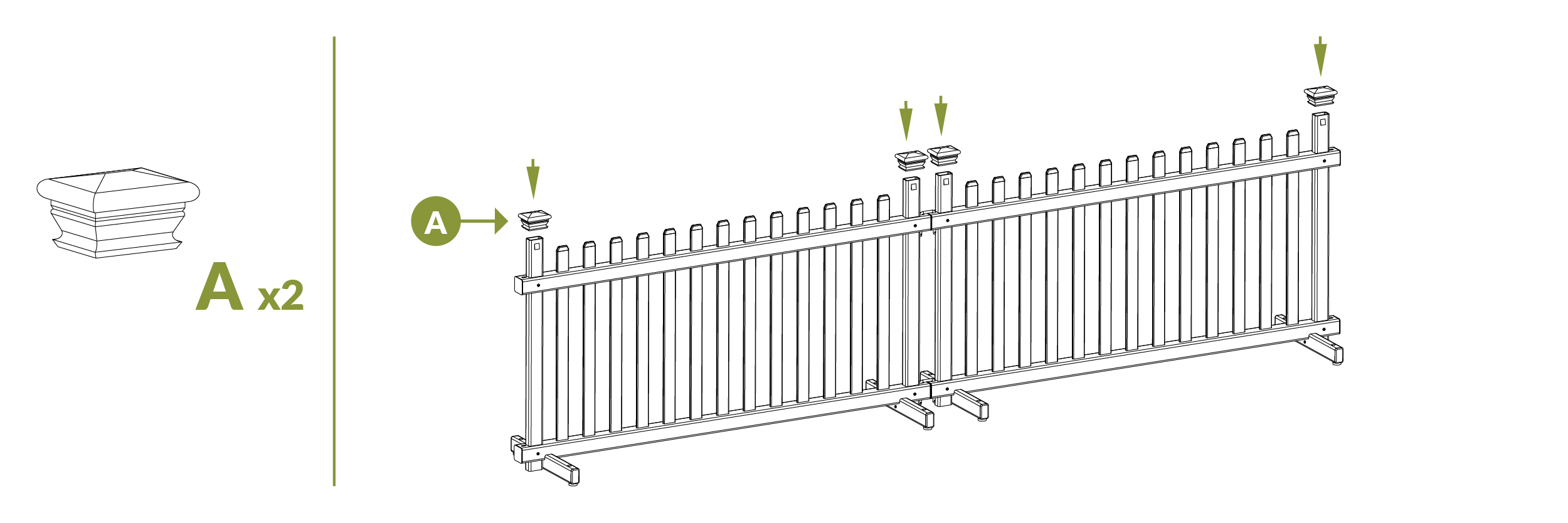

Step 7 - attach post caps (part A)

Insert (4) Post Caps (A) over the tops of the posts until each post cap snaps into the tabs of the post.

Step 8: Secure Panels (Optional)

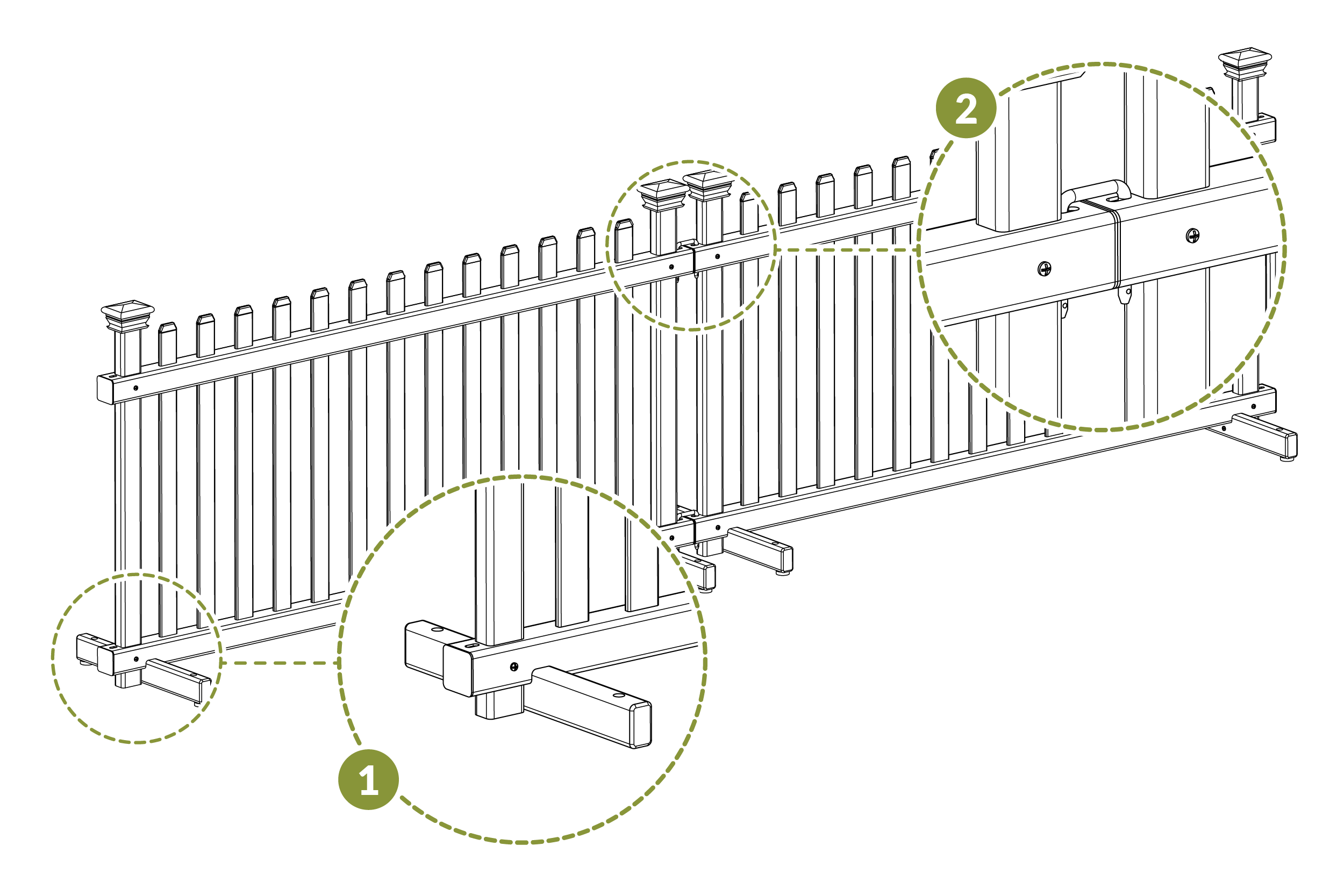

Step 8 Optional - Attach connector pin (part H) to connect

If you wish to more permanently secure your portable fence, you may:
- For installations on grass, drive a ½" diameter rebar stake (not included) into the two holes in each portable foot.
- Secure a zip tie or cotter pin (not included) through the holes in each Connector Pin (H) to prevent it from being removed.
