General Information

Important Safety Notes:

• Check the inside of the larger pieces in your box for other materials packed inside.
• When assembling components, place on a non-abrasive surface (i.e. shipping box) to avoid scratching.
• We recommend an area approximately 5’ x 8’ for unobstructed assembling.
• You should not need to use excessive force when assembling components.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is happy to help.

• Website: https://parts.nychbrands.com
• Email: support@zippity-outdoor.com
• Phone: 704-892-5222 or 877-234-6196

Customer service agents are available 8am–5pm EST, Monday–Friday.

For Quick Assistance:

• Have reference item number ZP19056
• Provide the specific part name
• Include the batch lot number

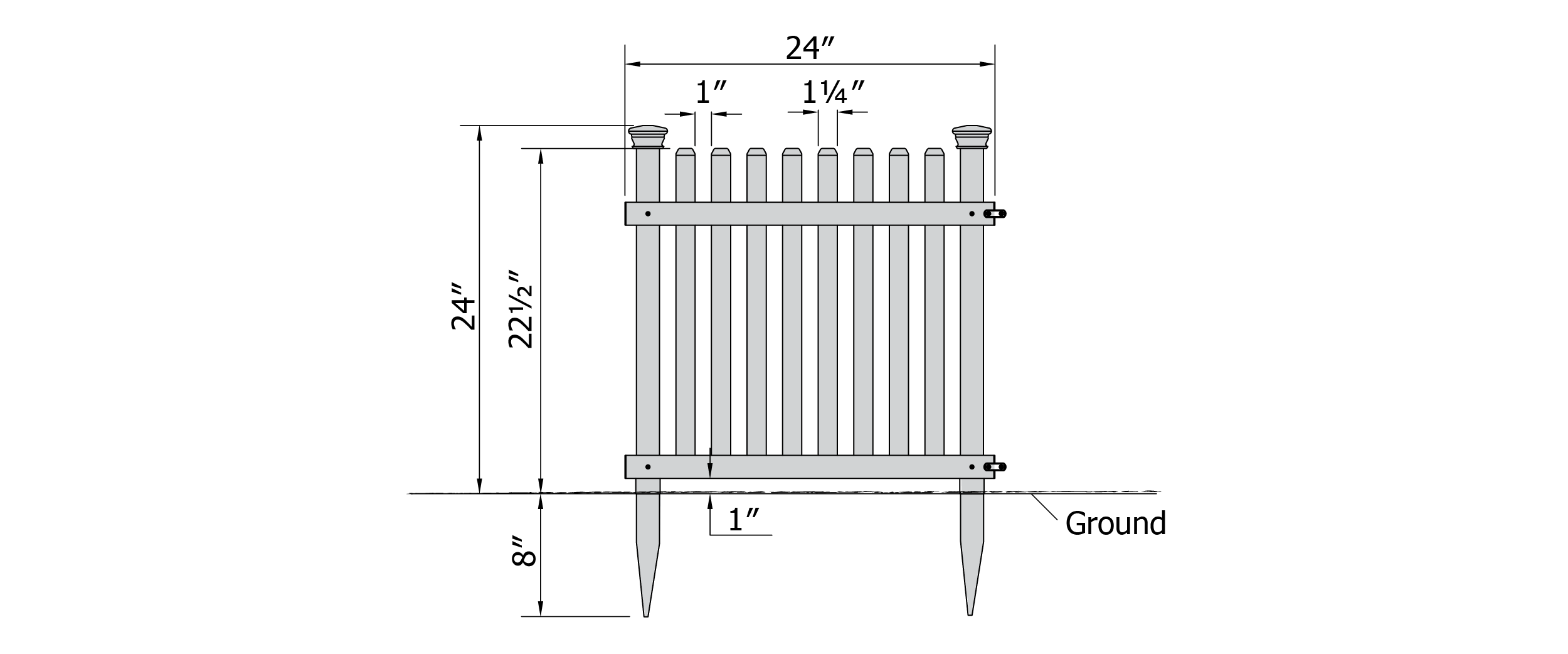

Detailed Dimensions & Specifications

Product Specifications:

• Overall width: 24"
• Overall height: 24"
• Post spacing: 1"
• Anchor Depth into Ground: 8"

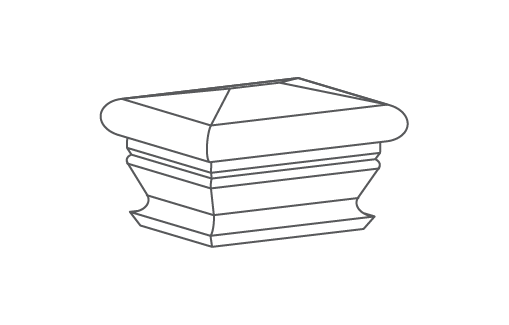

A. Post Cap (6)

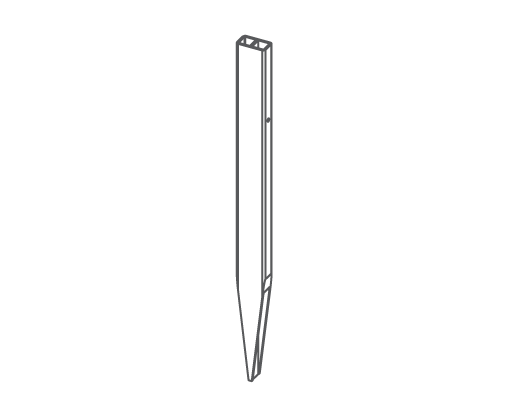

B. Post Anchor (6)

¾" x 1¼" x 12"

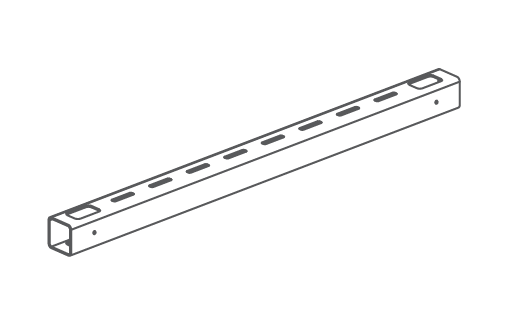

C. Top Rail (3)

1½" x 1½" x 24"

D. Bottom Rail (3)

1½" x 1½" x 24"

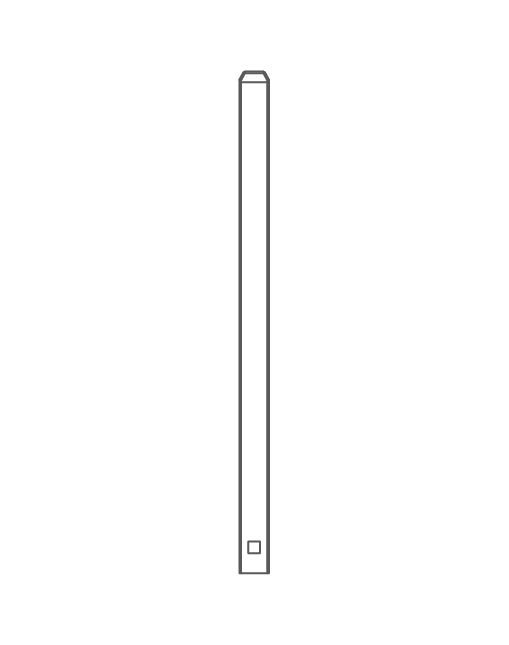

E. Picket (24)

¼" x 1¼" x 21½"

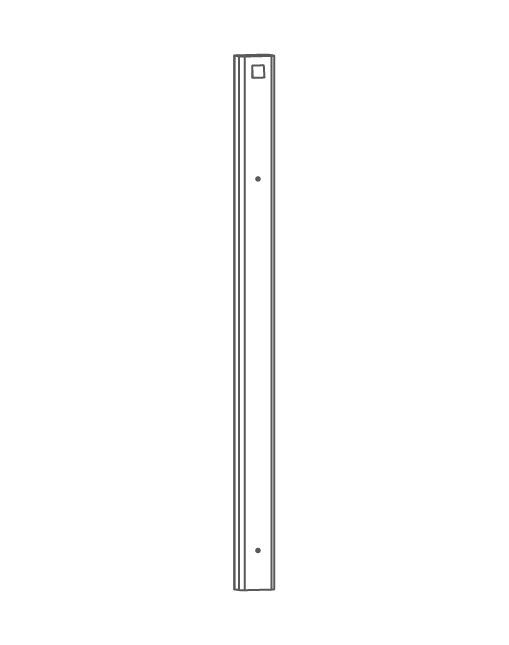

F. Post (6)

⅞" x 1½" x 23¾"

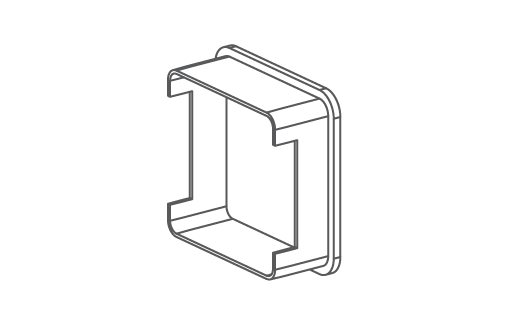

G. Rail End Cap (12)

(6 installed, 6 loose)

H. Joiner Clip (6)

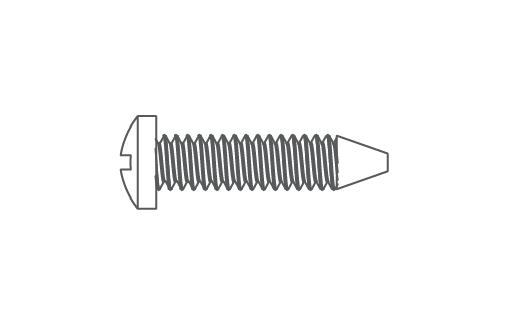

I. ¾" Self-Tapping Stainless Steel Screw (42) – Bag A

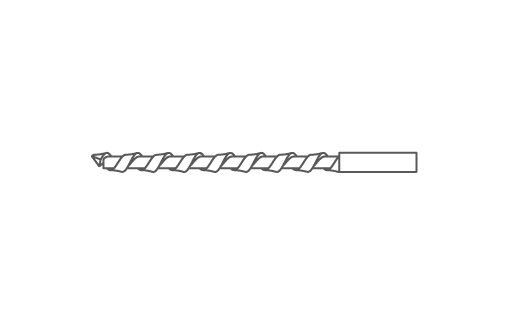

J. ⅛" Steel Drill Bit (1)

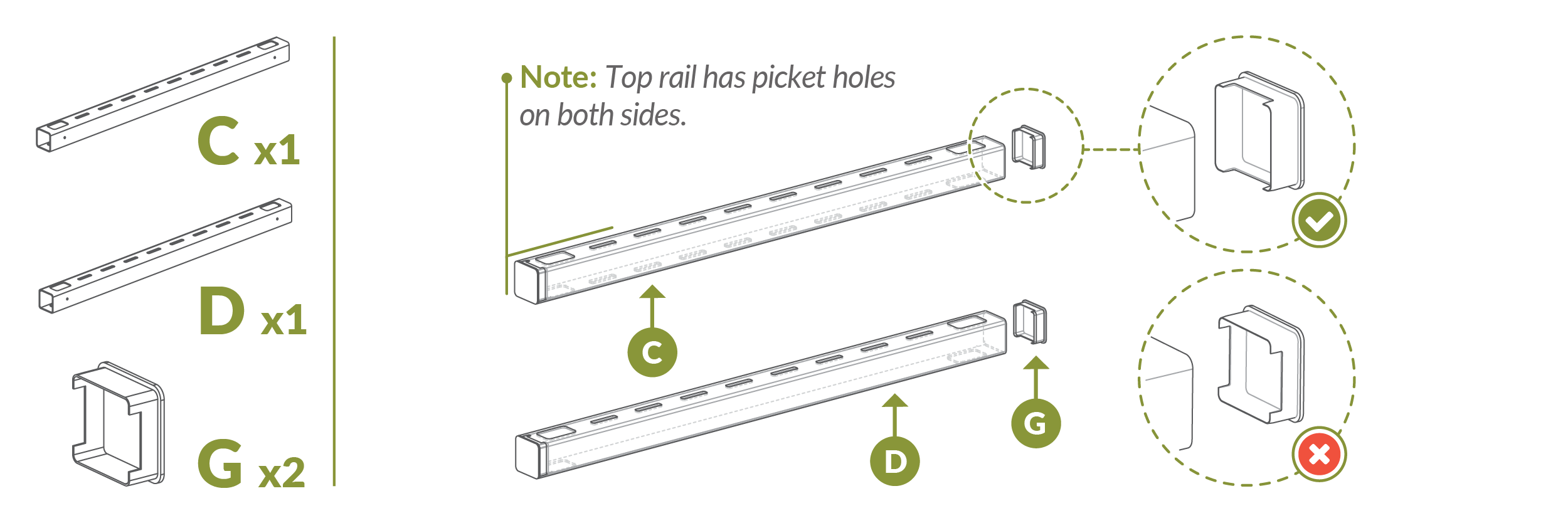

• Identify the Top Rail (C) and Bottom Rail (D).
• Note: Top rail can be identified by picket holes on both sides.
• Insert (2) Rail End Caps (G) into each rail.

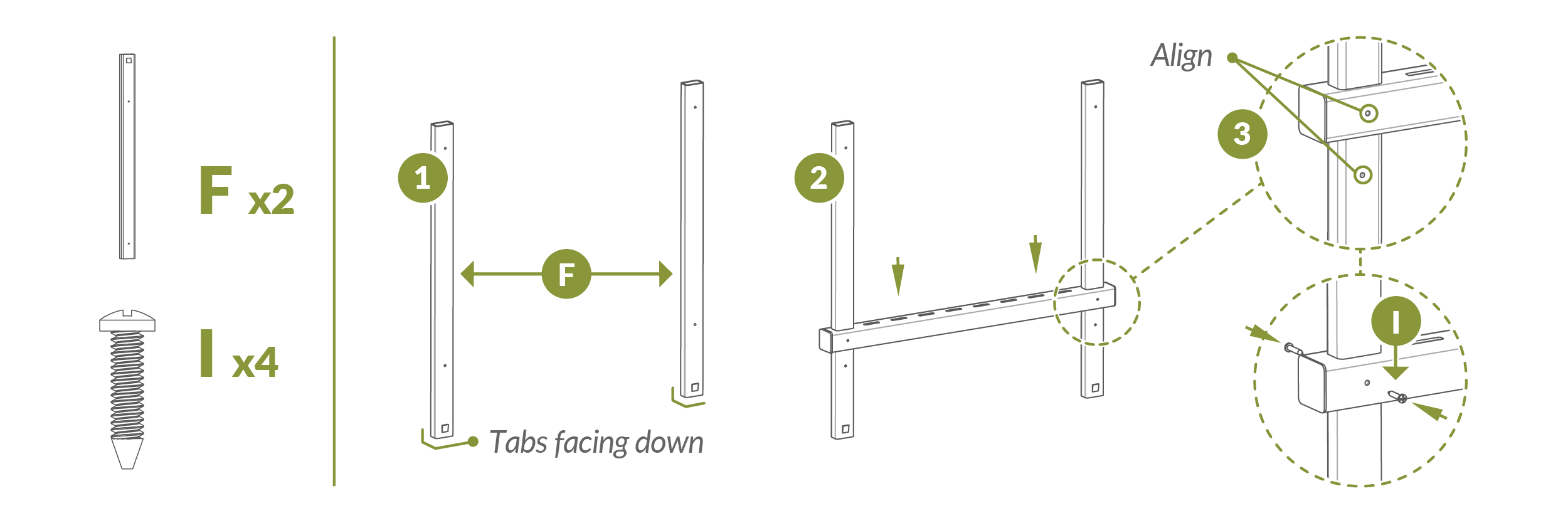

• Position (2) Posts (F) as shown.
• Slide the top rail over the posts and align pre-drilled holes.
• Drive (4) ¾" Self-Drilling Stainless Steel Screws (I) into the pre-drilled holes.

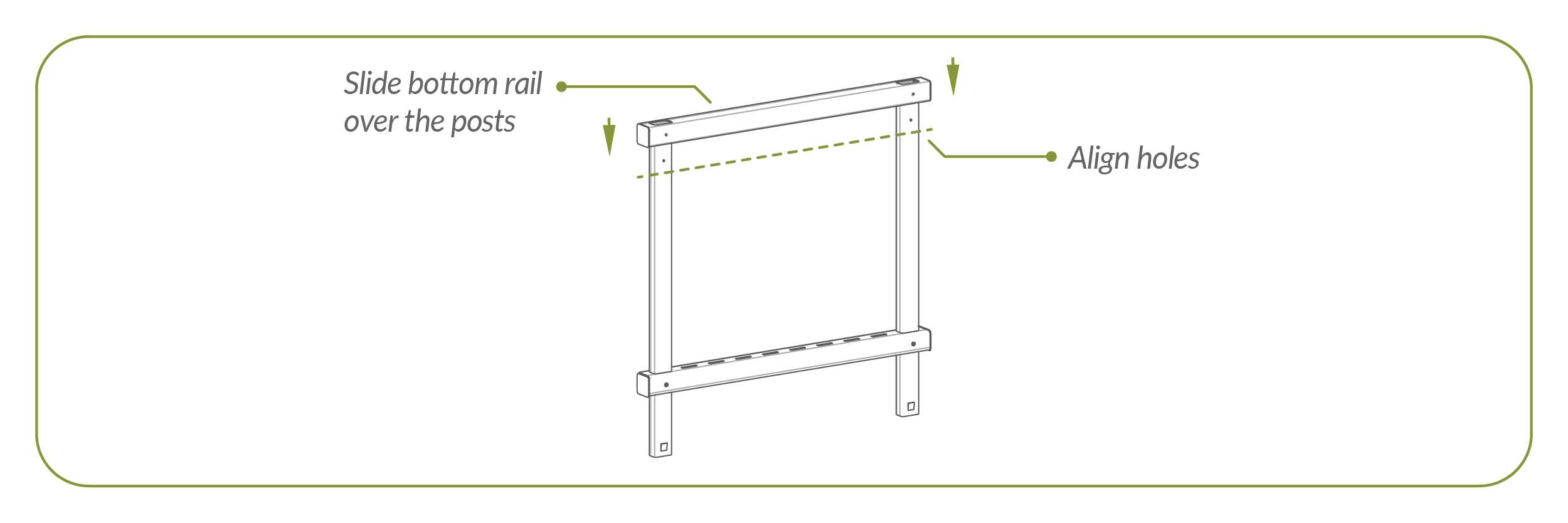

• Slide the bottom rail over the posts and align pre-drilled holes.

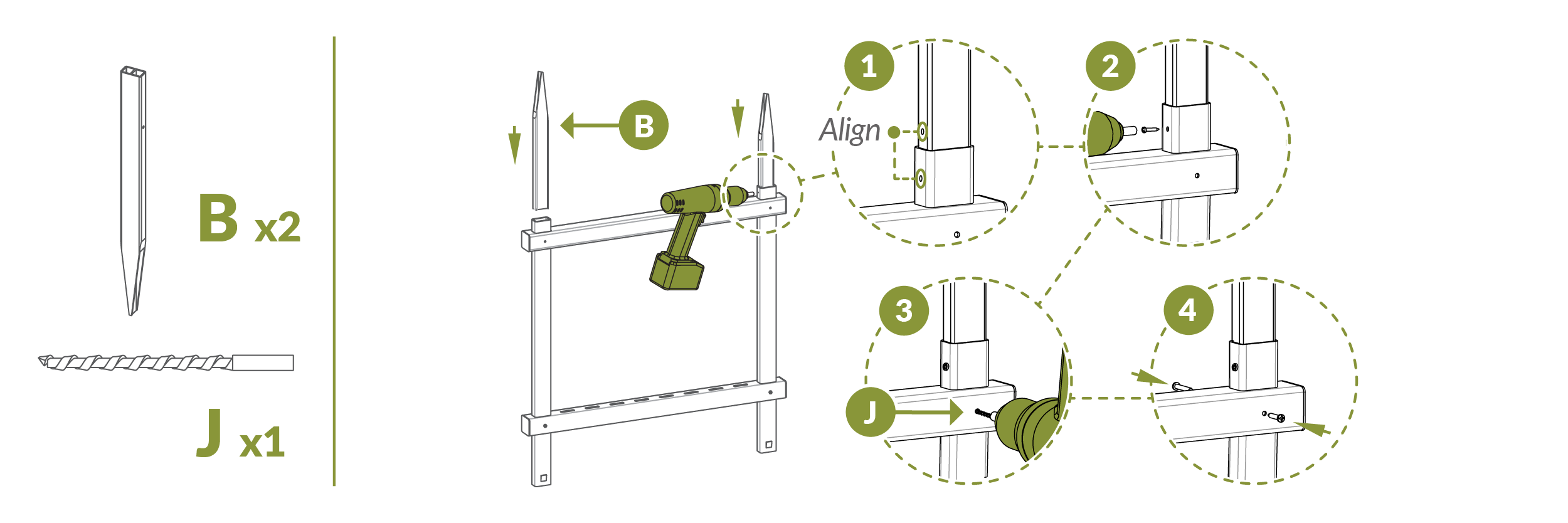

• Slide the Post Anchors (B) 4" into the bottom of the posts (8" exposed).
• Use the ⅛" Drill Bit (J) to drill (4) total holes through the bottom rail and post anchor.
• Fasten with (4) ¾" Self-Drilling Screws (I).

• Slide bottom rail fully into place and secure as illustrated.

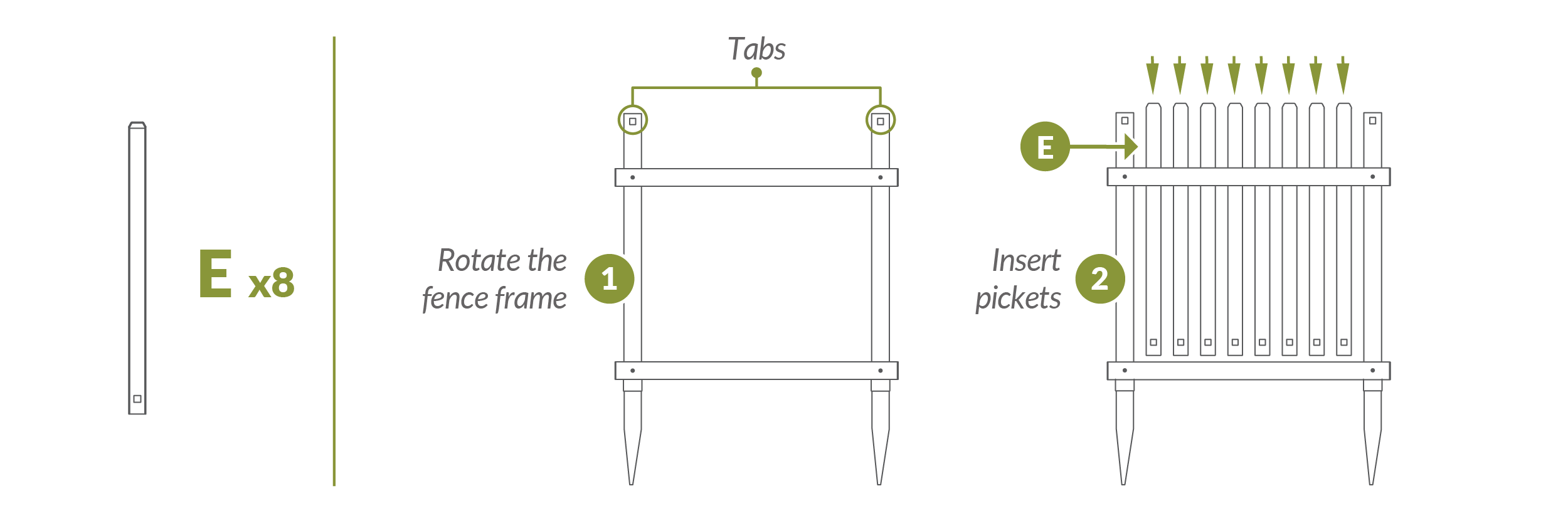

• Rotate fence frame so post tabs face upward.
• Insert (8) Pickets (E) into the picket holes in the top and bottom rails.

• Repeat Steps 1–3 to assemble the remaining two fence panels.

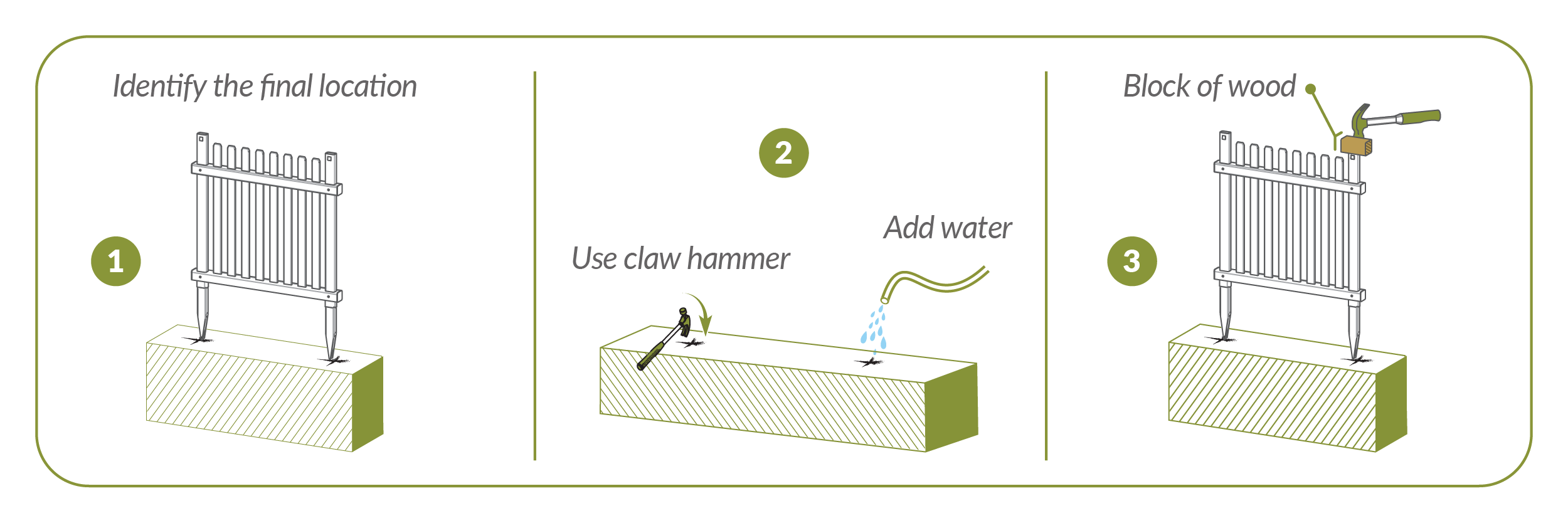

• Move fence panel to desired location and mark post positions.
• Loosen the top 6" of soil with a claw hammer.
• Add water to soften ground.
• Push fence panel into the ground until post anchors are fully buried.
• Using a block of wood to protect the post, gently hammer posts into ground.

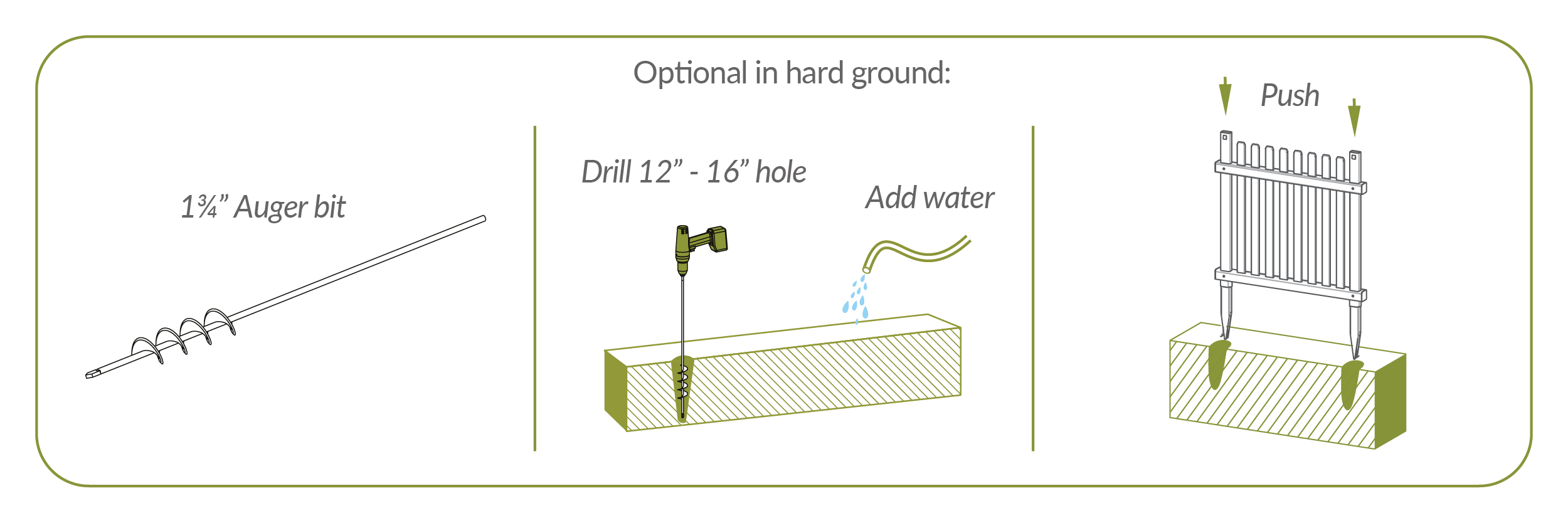

Optional for hard ground:

• Use a 1¾" auger bit.
• Drill 12"–16" deep holes and fill with water.
• Push posts into holes.

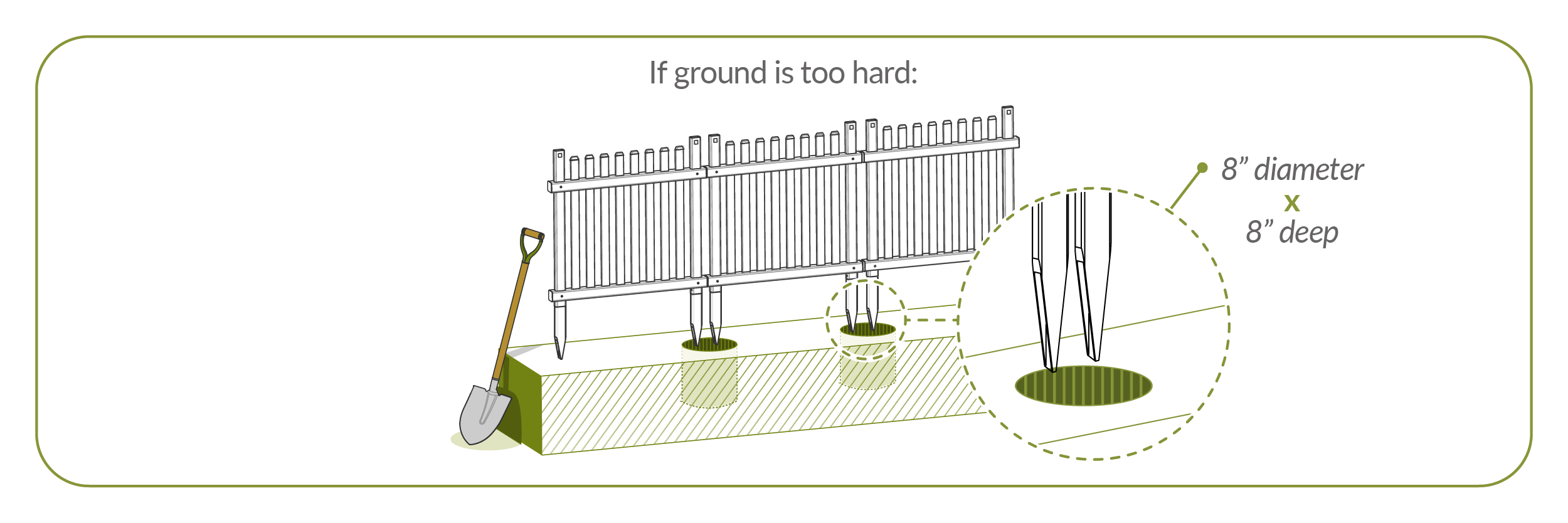

• If ground is too hard, dig two 8" diameter x 8" deep holes

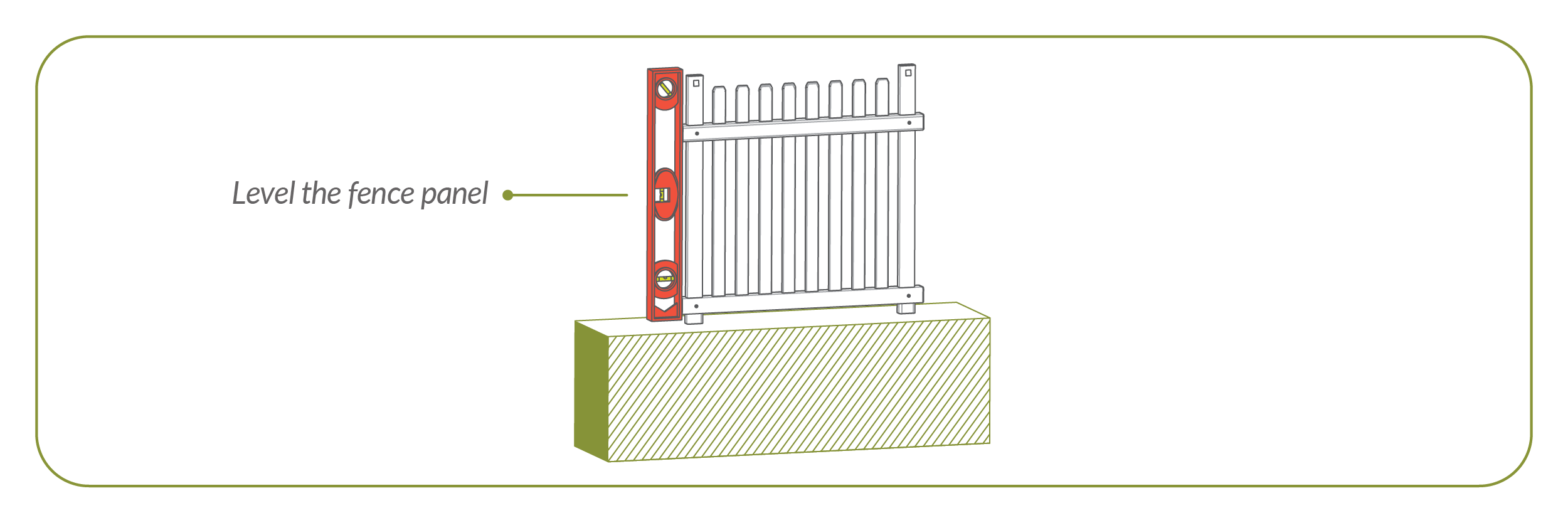

• Level the fence panel, backfill excavated dirt, and tamp firmly.

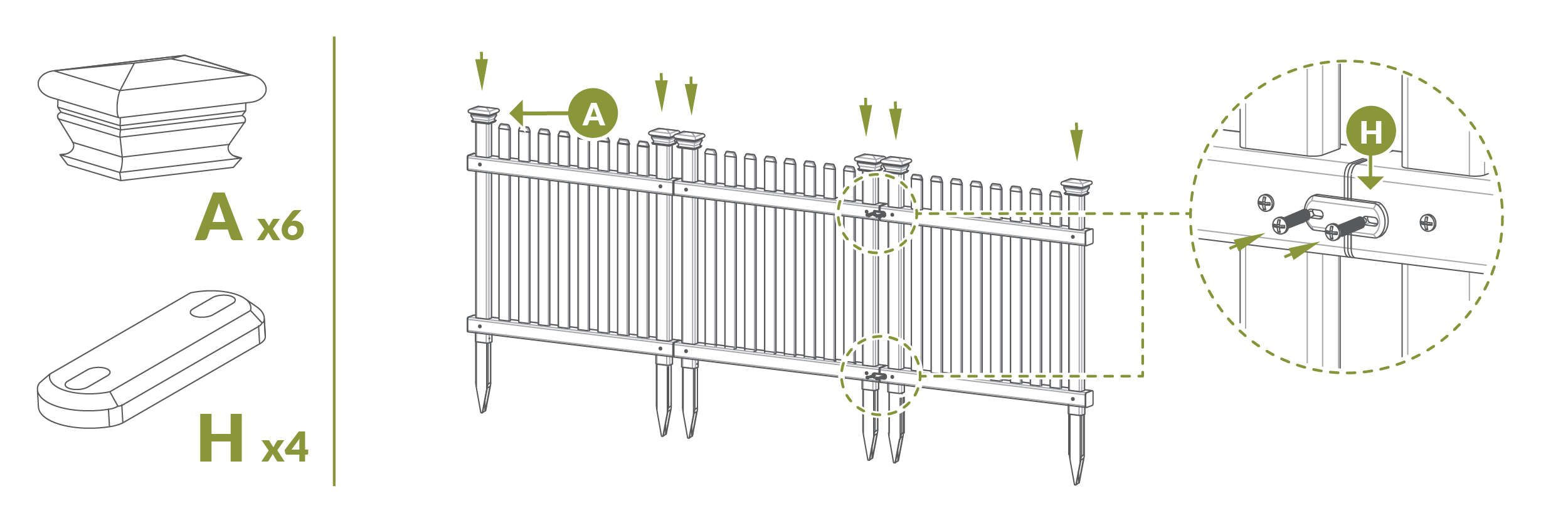

• Push Post Caps (A) onto posts to lock in place.
• Straight-line layout: Use (2) Joiner Clips (H) and (4) screws (I).

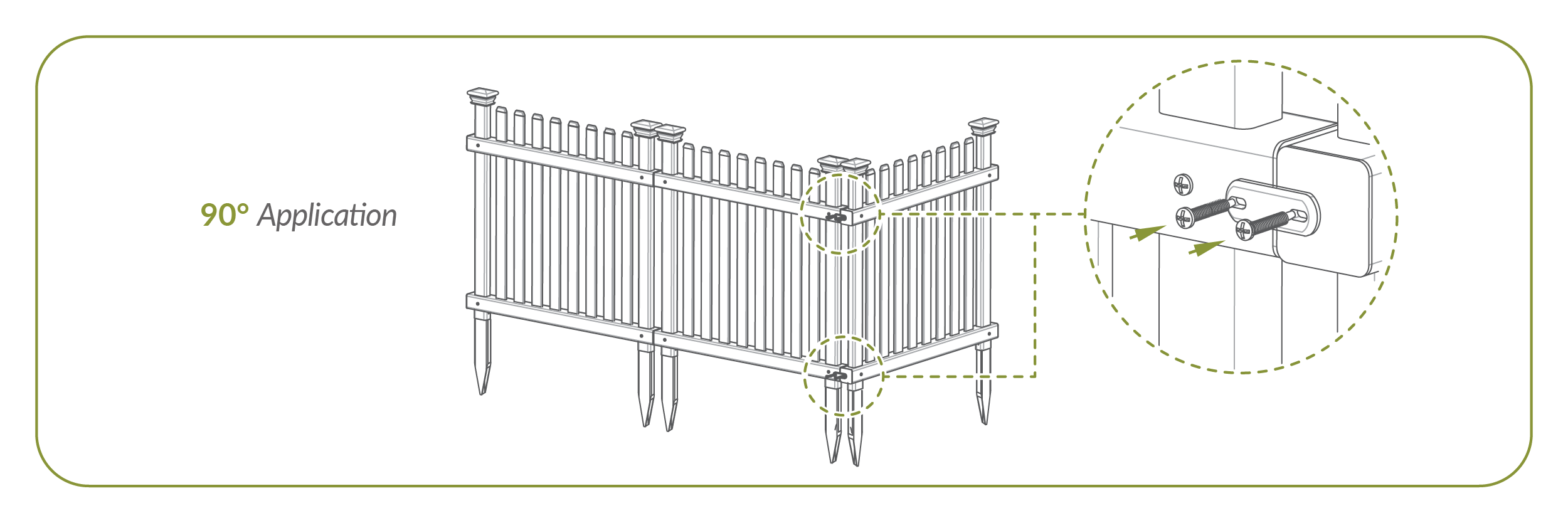

• Corner layout (90°): Use (2) Joiner Clips (H) and (4) screws (I).
