Vinyl Poolside Organizer (White)

ZP19061 Poolside Organizer (32" W X 64" L X 36" H) Assembly Instructions

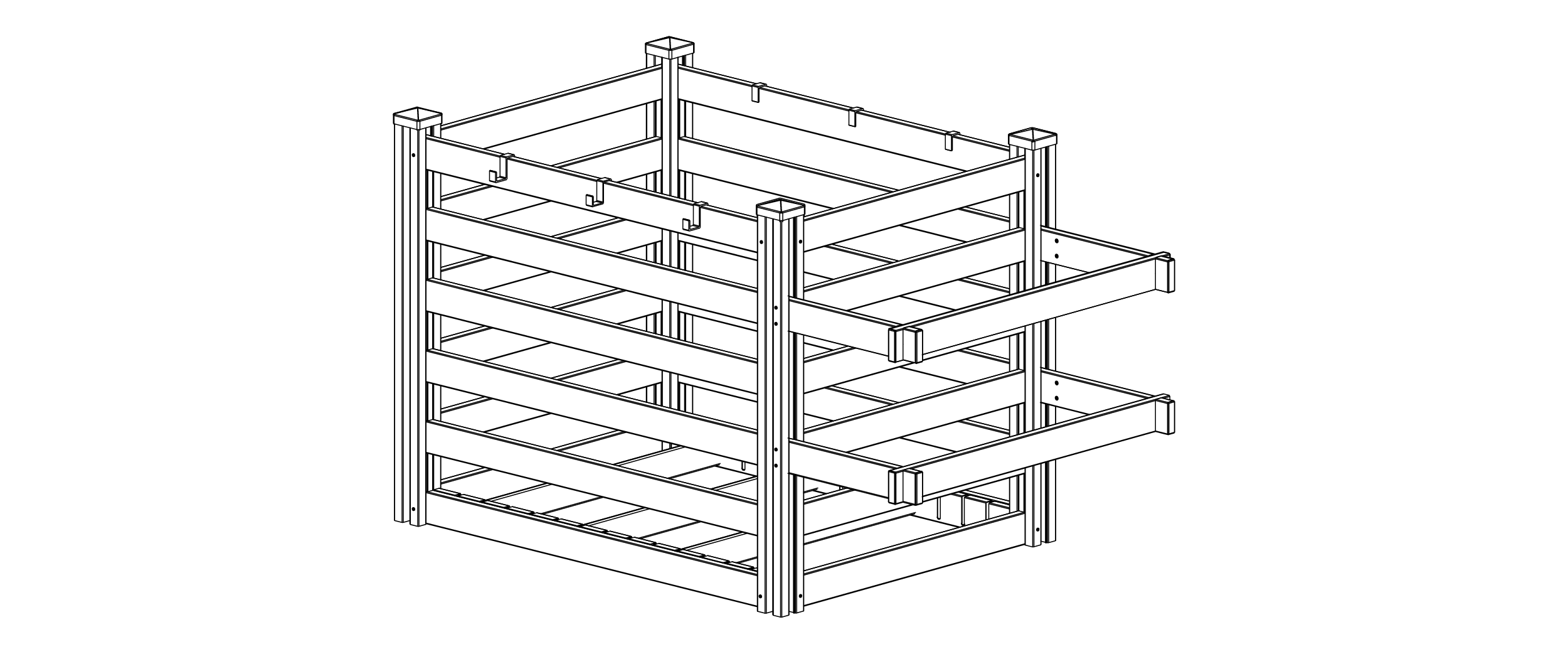

ZP19061 Cover Image

Approximate assembly time: 60 MIN

Click here to watch an installation video.

Introduction

General Information

Important Safety Notes:

  • Check the inside of the larger pieces in your box for other materials packed inside.
  • When assembling components, place them on a non-abrasive surface (i.e., shipping box) to avoid scratching.
  • We recommend an area approximately 5’ x 8’ for unobstructed assembling.
  • You should not need to use excessive force when assembling components.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is happy to help.

Customer service agents are available 9am–5pm EST, Monday–Friday. Leave a voicemail if outside of business hours and it will be returned within 1 business day.

For Quick Assistance:

  • Have reference item number ZP19061
  • Provide the specific part name (see list here)
  • Include the batch lot number (stamped on the end of the box)

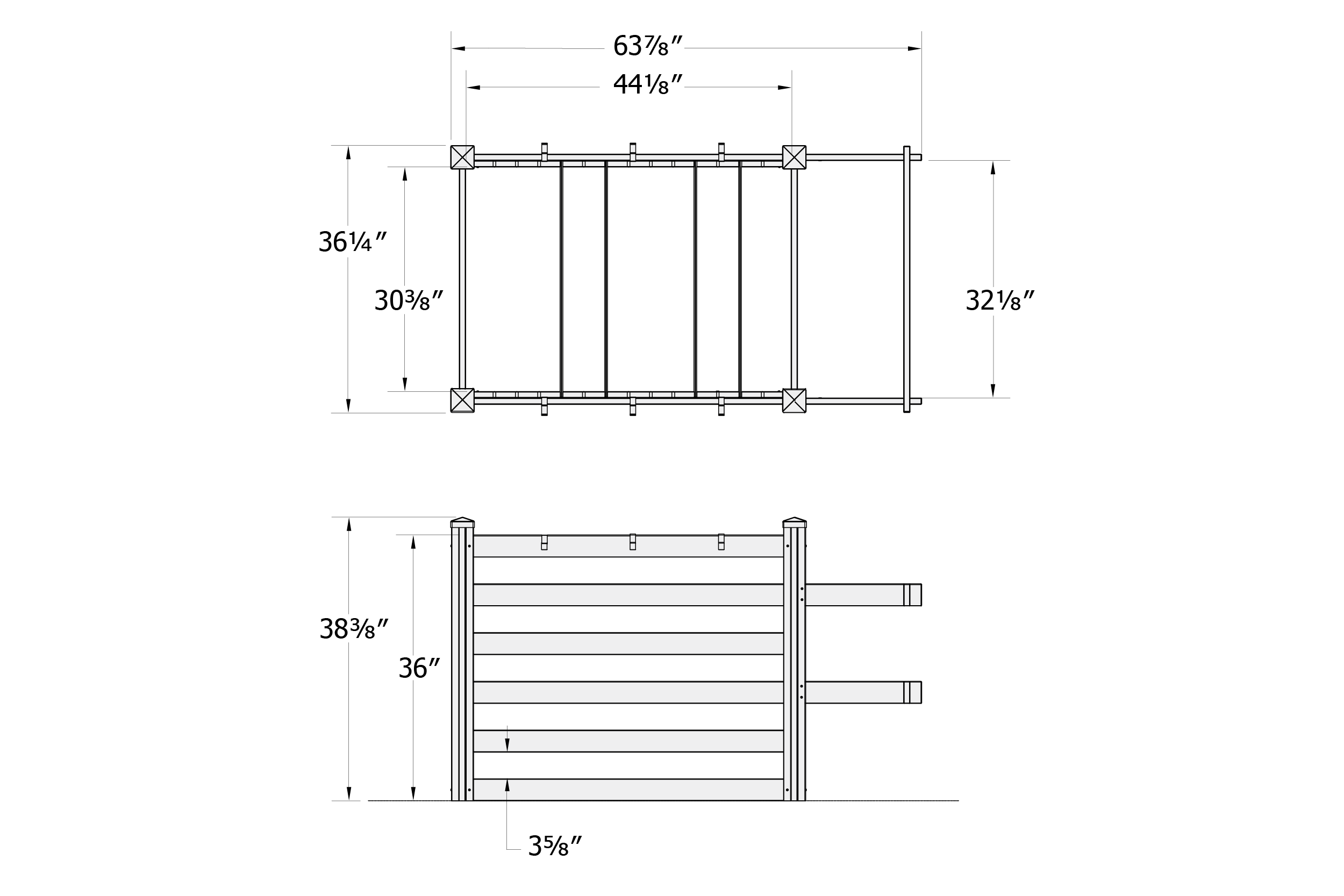

Detailed Dimensions & Specifications

ZP19061 Dimensions

Part Identification

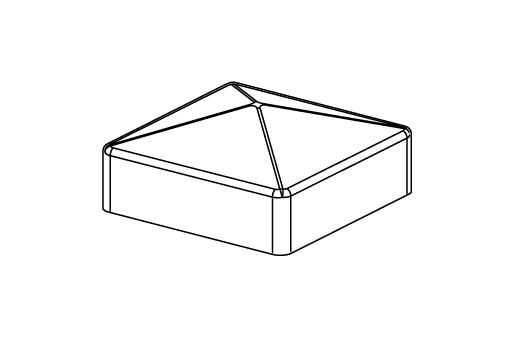

A. Post Cap (4)

ZP19061 Post Cap

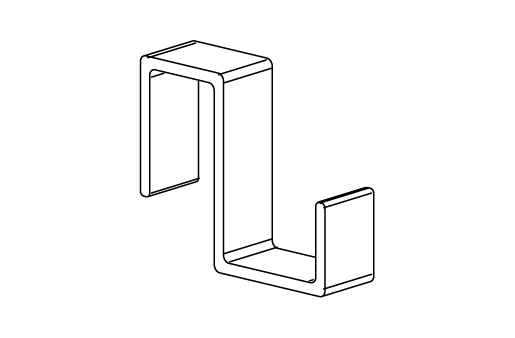

B. Towel Hook (6)

ZP19061 Towel Hook

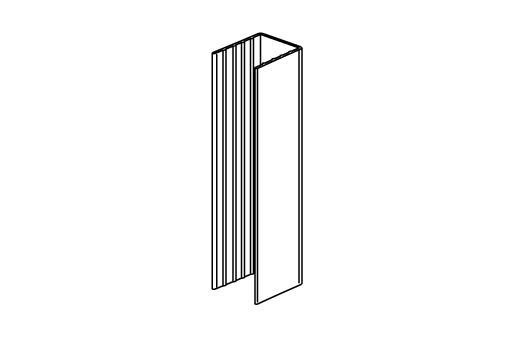

C. Spacer (40)

ZP19061 Spacer

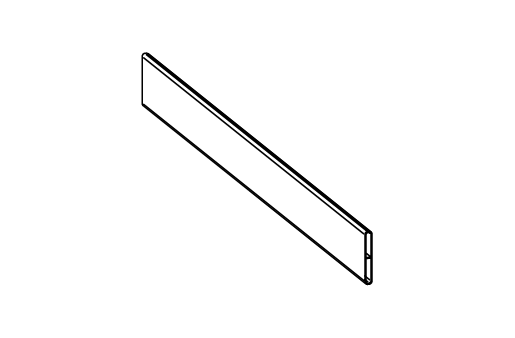

D. Floor Slat (4)

ZP19061 Floor Slat

⅜" x 2¾" x 32"

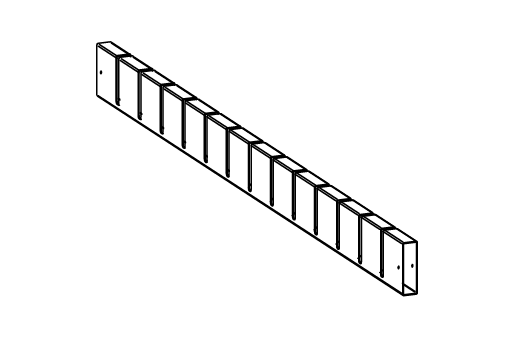

E. Slat Channel (2)

ZP19061 Slat Channel

⅞" × 3" × 42"

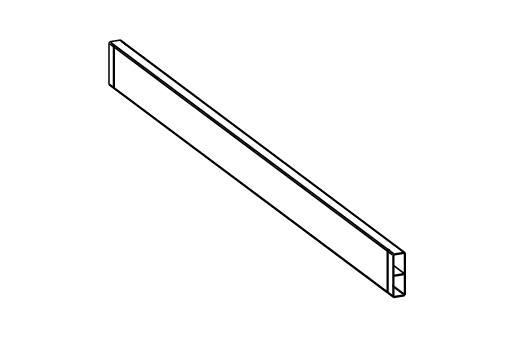

F. Long Horizontal Slat (12)

ZP19061 Long Horizontal Slat

⅞" × 3" × 44"

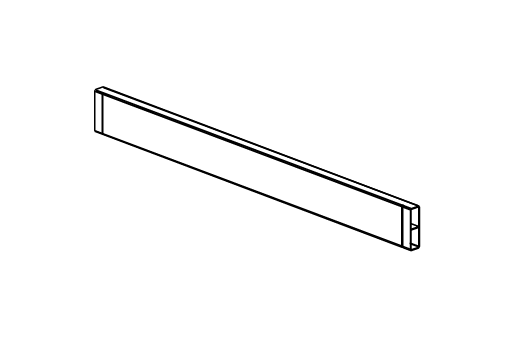

G. Short Horizontal Slat (12)

ZP19061 Short Horizontal Slat

⅞" × 3" × 32"

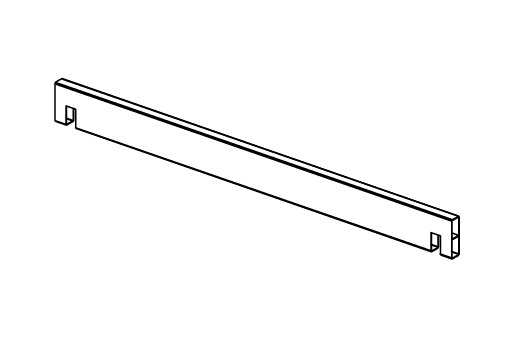

H. Long Basket Holder (2)

ZP19061 Long Basket Holder

⅞" × 3" × 35⅞"

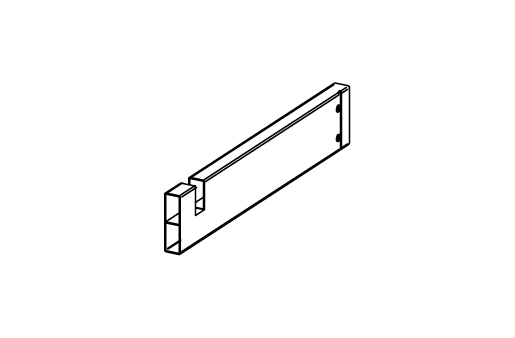

I. Short Basket Holder (4)

ZP19061 Short Basket Holder

⅞" × 3" × 15⅞"

J. Post (4)

ZP19061 Post

3" x 3" x 37¾"

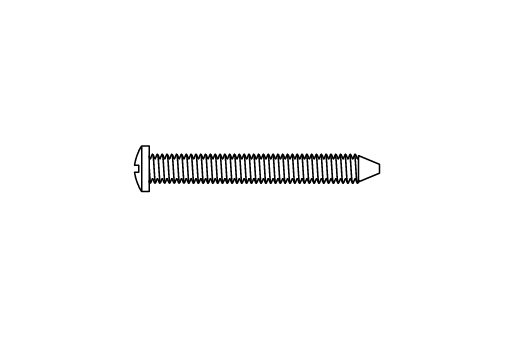

K. 1½" Self-Drlling Stainless Steel Screw (4)

ZP19061 1 1/2” Self-Drilling Stainless Steel Screw (4)

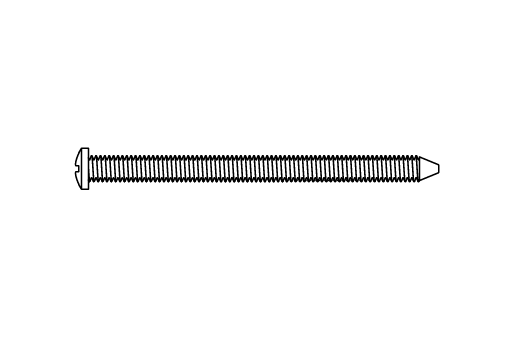

L. 2½" Self-Drlling Stainless Steel Screw (24)

ZP19061 2 1/2” Self-Drilling Stainless Steel Screw (24)

Assemble Unit

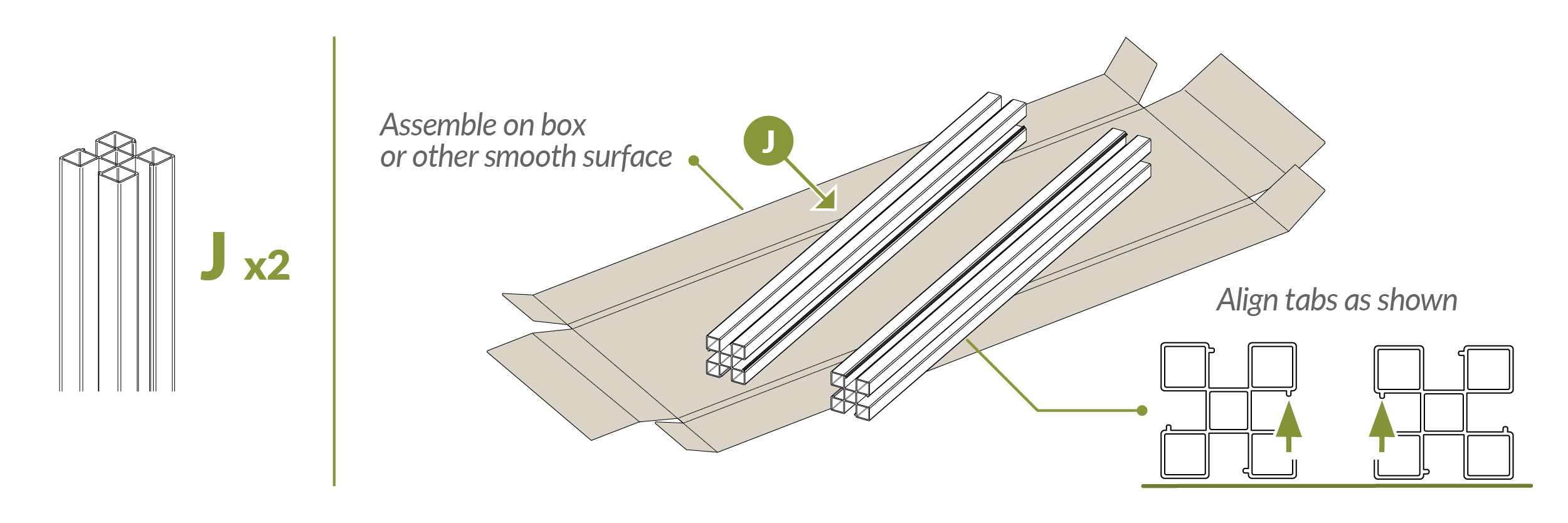

Step 1

ZP19061 Step 1

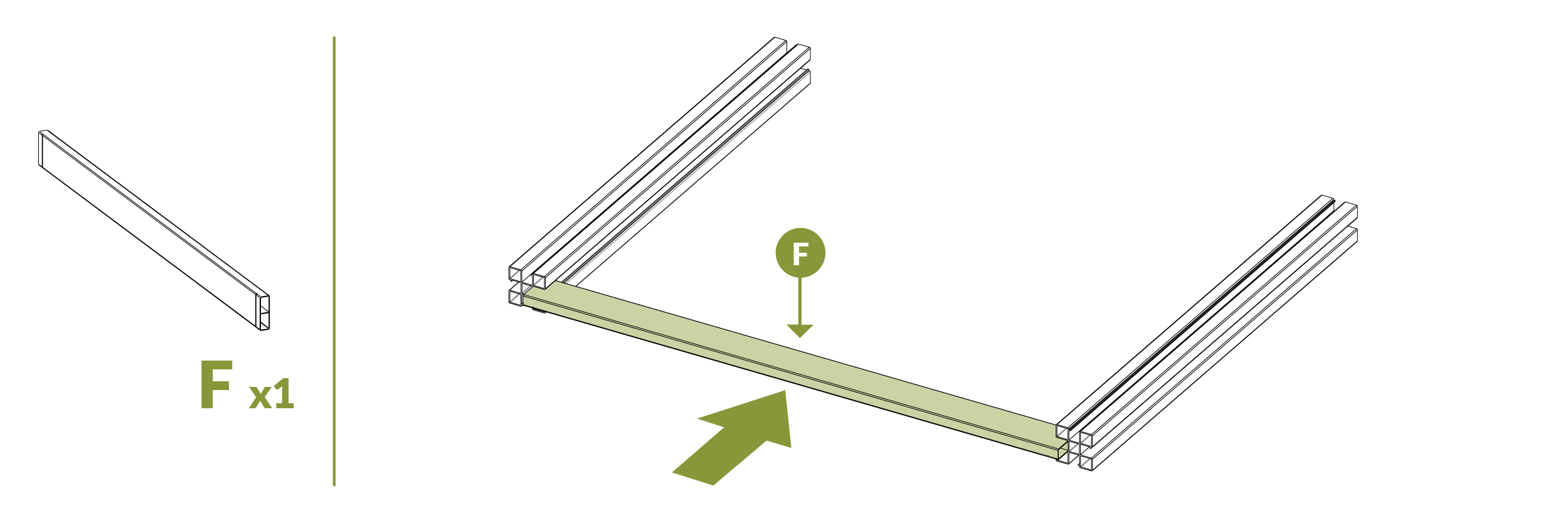

Step 2

ZP19061 Step 2

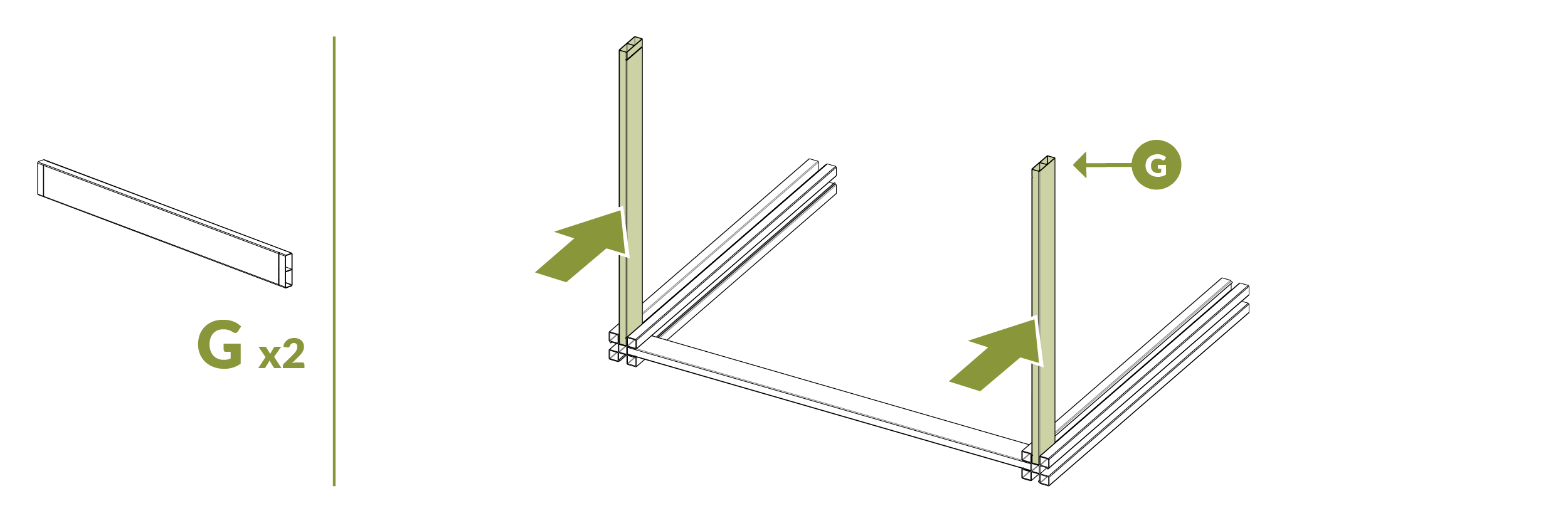

Step 3

Zp19061 Step 3

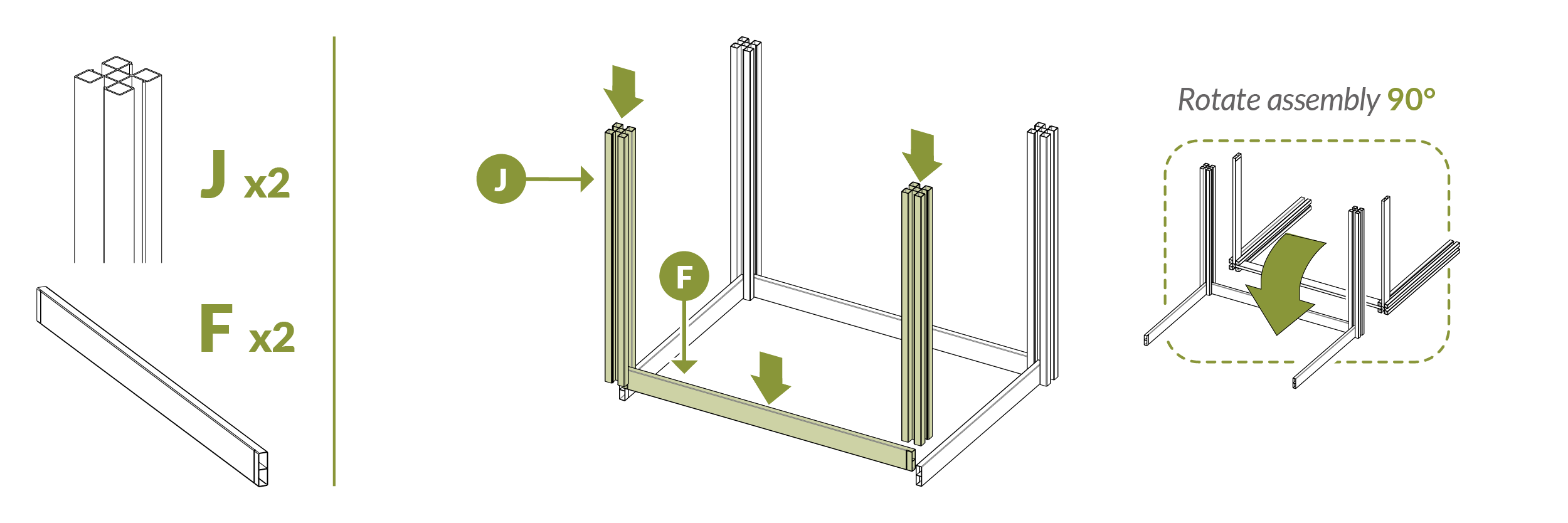

Step 4

ZP19061 Step 4

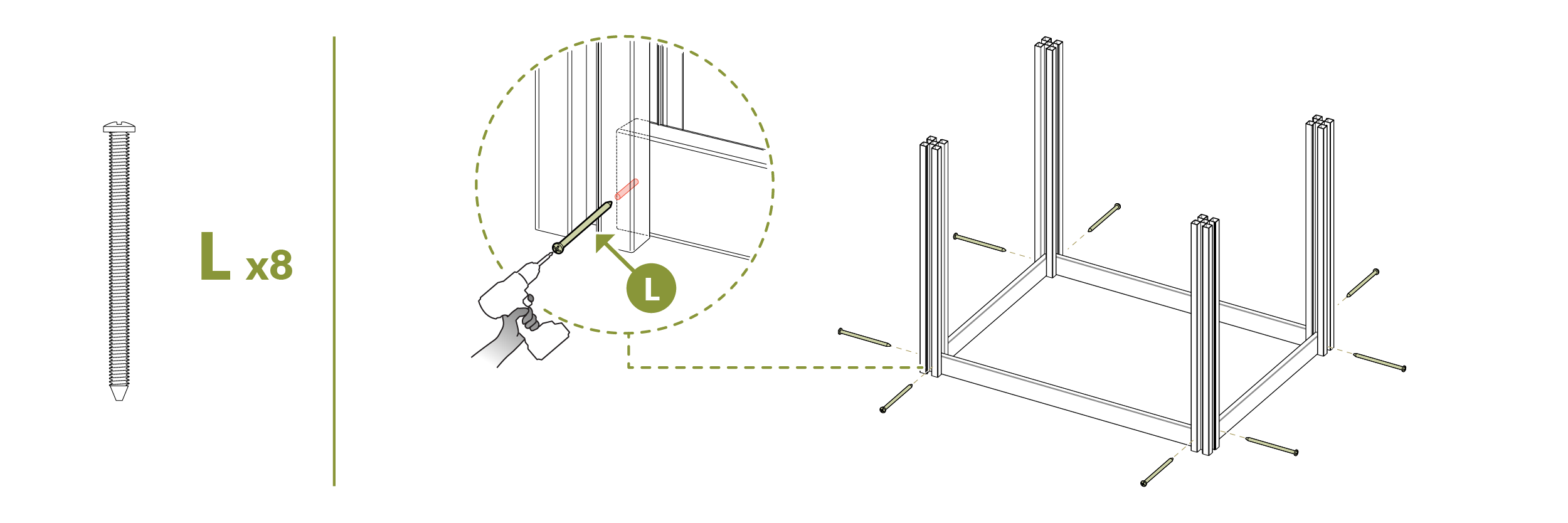

Step 5

ZP19061 Step 5

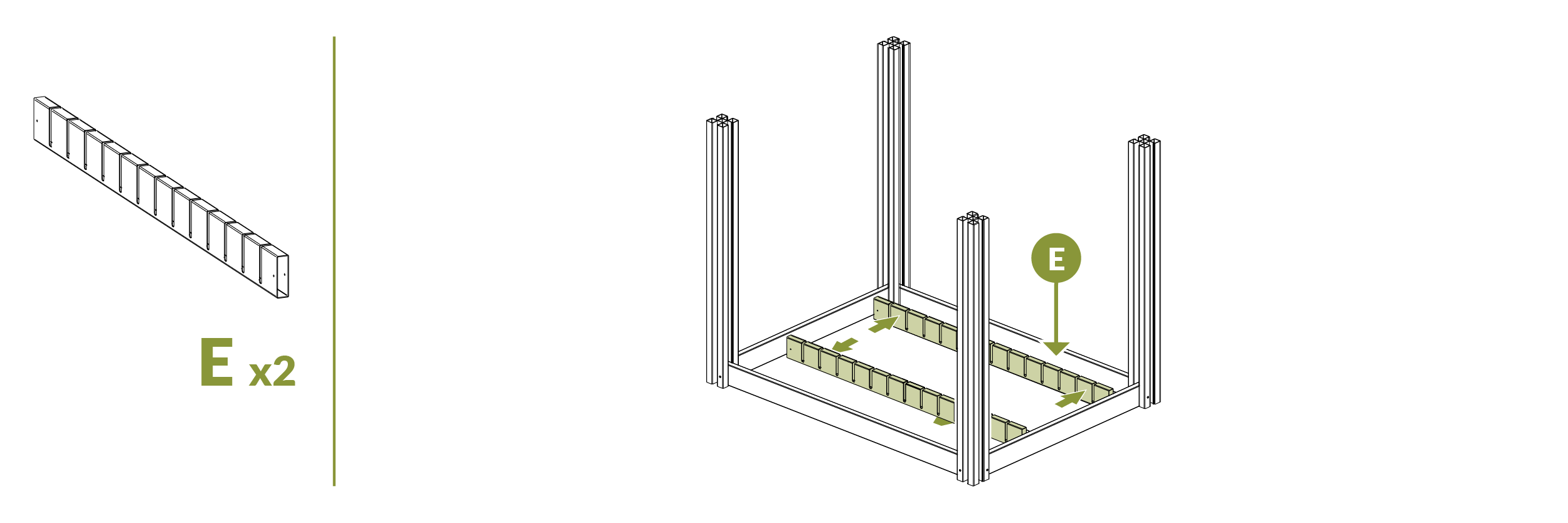

Step 6

ZP19061 Step 6

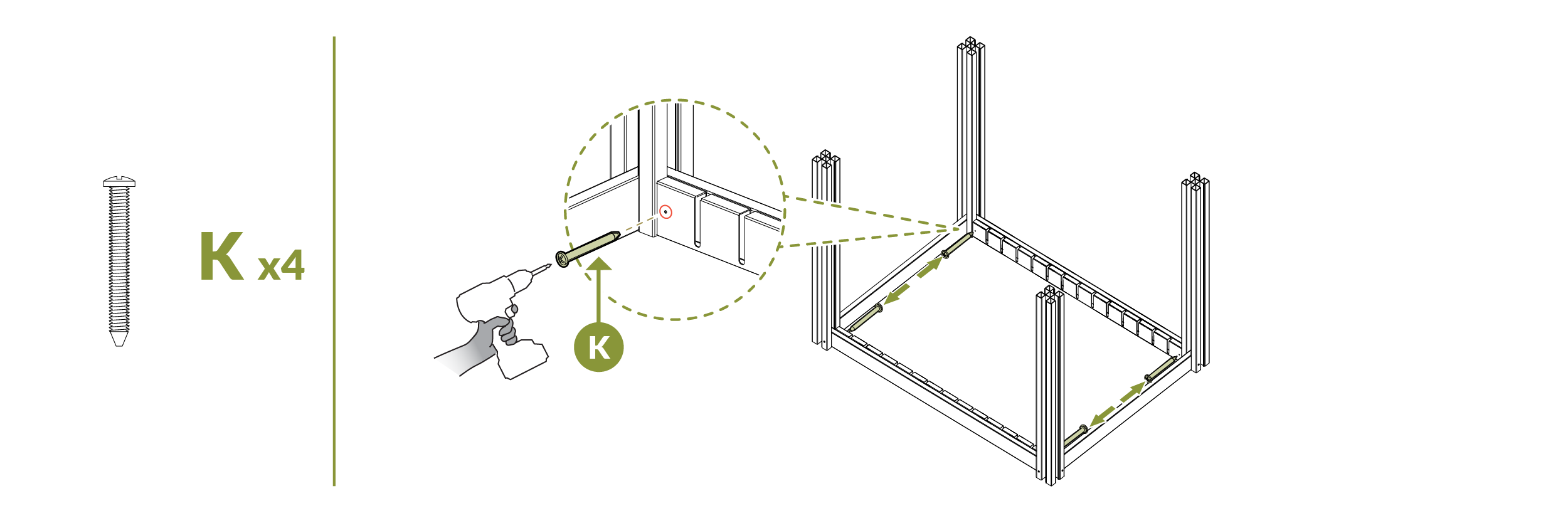

Step 7

ZP19061 Step 7

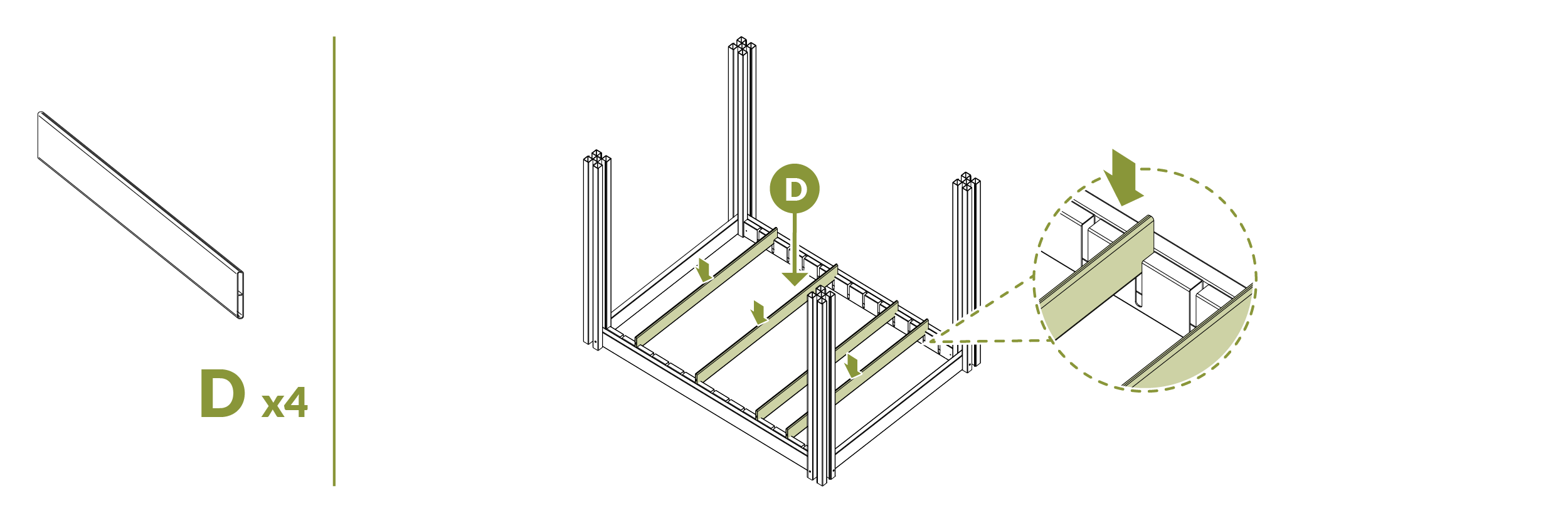

Step 8

ZP19061 Step 8

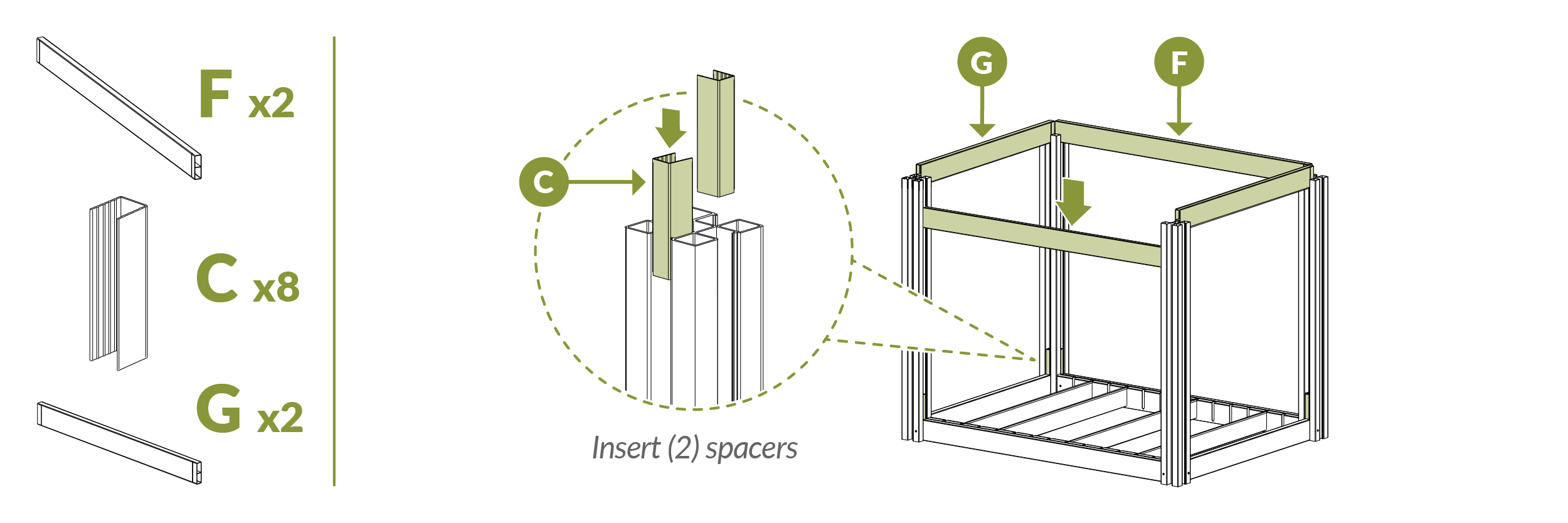

Step 9

ZP19061 Step 9

  • Insert (2) Spacers (C) into each post to create space between boards.

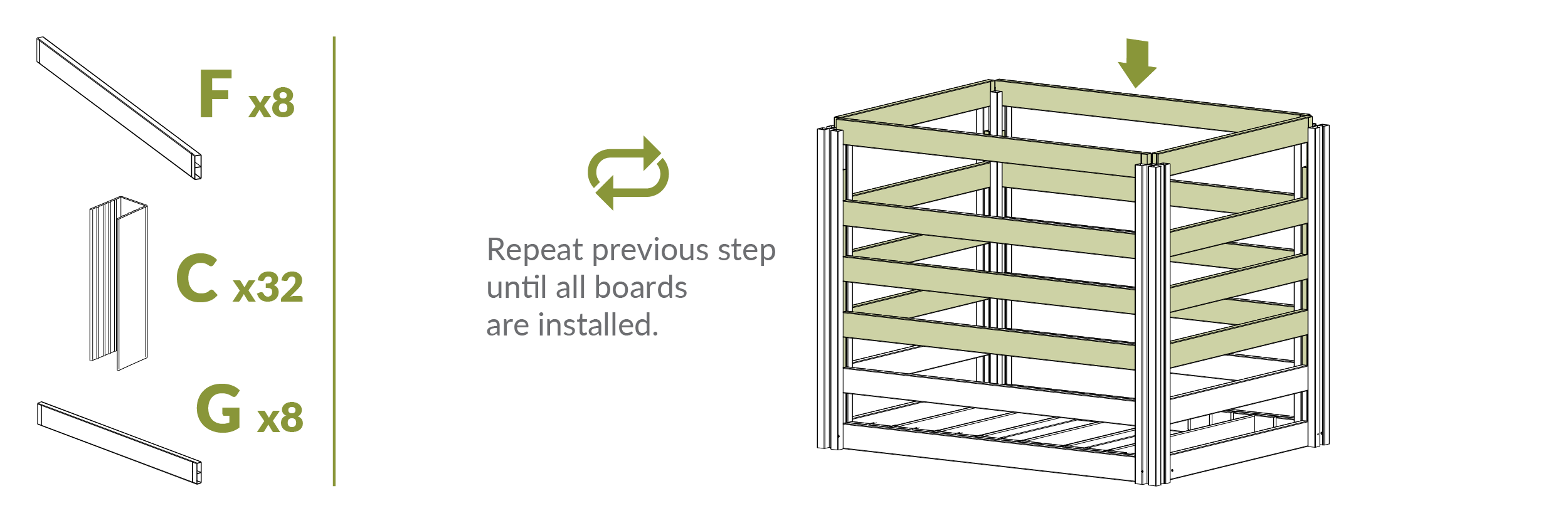

Step 10

ZP19061 Step 10

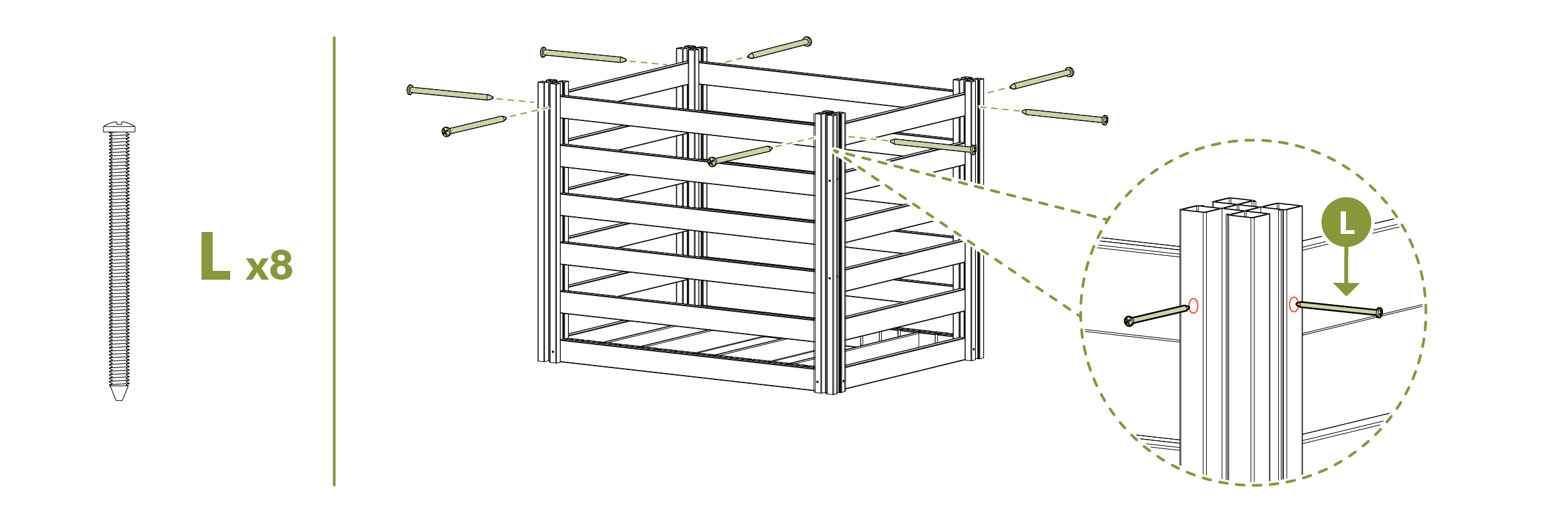

Step 11

ZP19061 Step 11

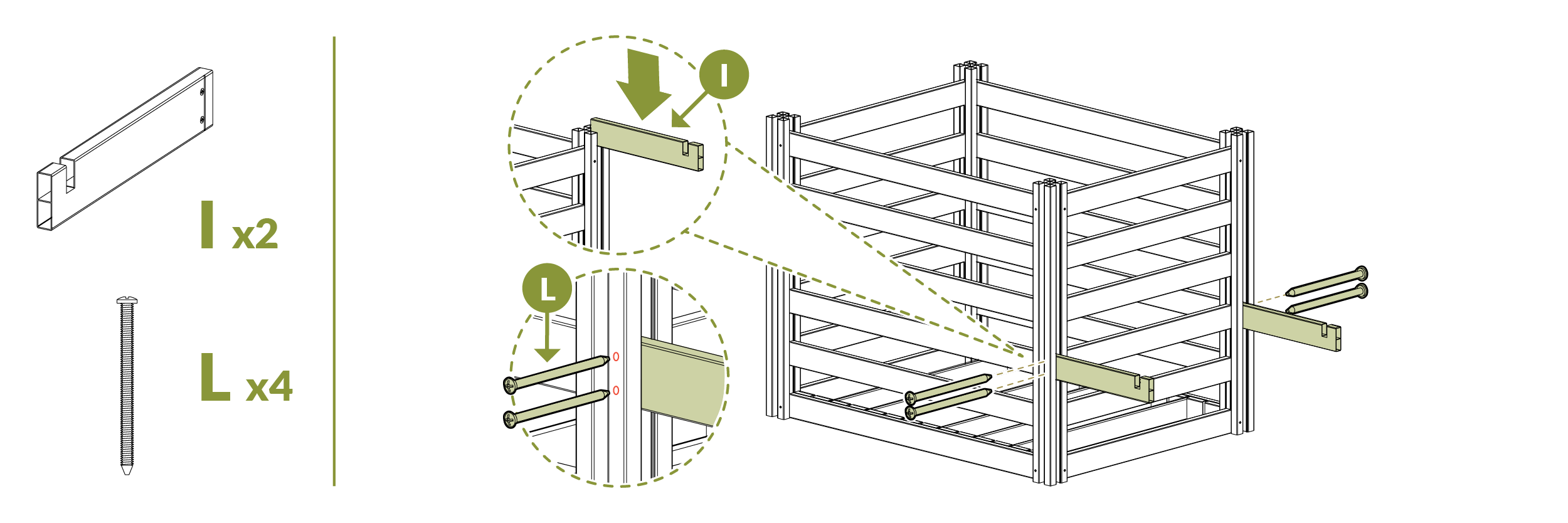

Step 12

ZP19061 Step 12

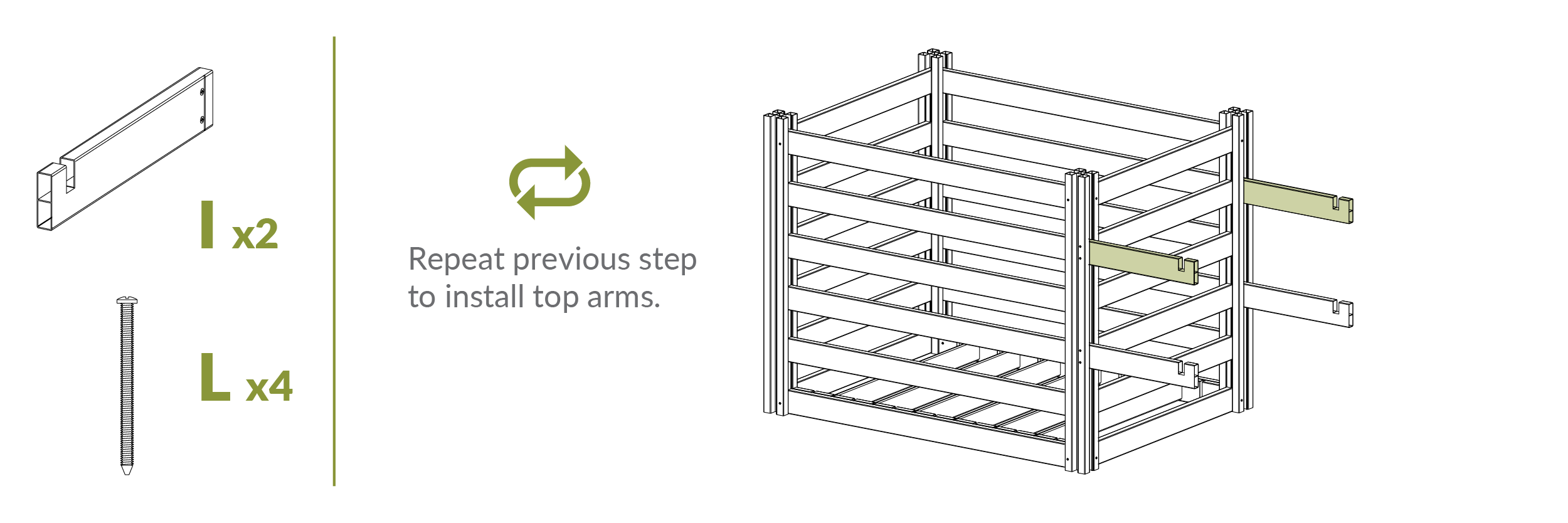

Step 13

ZP19061 Step 13

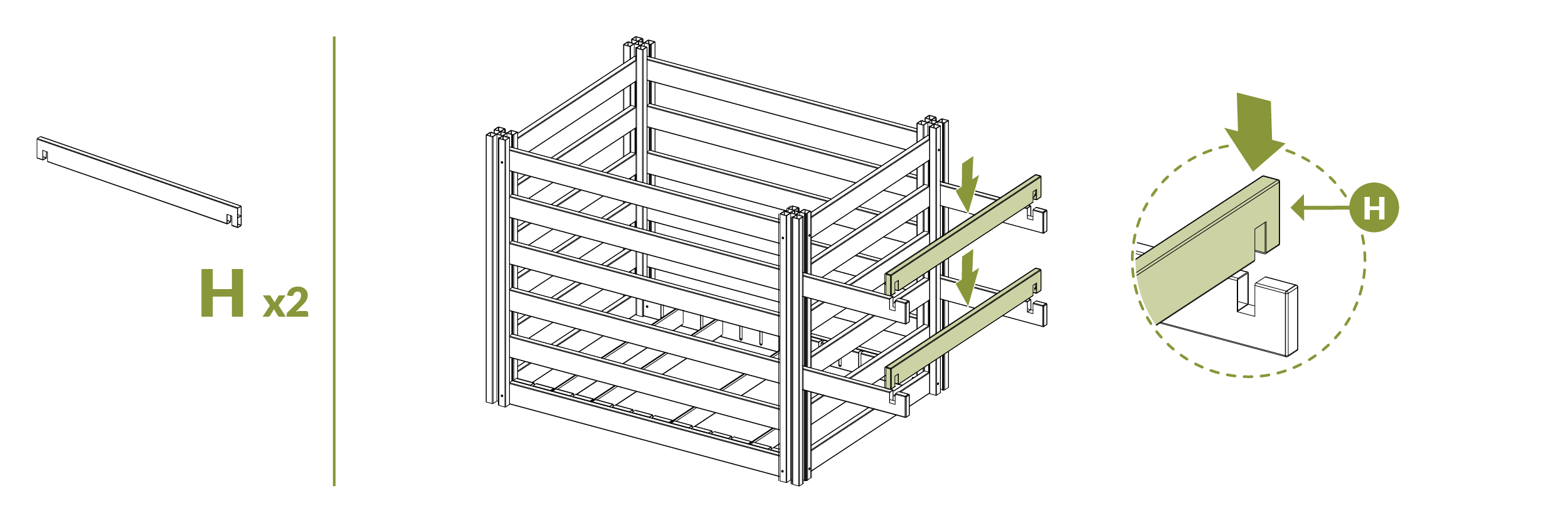

Step 14

ZP19061 Step 14

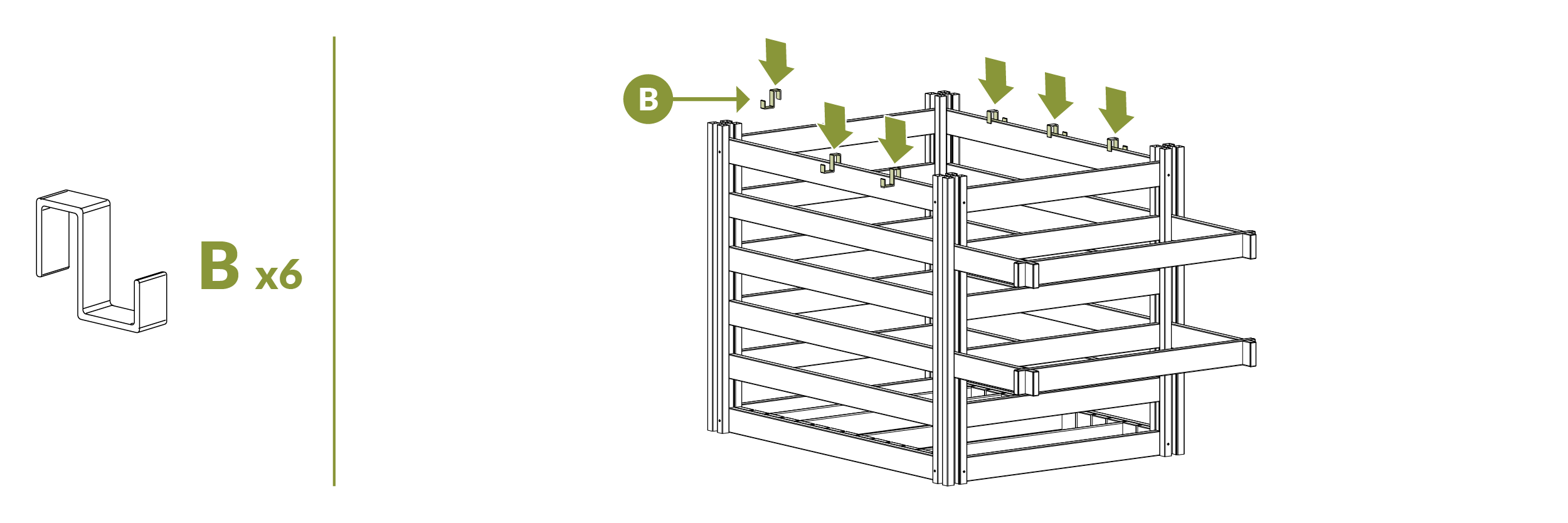

Step 15

ZP19061 Step 15

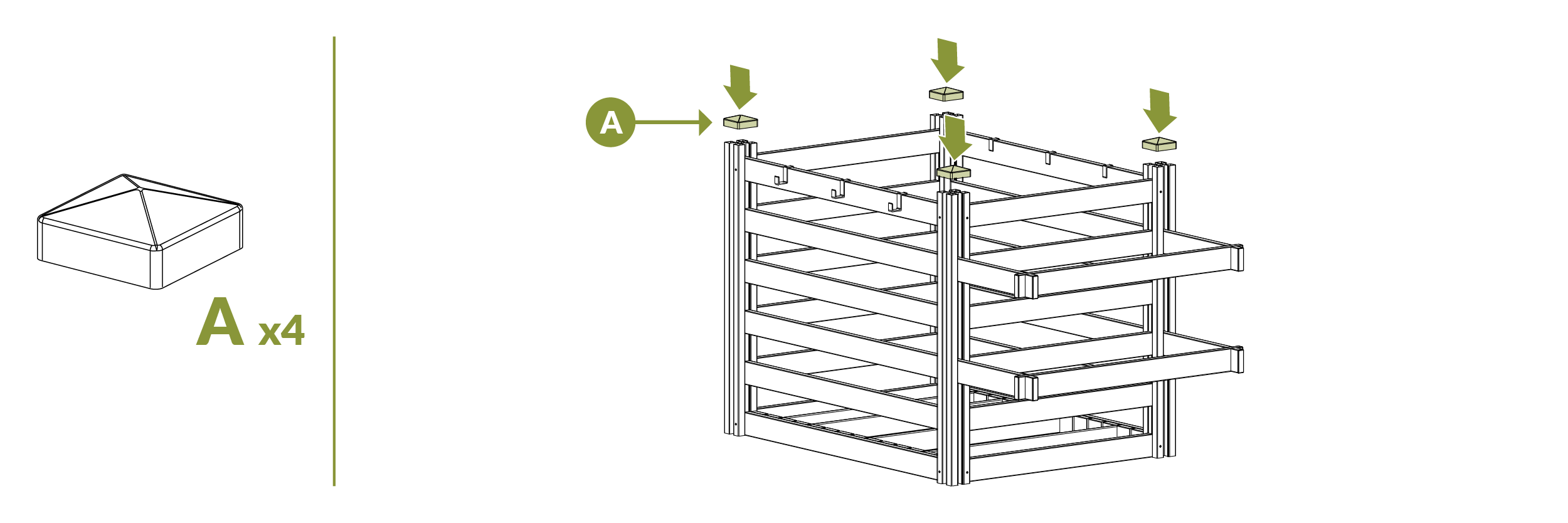

Step 16

ZP19061 Step 16
