General Information

Important Safety Notes:

• Check the inside of the larger pieces in your box for other materials packed inside.
• When assembling components, place on a non-abrasive surface (i.e. shipping box) to avoid scratching.
• We recommend an area approximately 5’ x 8’ for unobstructed assembling.
• You should not need to use excessive force when assembling components.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is happy to help.

• Website: https://parts.nychbrands.com
• Email: support@zippity-outdoor.com
• Phone: 704-892-5222 or 877-234-6196

Customer service agents are available 9am–5pm EST, Monday–Friday.

For Quick Assistance:

• Have reference item number ZP19048
• Provide the specific part name
• Include the batch lot number (stamped on the end of the box)

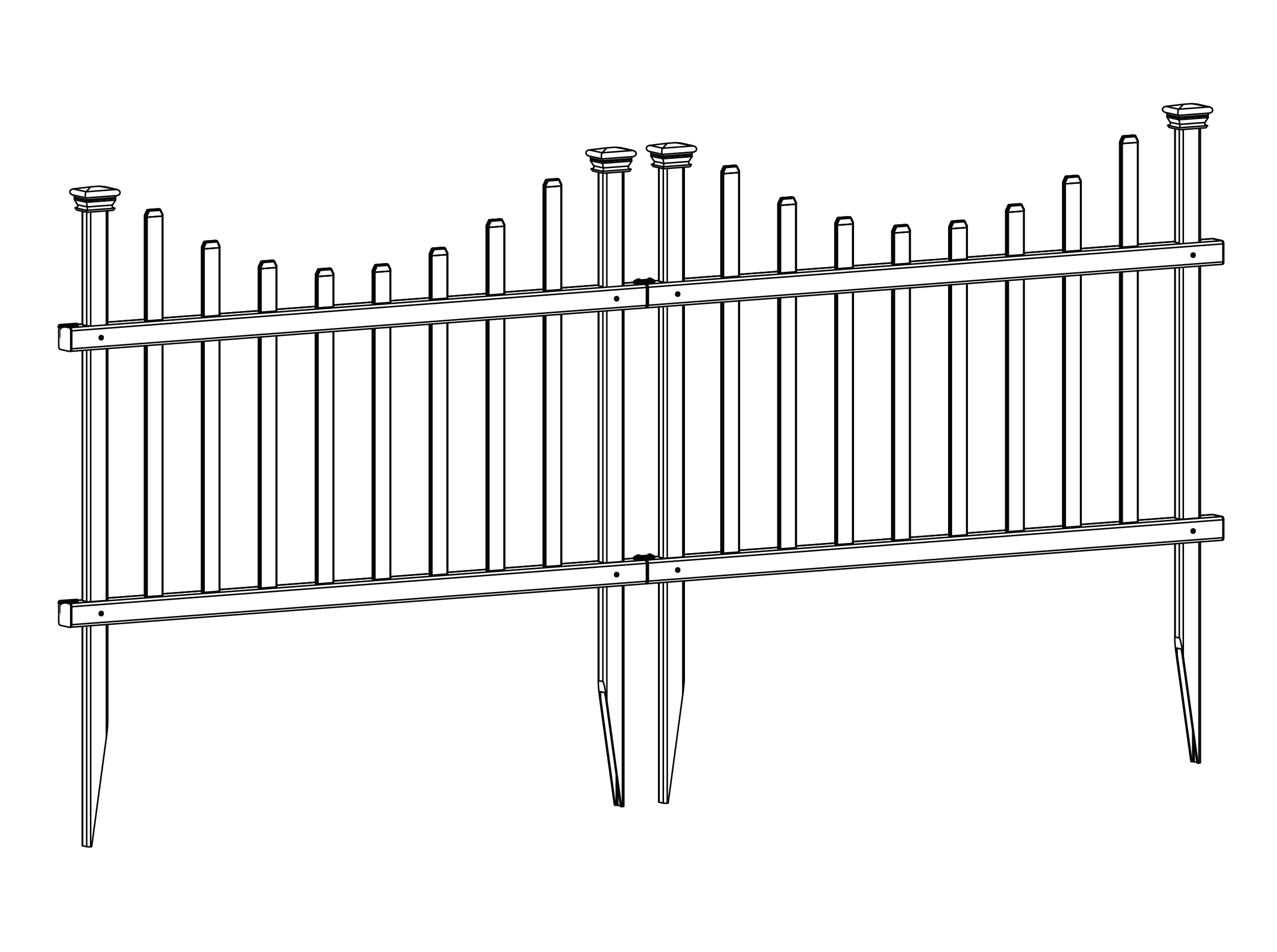

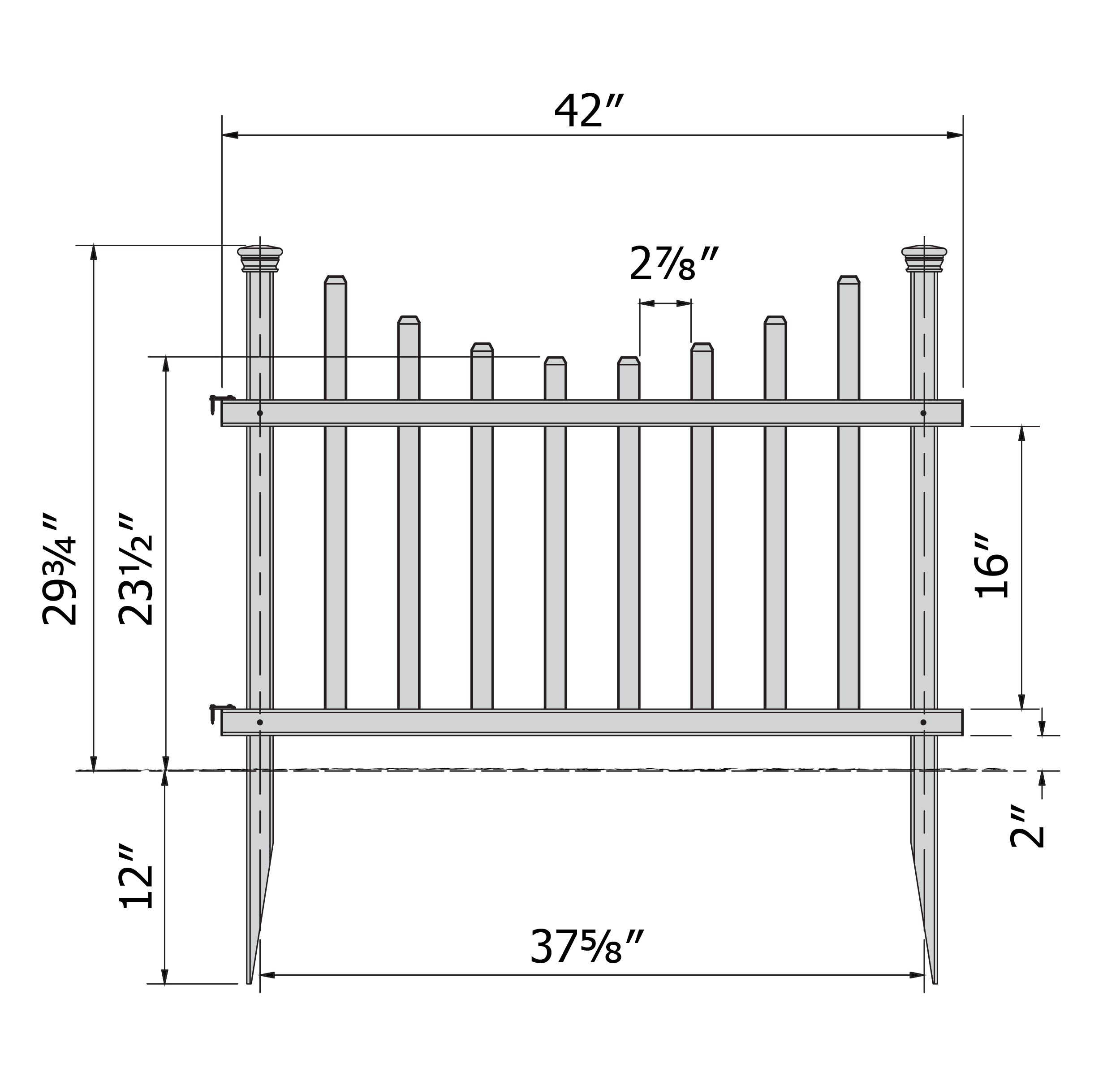

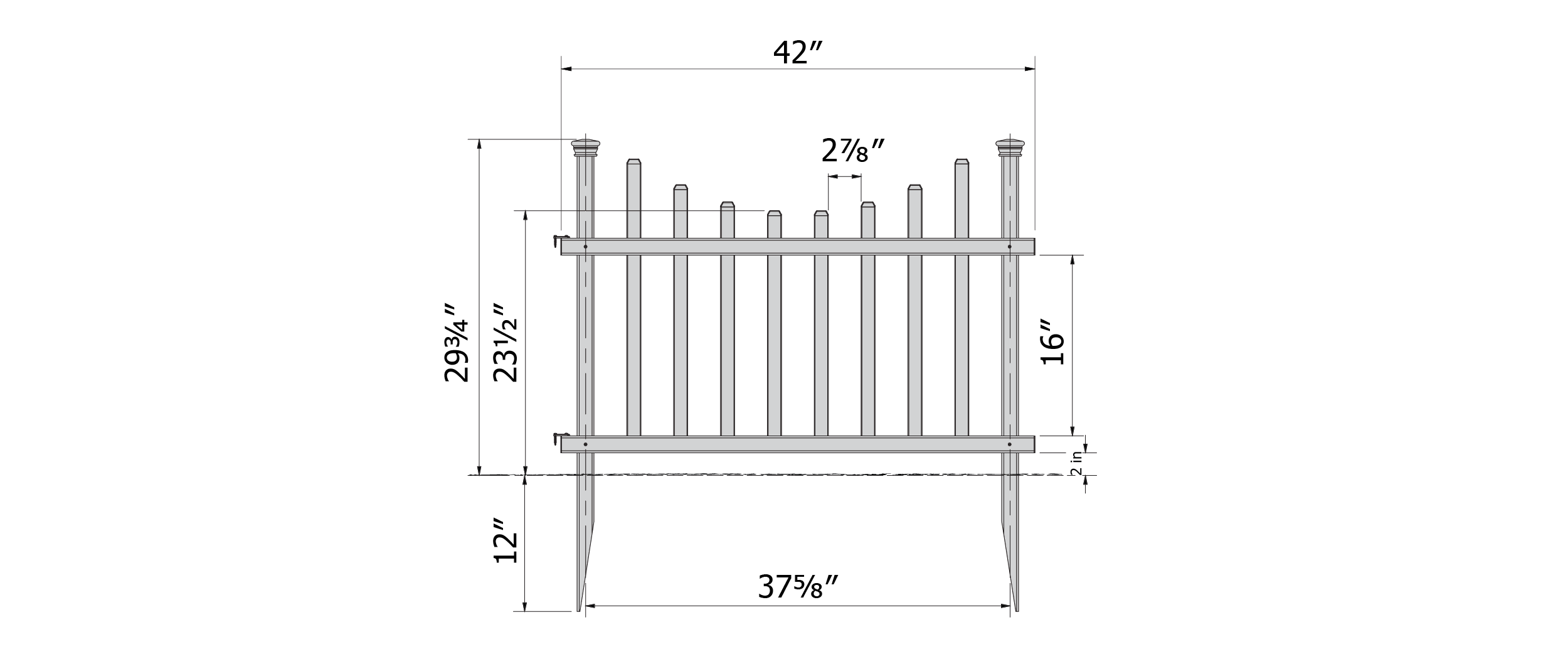

Detailed Dimensions & Specifications

Product Specifications:

• Panel Width: 42"
• Panel Height: 29¾”
• Stake Height: 41¾”
• Picket Spacing: 2⅞”
• Stake Depth: 12"
• Ground Clearance: 2"

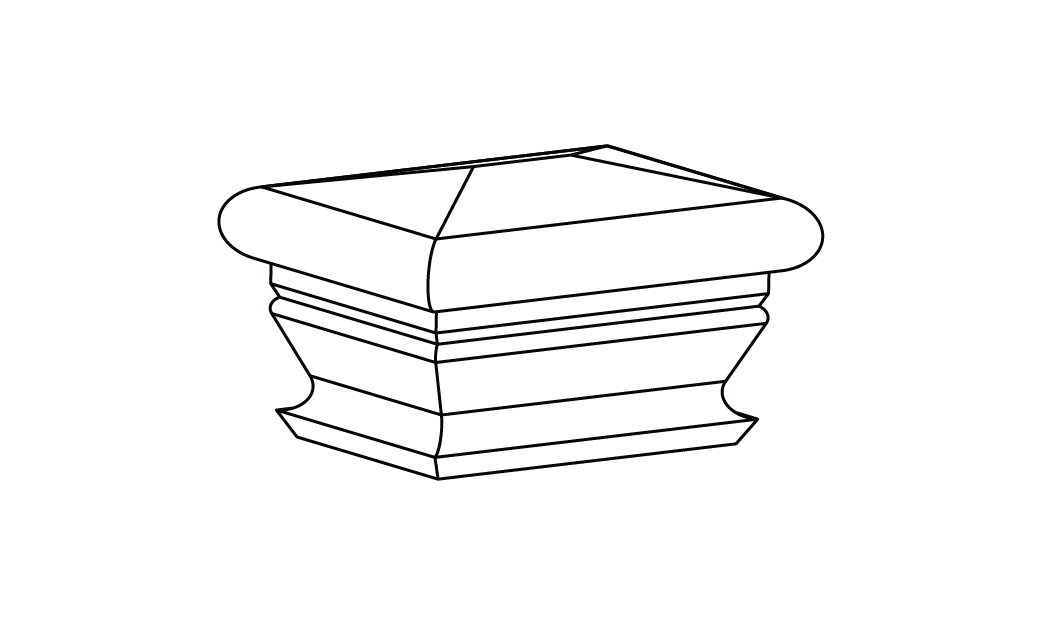

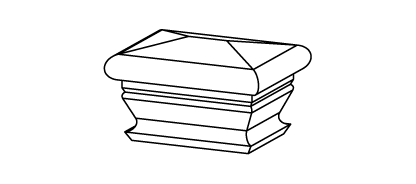

A. Post Cap (4)

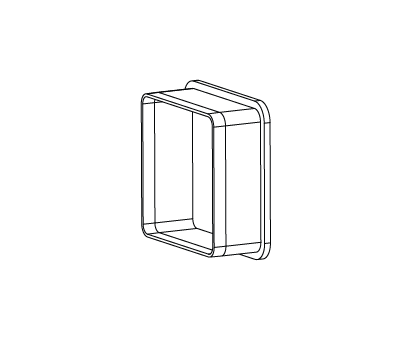

B. Rail End Cap (8)

4 loose, 4 installed

C. Top Rail (2)

1½” x 1½” x 41¾”

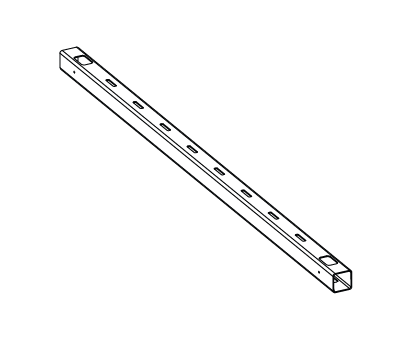

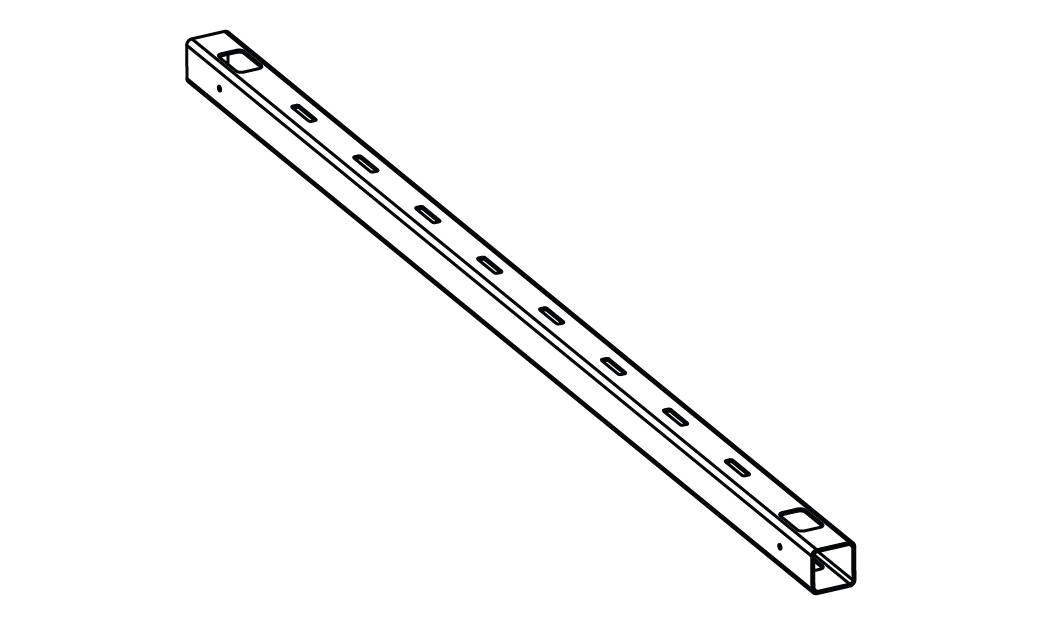

D. Bottom Rail (2)

1½” x 1½” x 41¾”

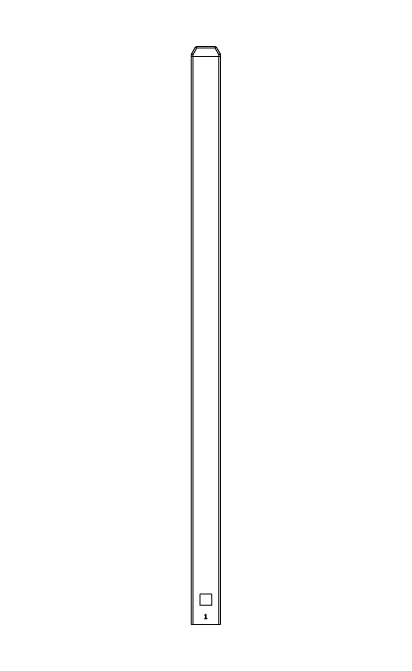

E. Picket (16)

#1 (4) – ¼” x 1¼” x 25½”
#2 (4) – ¼” x 1¼” x 23¼”
#3 (4) – ¼” x 1¼” x 21¾”
#4 (4) – ¼” x 1¼” x 21”

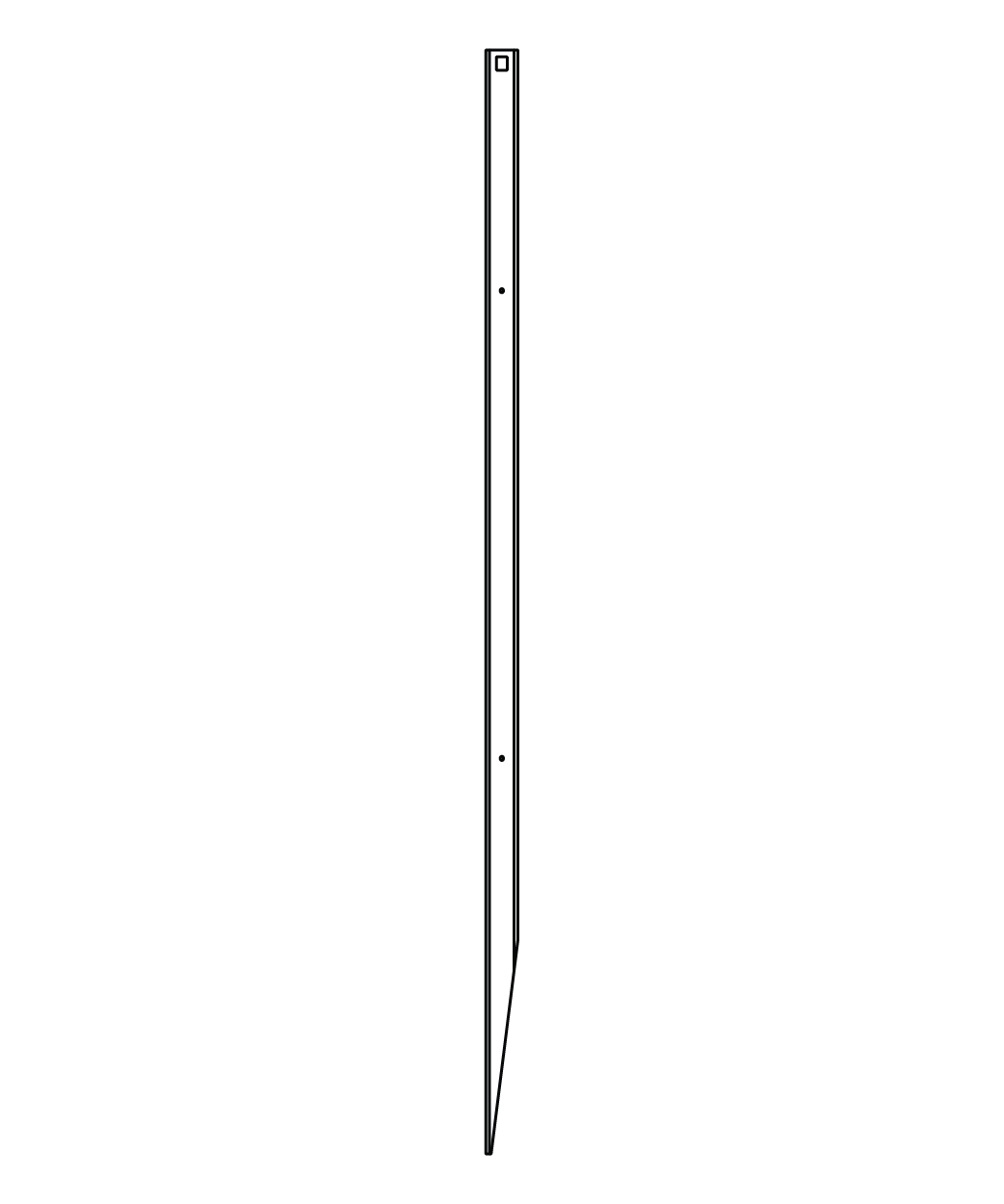

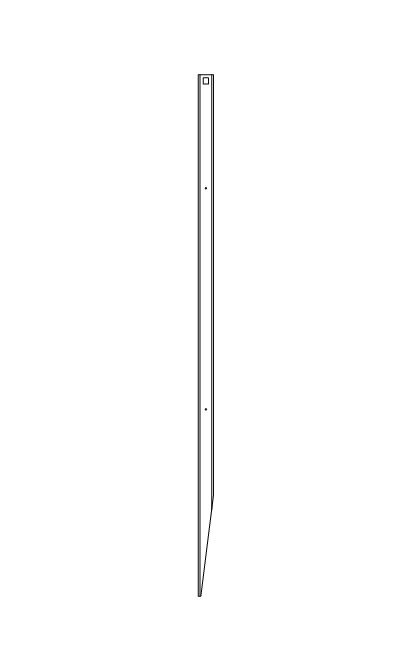

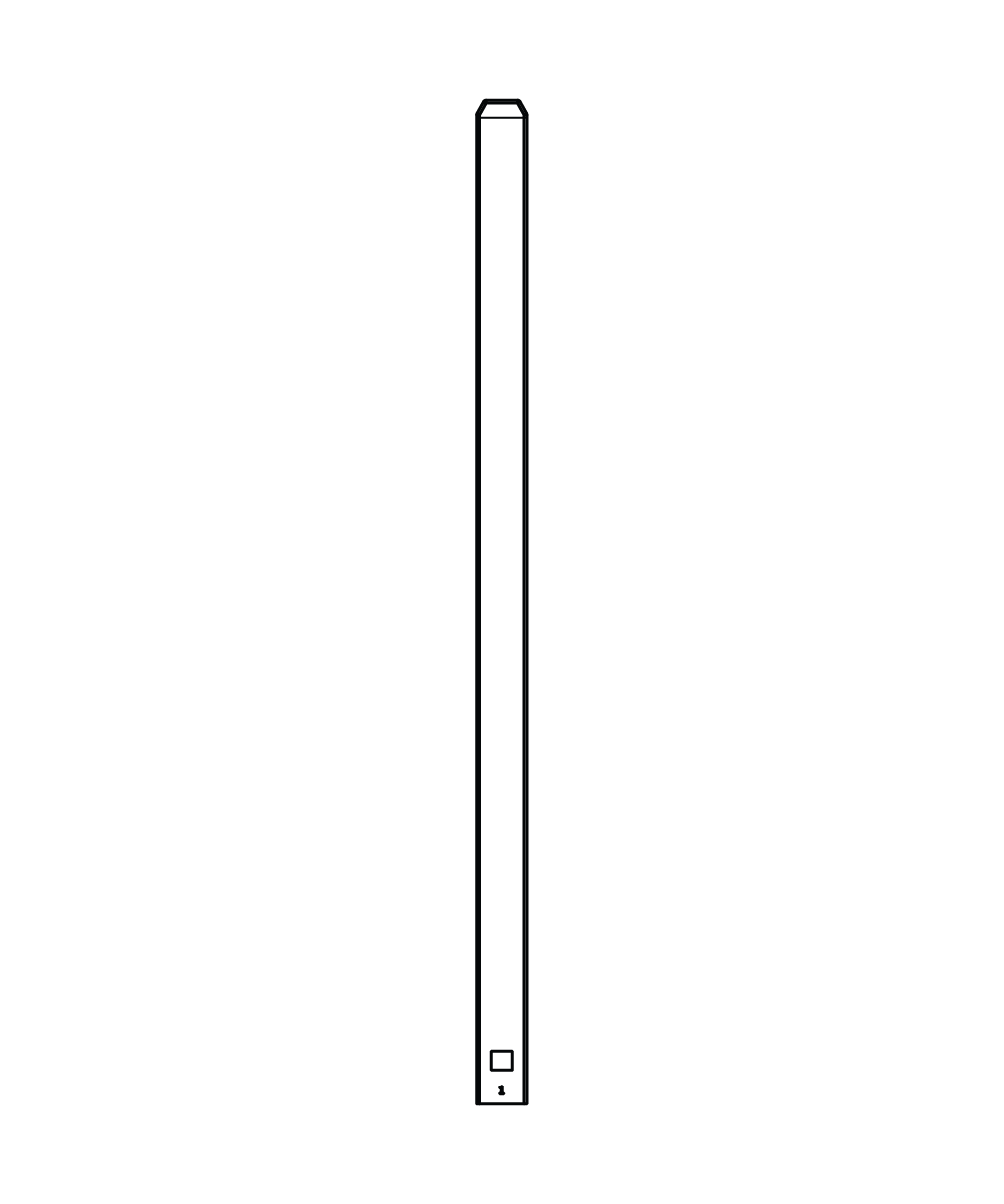

F. Post (4)

⅞” x 1½” x 41¼”

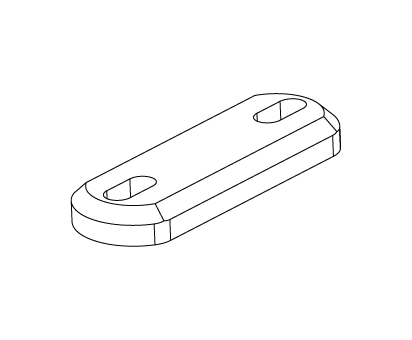

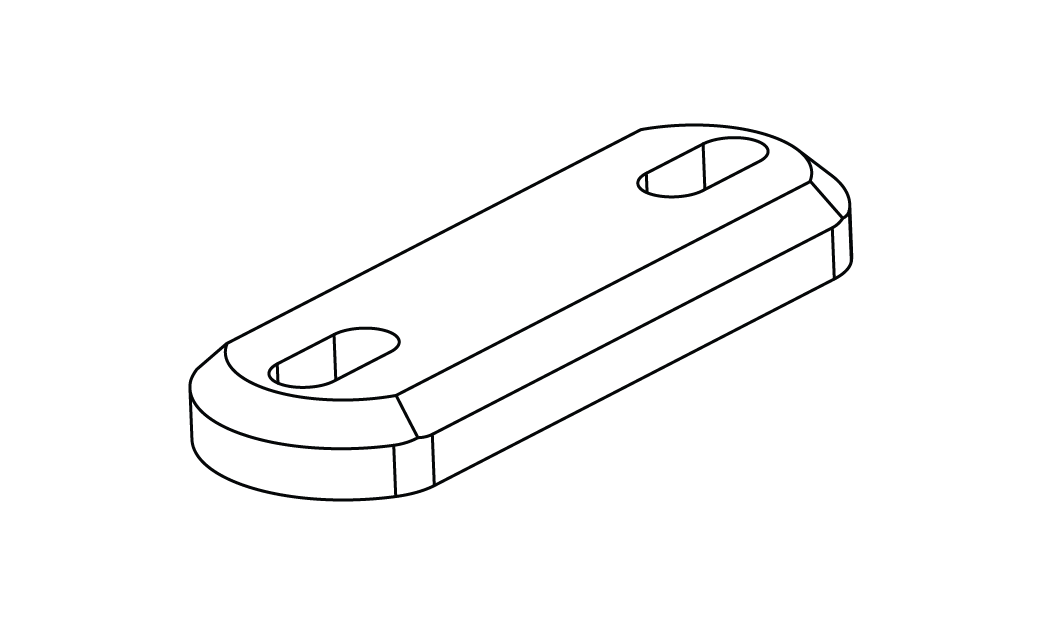

G. Joiner Clip (4)

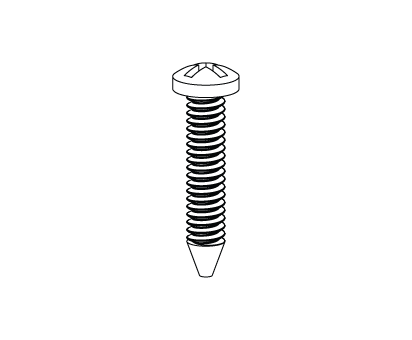

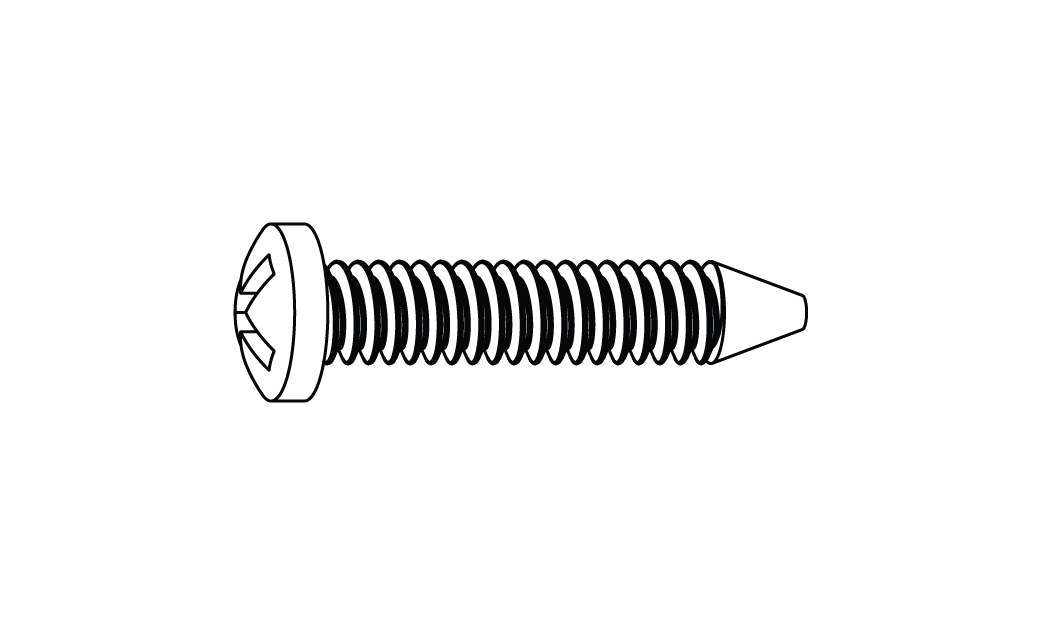

H. ¾” Self-Tapping Stainless Steel Screw (16) (Bag A)

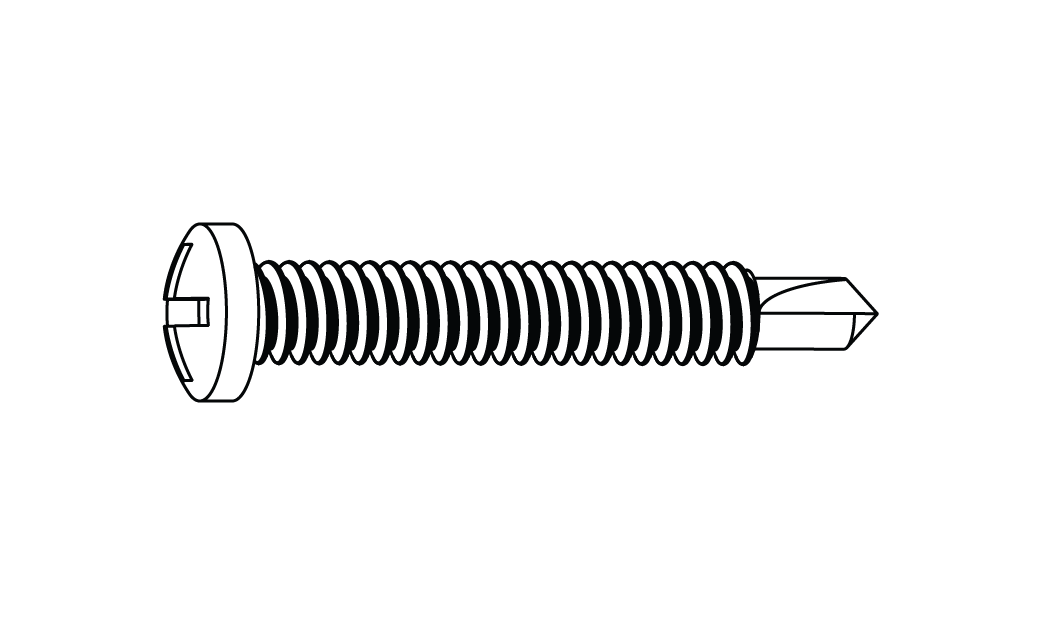

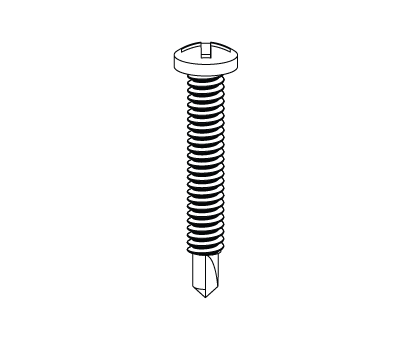

I. 1” Self-Drilling Stainless Steel Screw (8) (Bag B)

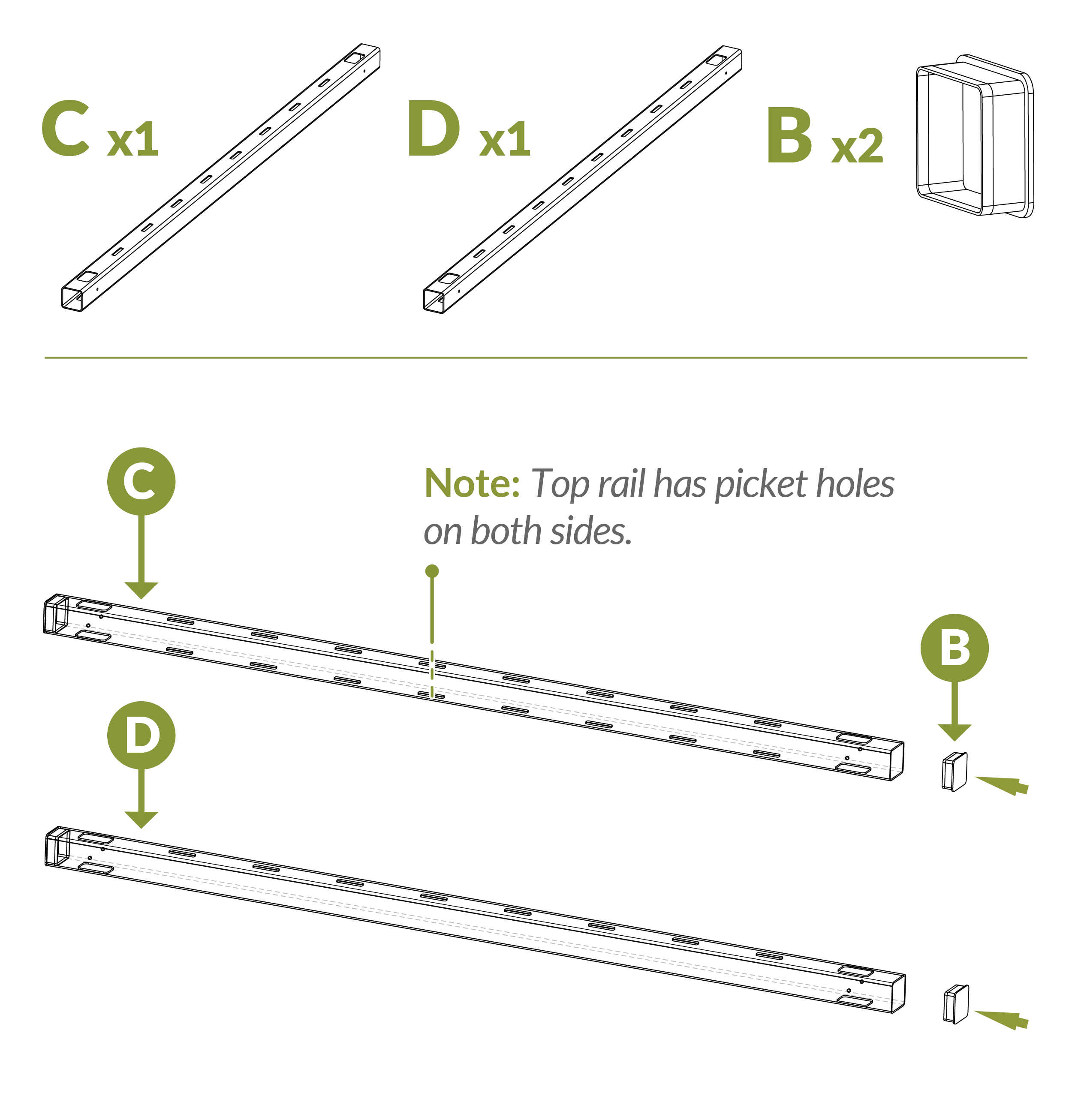

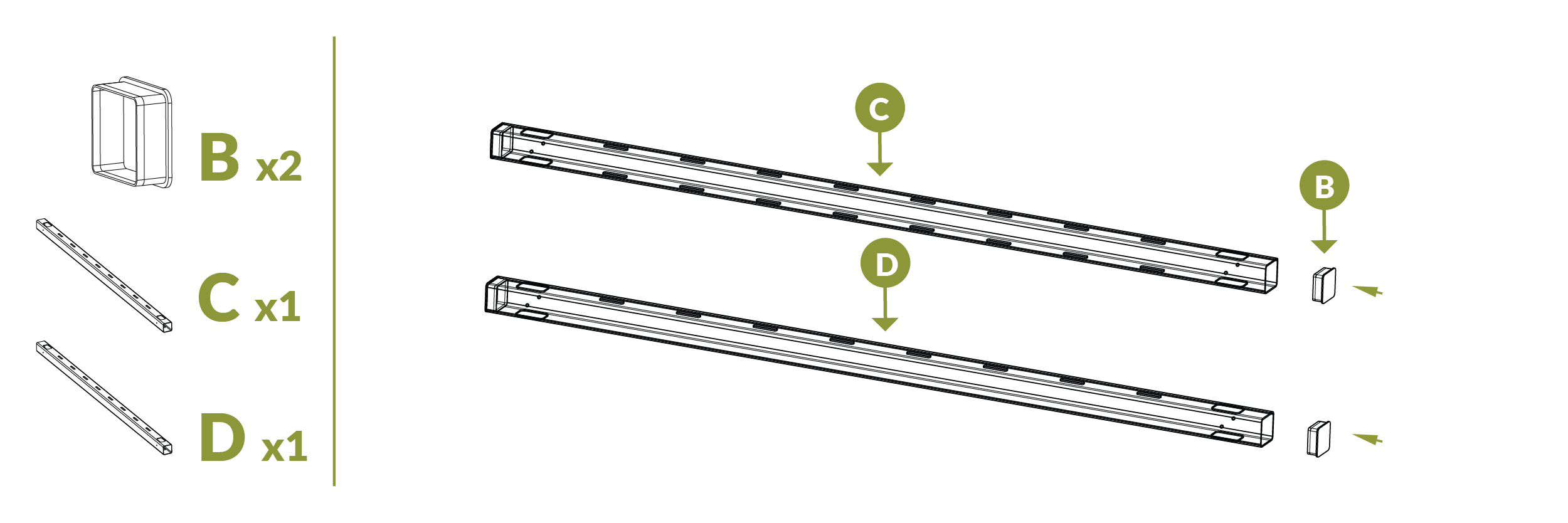

• Identify the Top Rail (C) and the Bottom Rail (D). Pressure fit (2) loose Rail End Caps (B) into each rail.

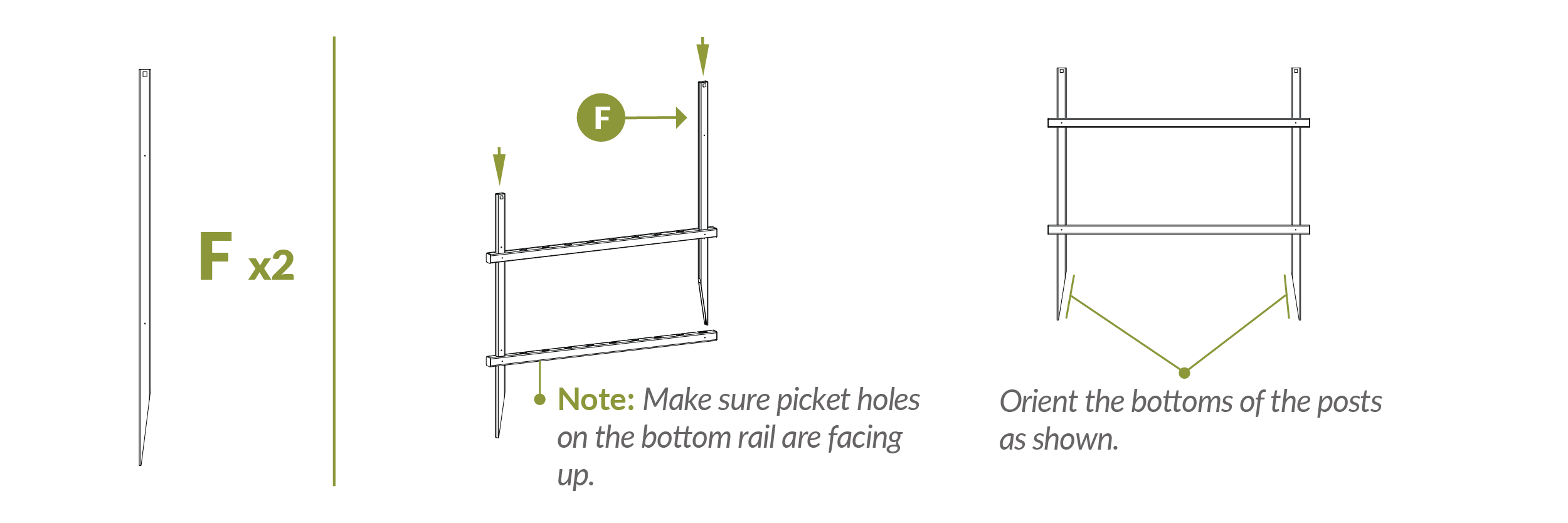

• Slide (2) Posts (F) down into the routed holes in the top and bottom rails.
• Make sure picket holes on the bottom rail are facing up.

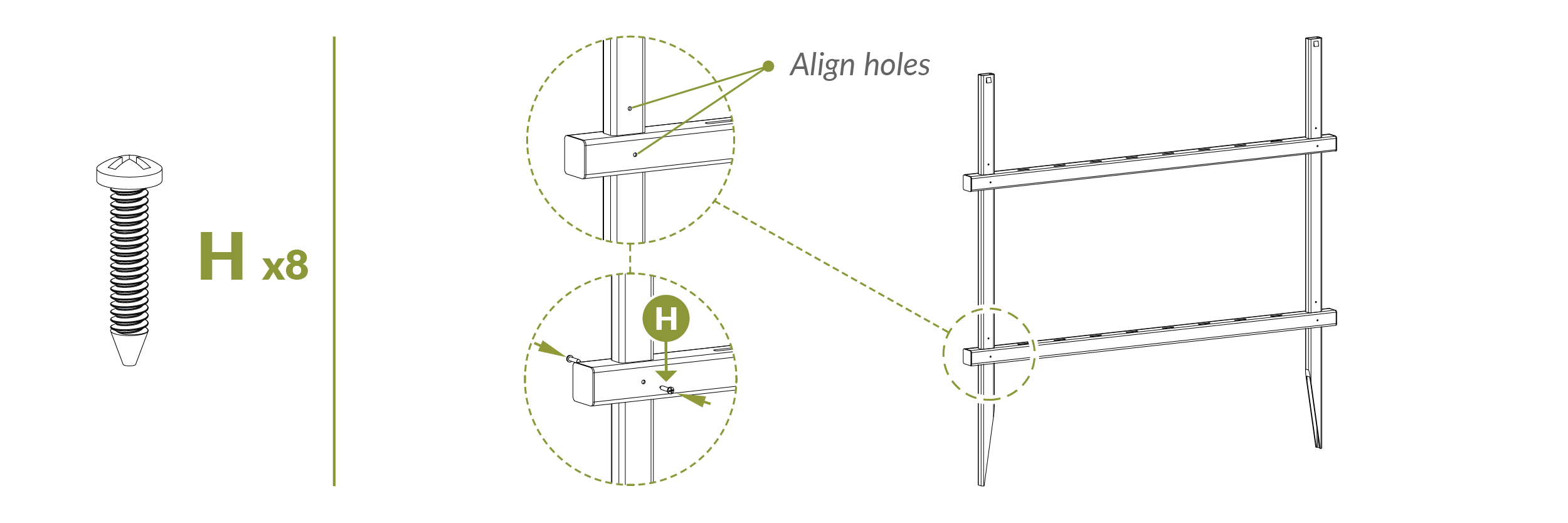

• Align the pre-drilled holes in the posts with the holes in the rails.
• Fasten using (8) ¾” Self-Tapping Stainless Steel Screws (H).

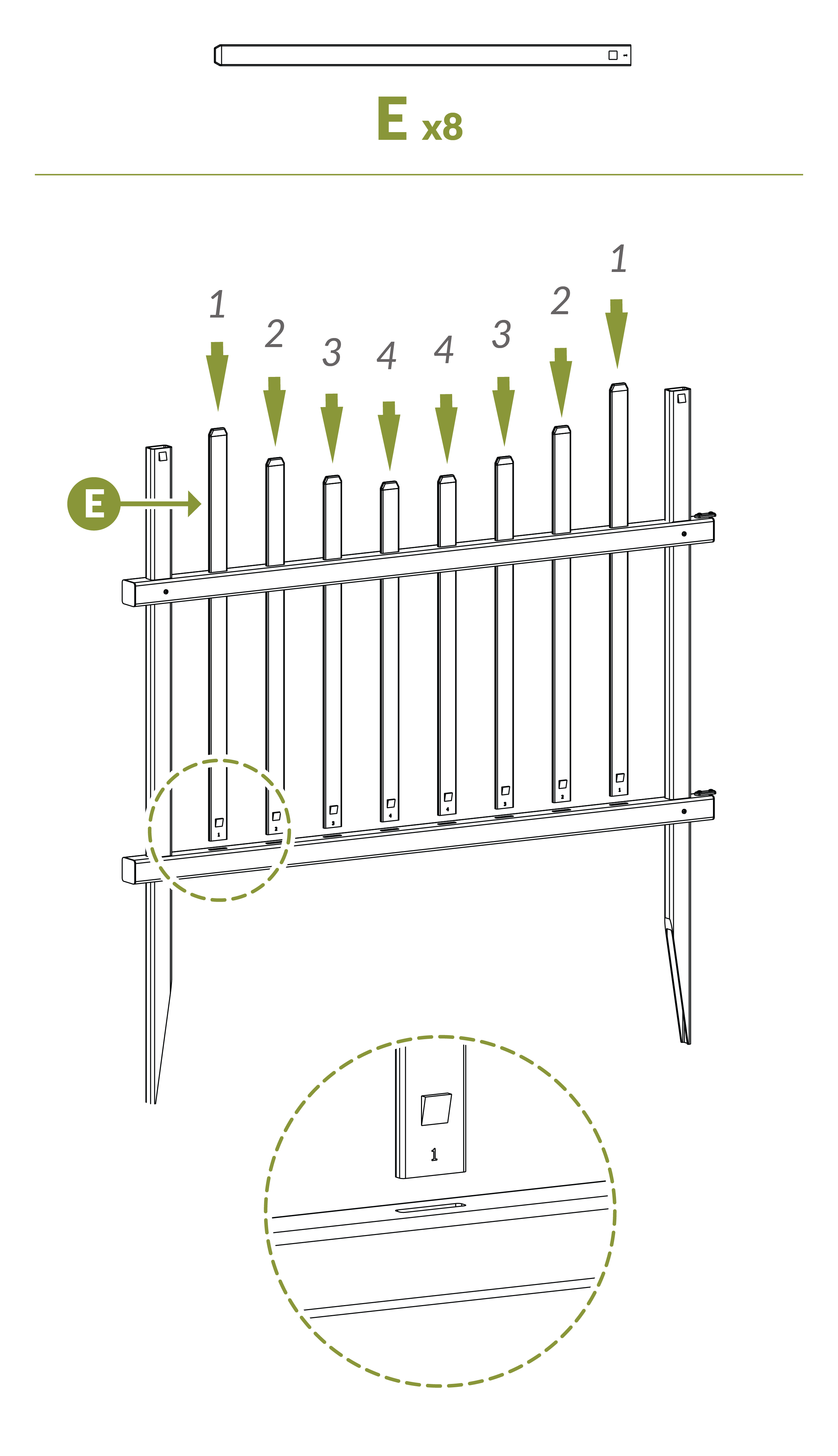

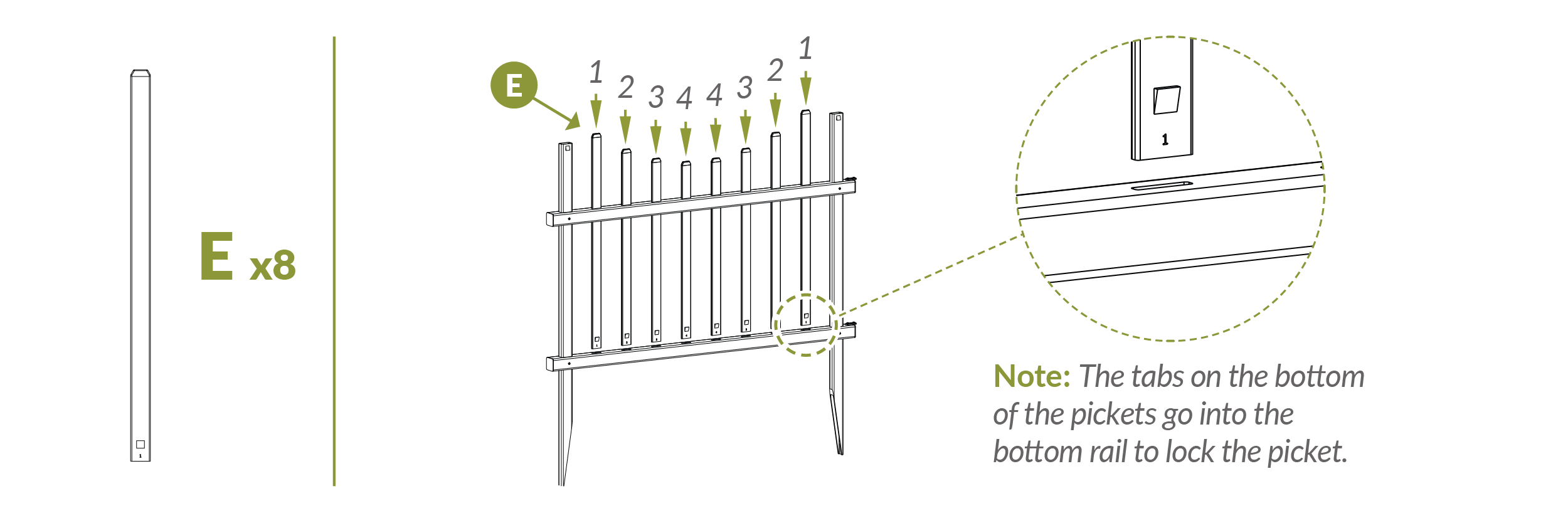

• Insert the Pickets (E), numbered 1–4, into the top and bottom rails to create the scallop pattern.
• Tabs on the bottom of each picket lock into the bottom rail.

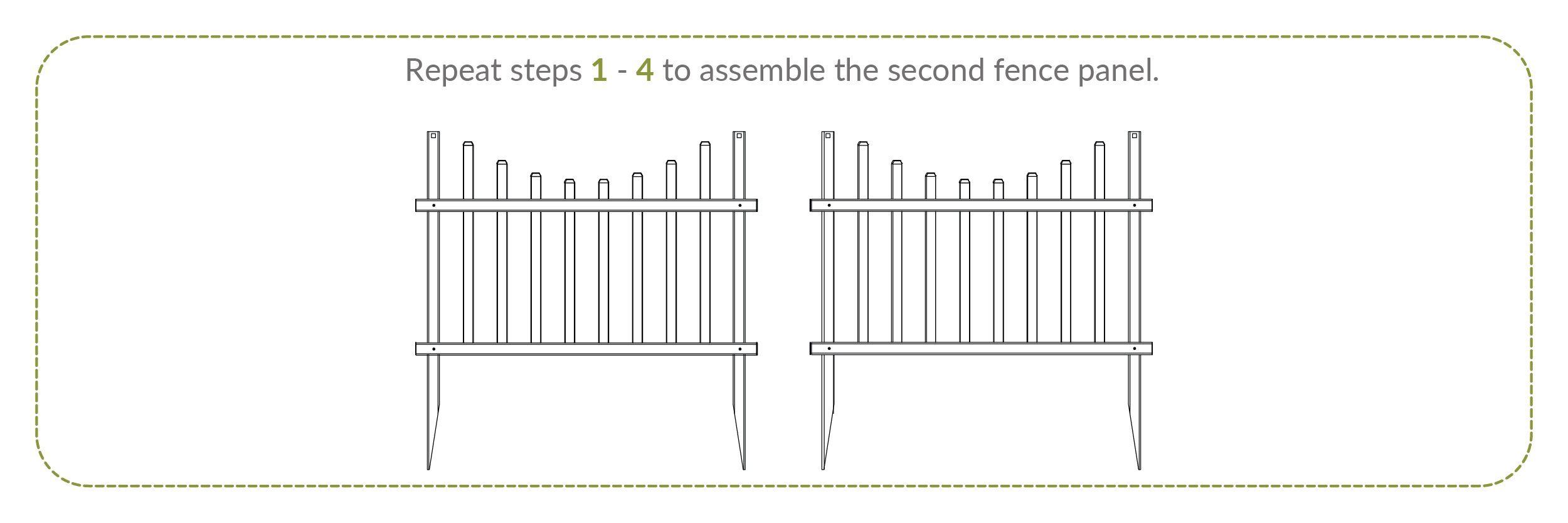

• Repeat steps to assemble the second fence panel.

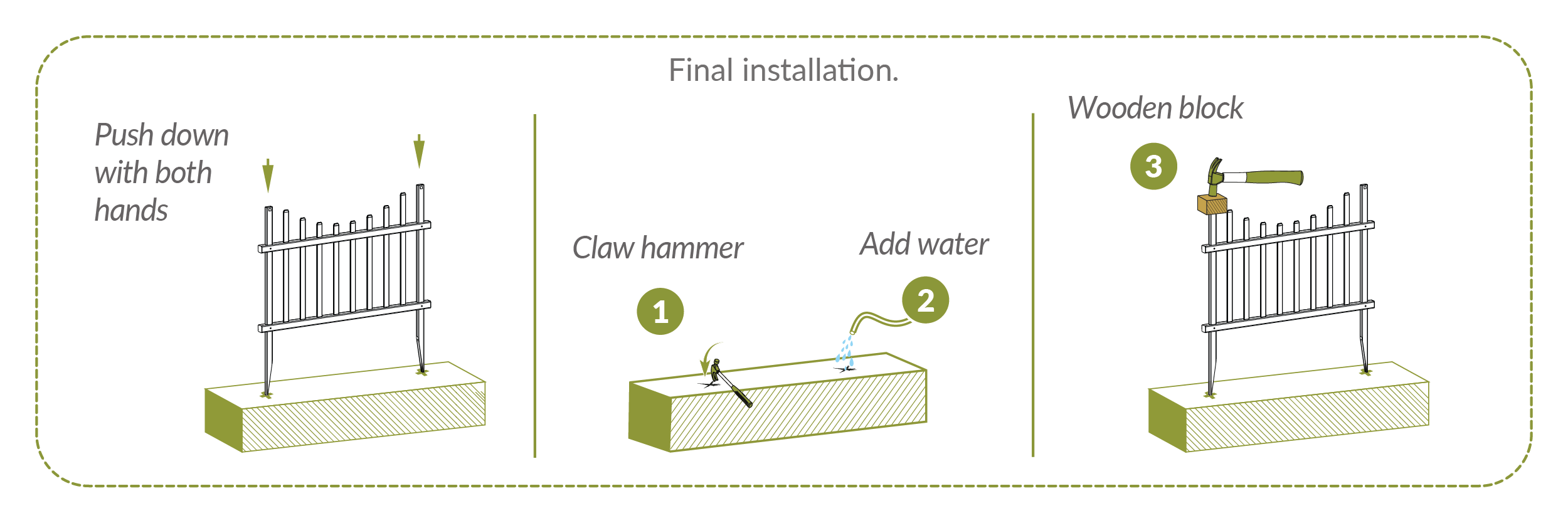

• Move fence to final location and identify placement for posts.

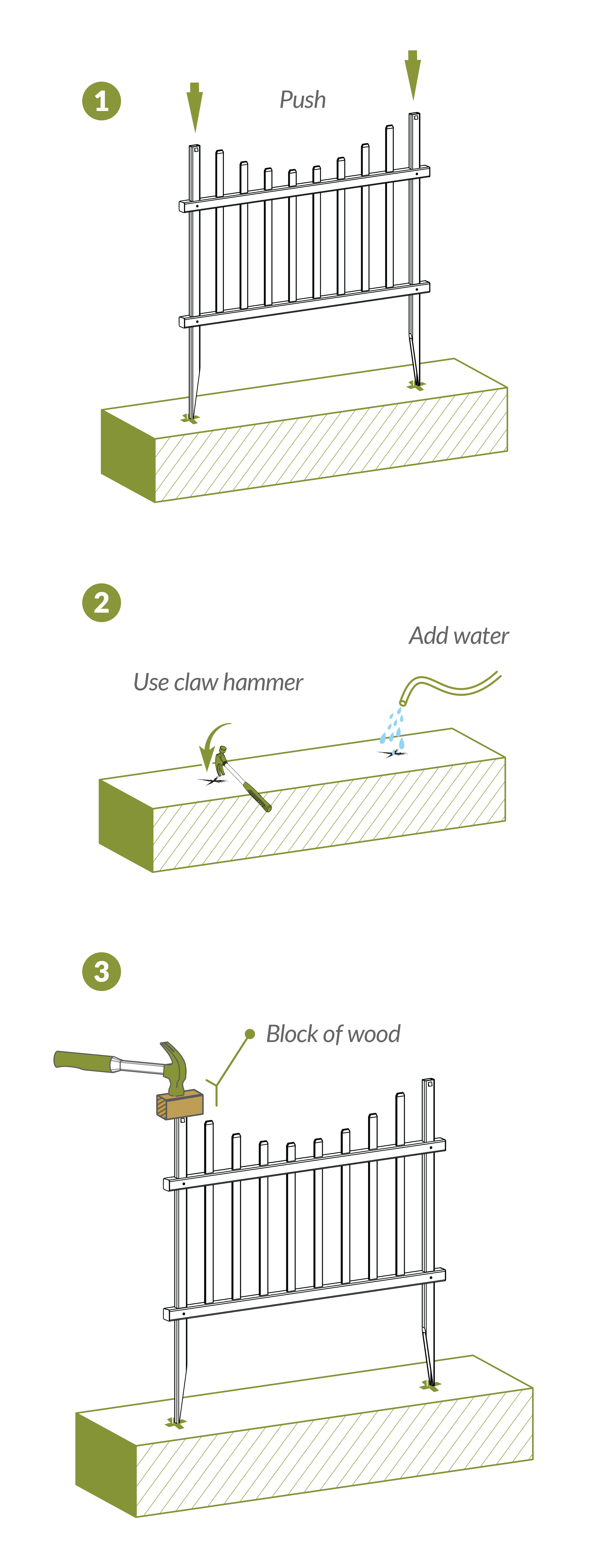

• Attempt to push the unit into the ground.
• If soil is too hard:
• Loosen top 6–7 inches with a claw hammer.
• Add water.
• Use a block of wood and gently hammer posts into the ground.

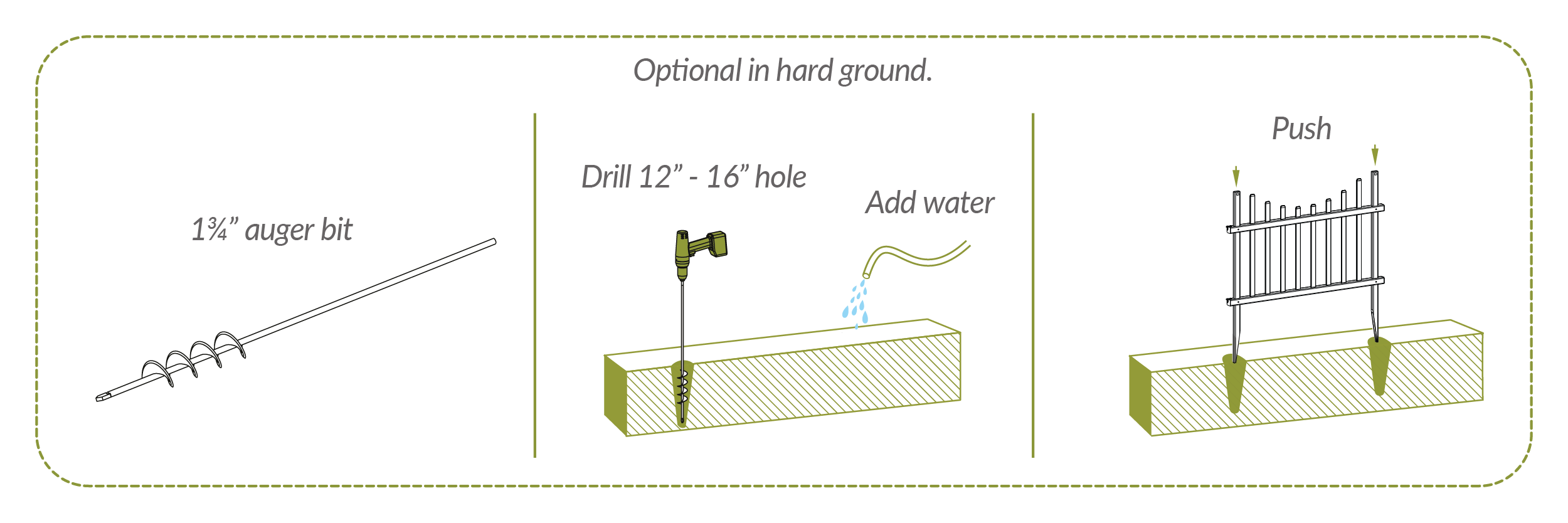

• Optional for hard ground:
• Use a 1¾” auger bit to drill a 12–16” deep hole, fill with water, then push posts into place.

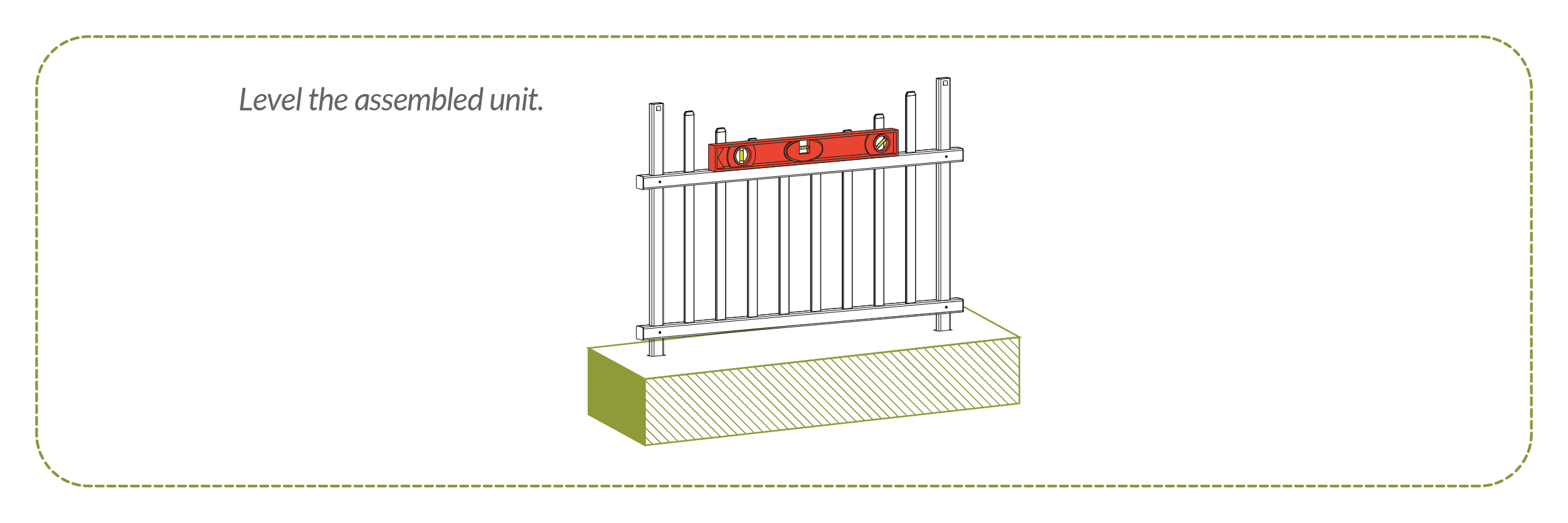

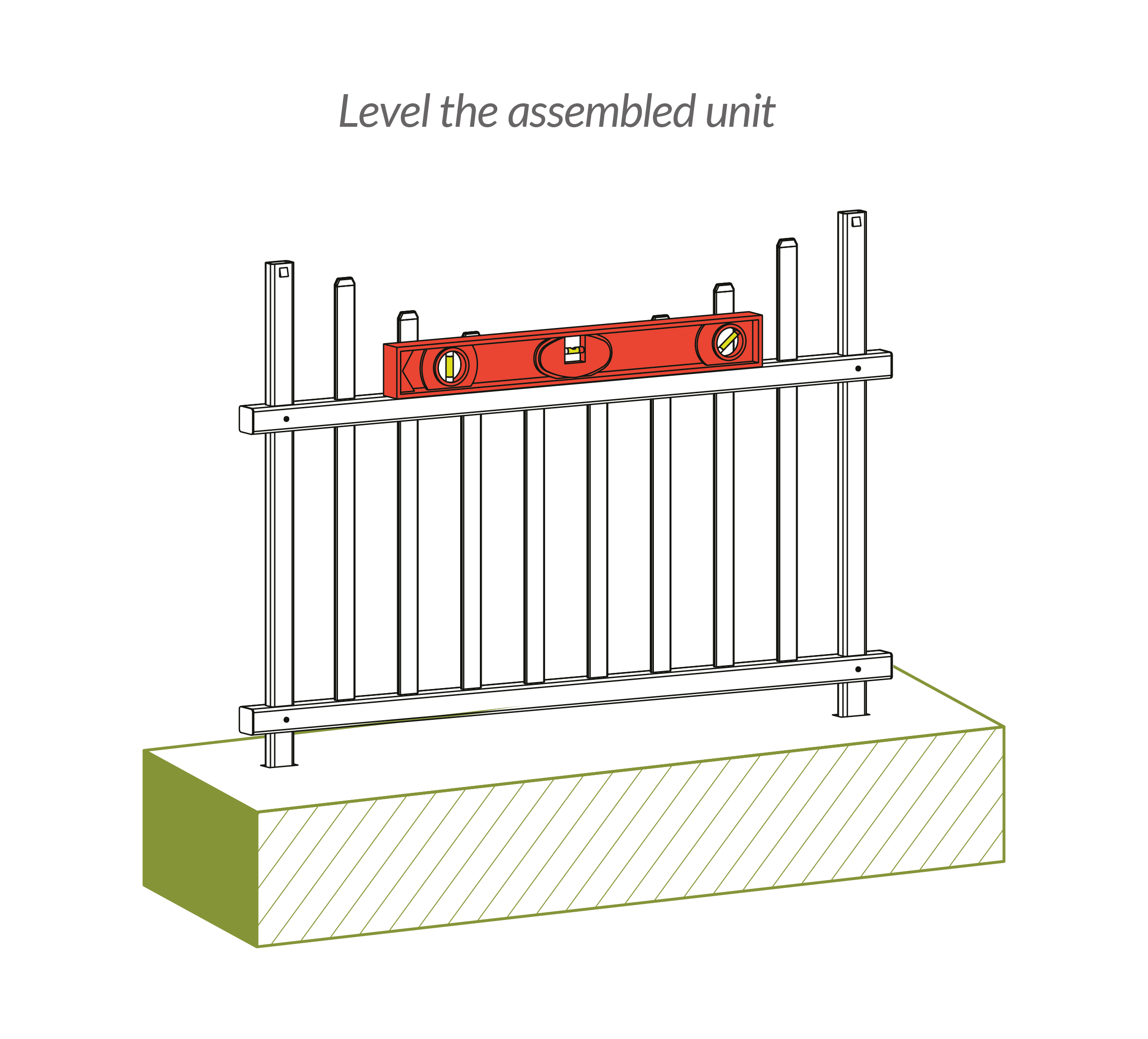

• Level both panels, backfill, and compact soil around each post.

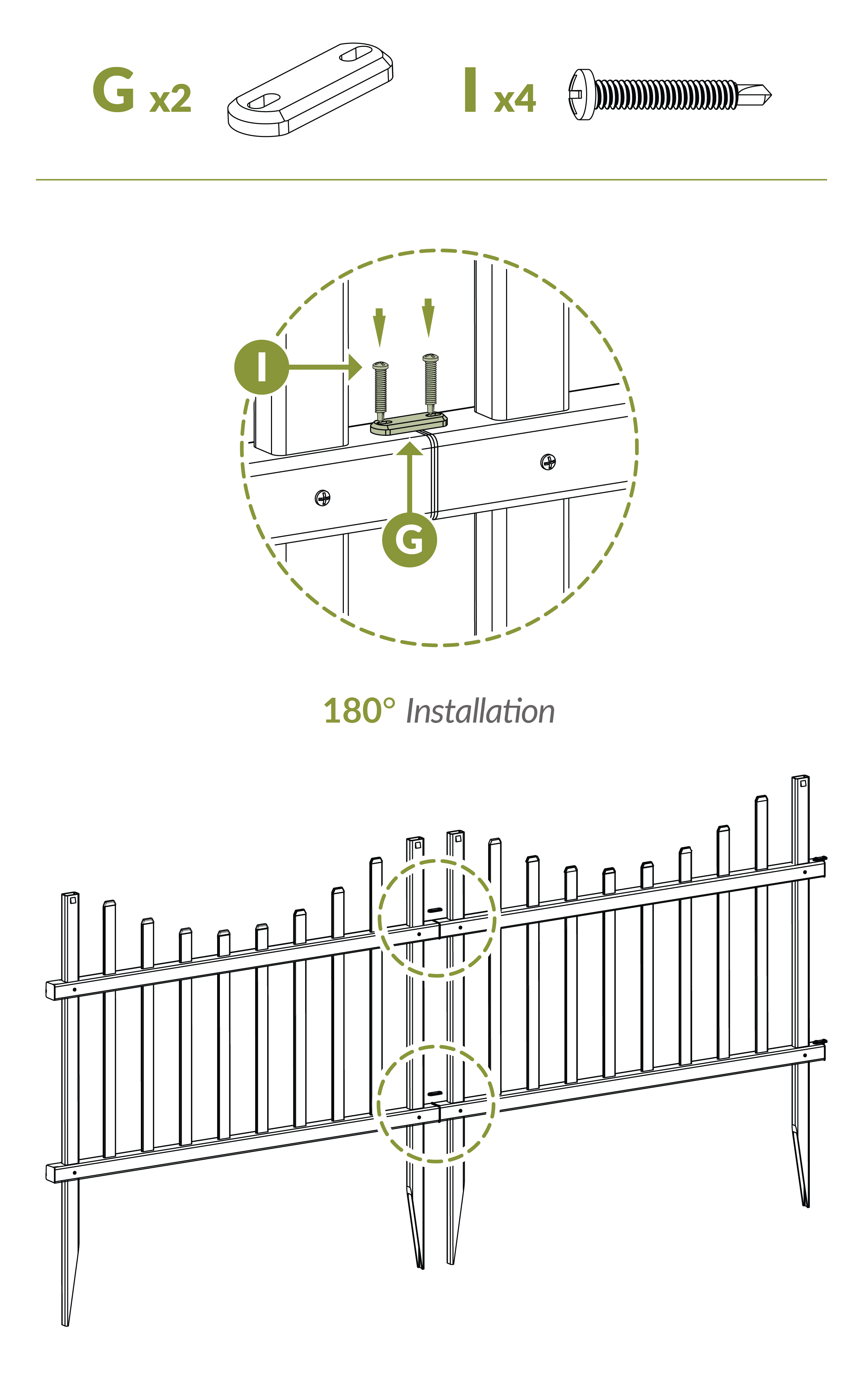

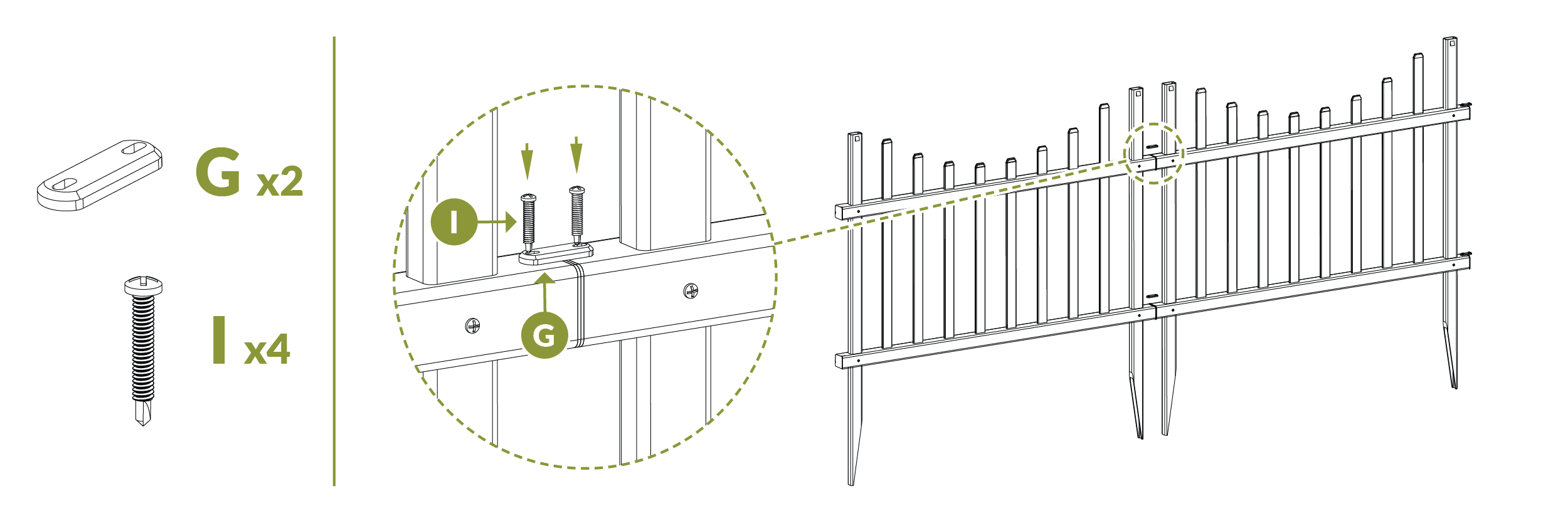

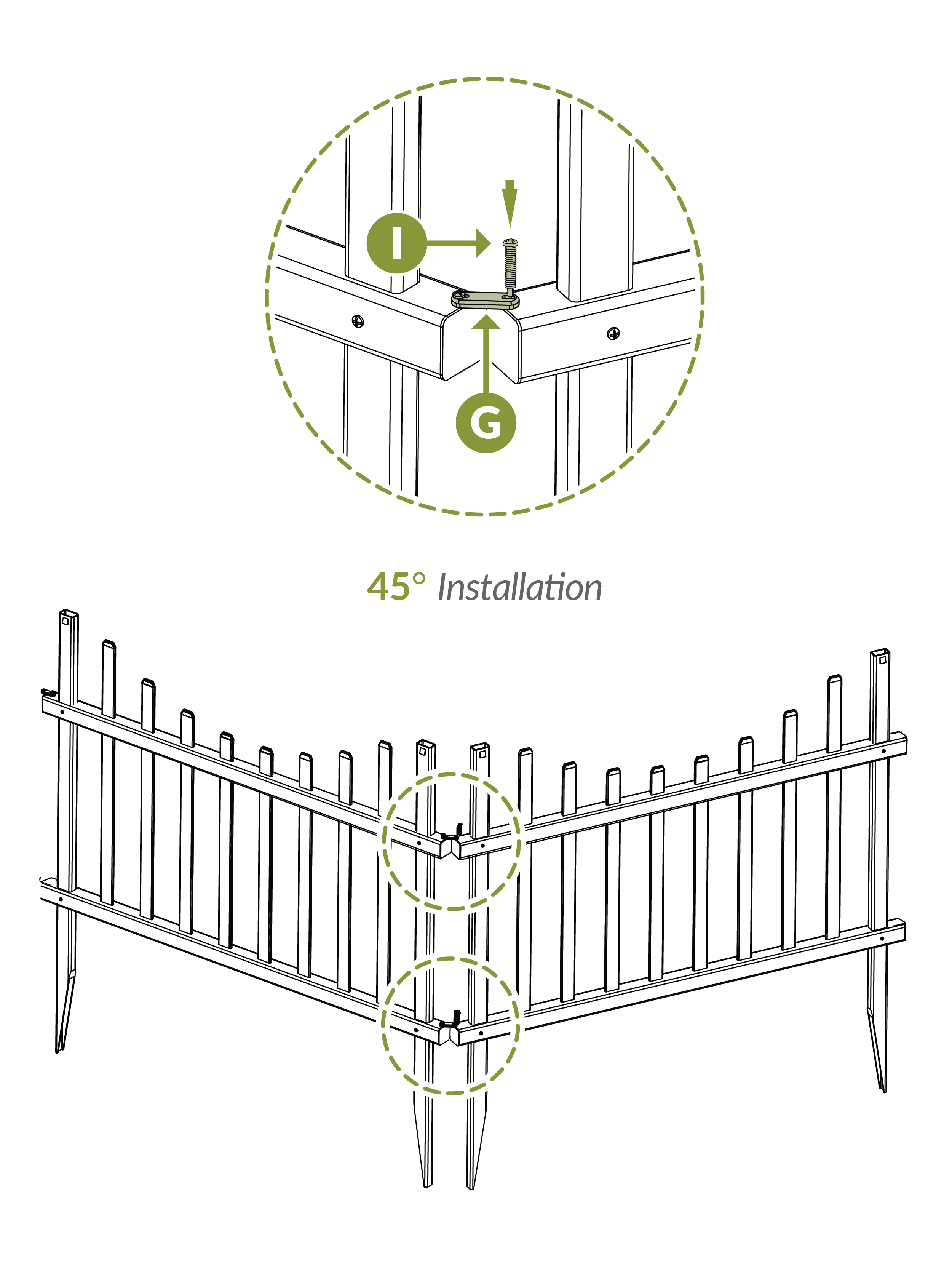

• Use (2) Joiner Clips (G) and (4) 1” Self-Drilling Stainless Steel Screws (I) to attach fence panels together.
• Extra joiner clips and screws are included if you intend to attach to additional panels

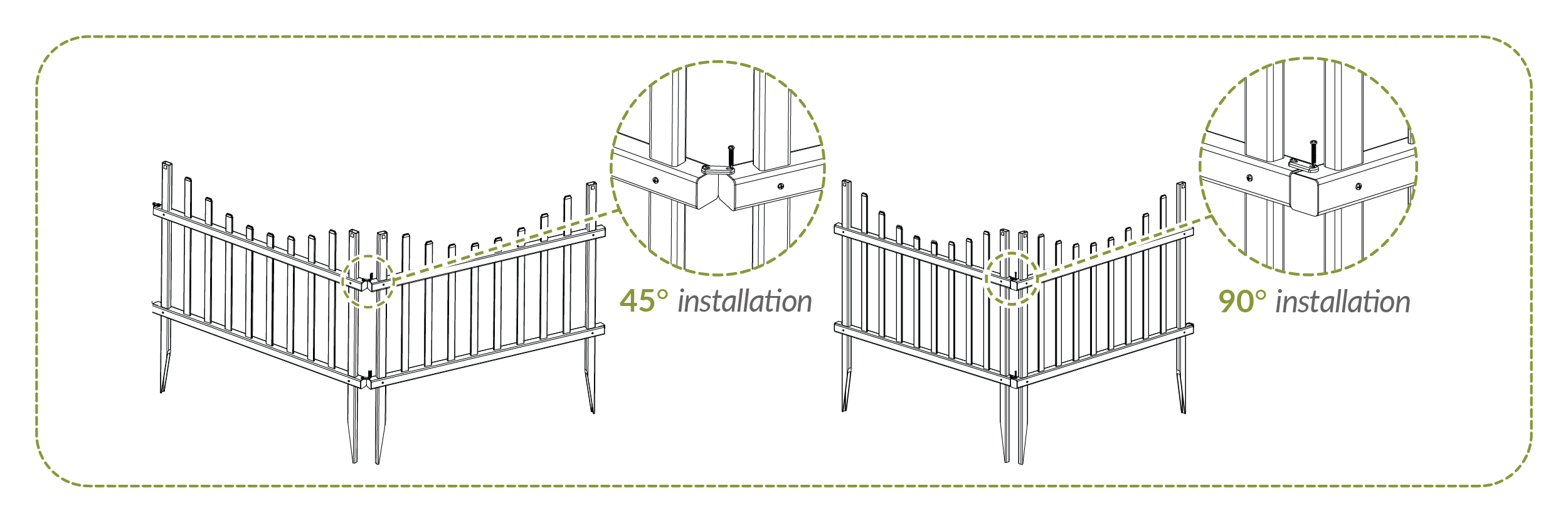

• Instructions apply to both 45° and 90° installations.

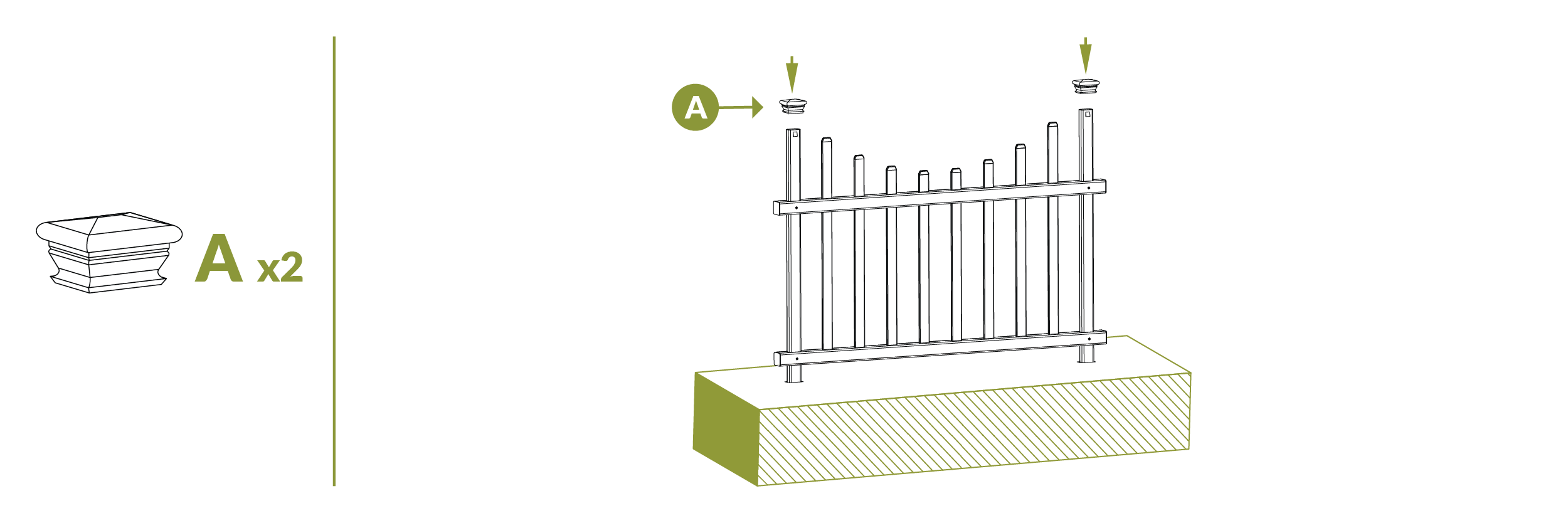

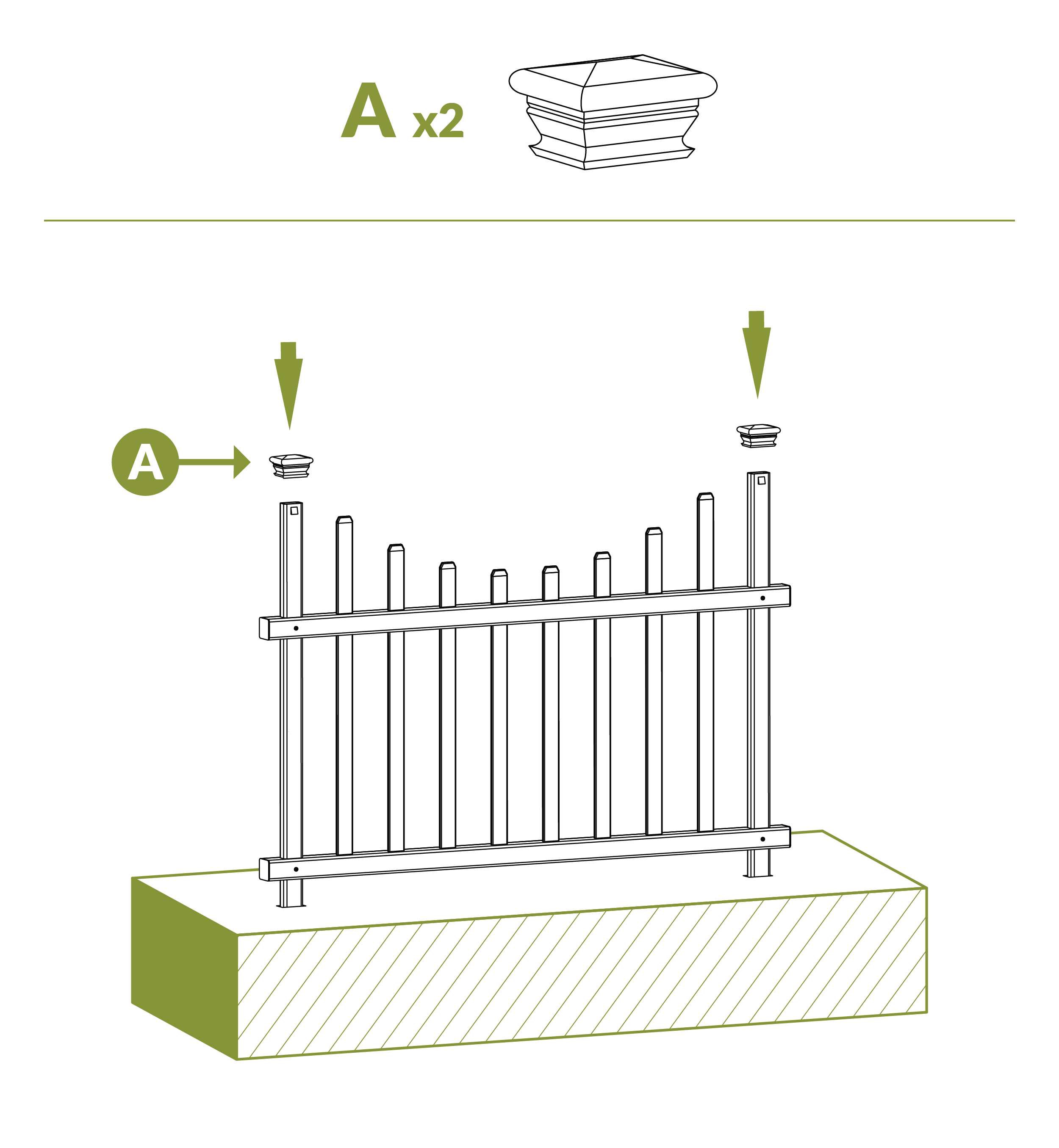

• Push Post Caps (A) over the tops of the posts until they lock into place.
