General Information

Important Safety Notes:

• Check the inside of the larger pieces in your box for other materials packed inside.
• Assemble on a soft, non-abrasive surface to avoid scratching.
• We recommend an area approximately 5’ x 8’ for unobstructed assembling.
• Do not overtighten screws; some force may be required to drive screws.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is happy to help.

• Website: https://parts.nychbrands.com
• Email: support@zippity-outdoor.com
• Phone: 704-892-5222 or 877-234-6196

Customer service agents are available 9am–5pm EST, Monday–Friday.

For Quick Assistance:

• Have reference item number ZP19079
• Provide the specific part name or letter
• Include the batch lot number

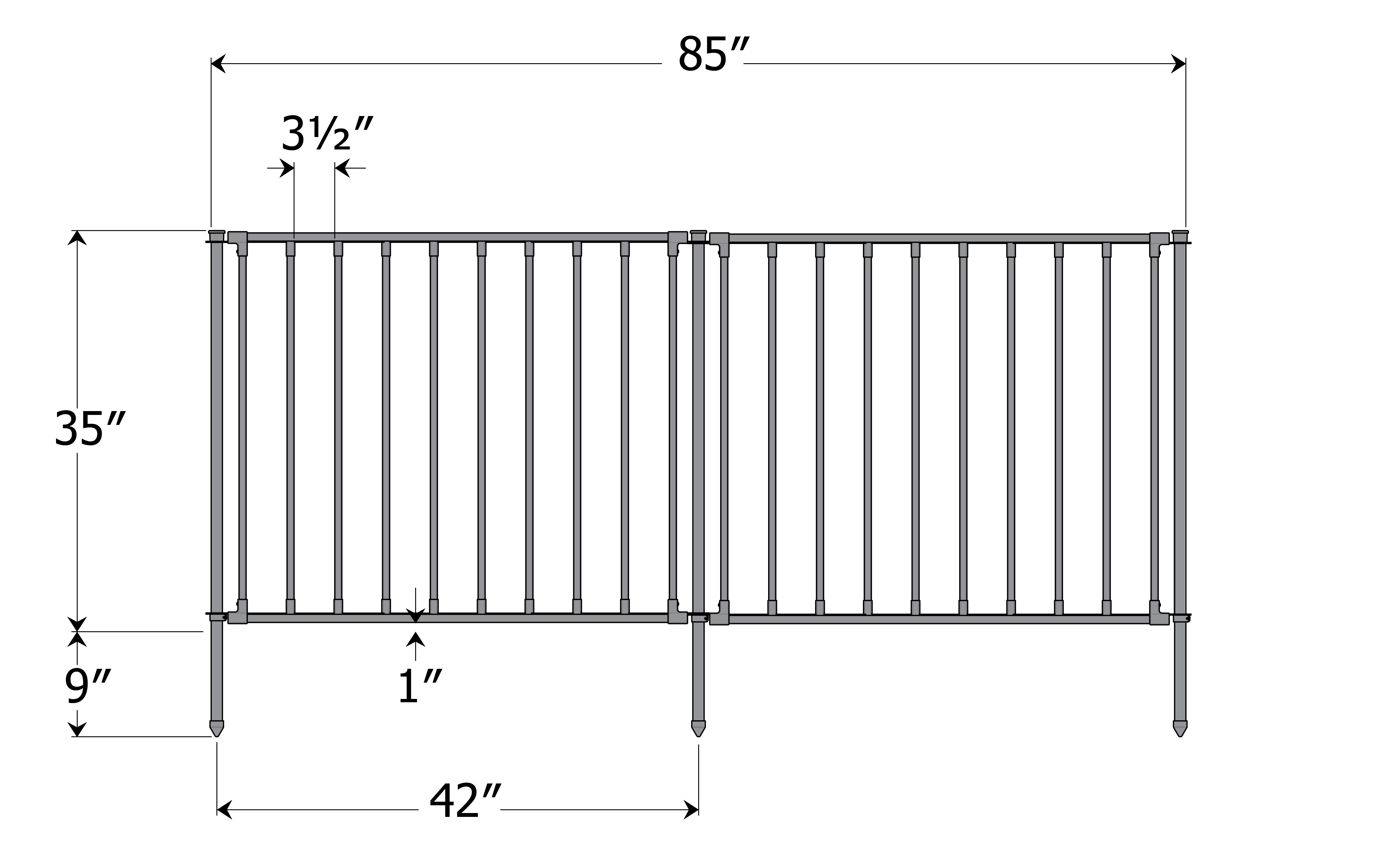

Detailed Dimensions & Specifications

Product Specifications:

• Panel Width: 42"
• Panel Height: 35"
• Stake Height: 44"
• Rail spacing: 3 1/2"
• Stake anchor depth: 9"
• Clearance under panel: 1"

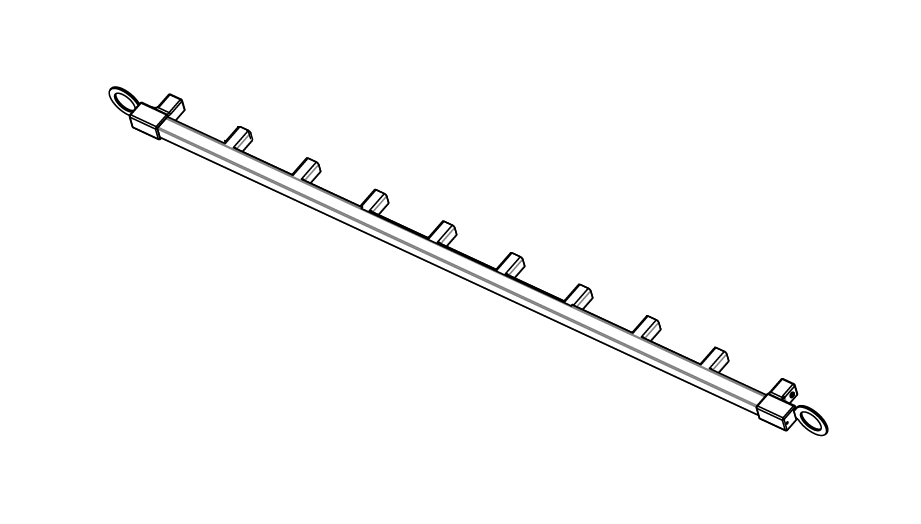

A. Rail (4)

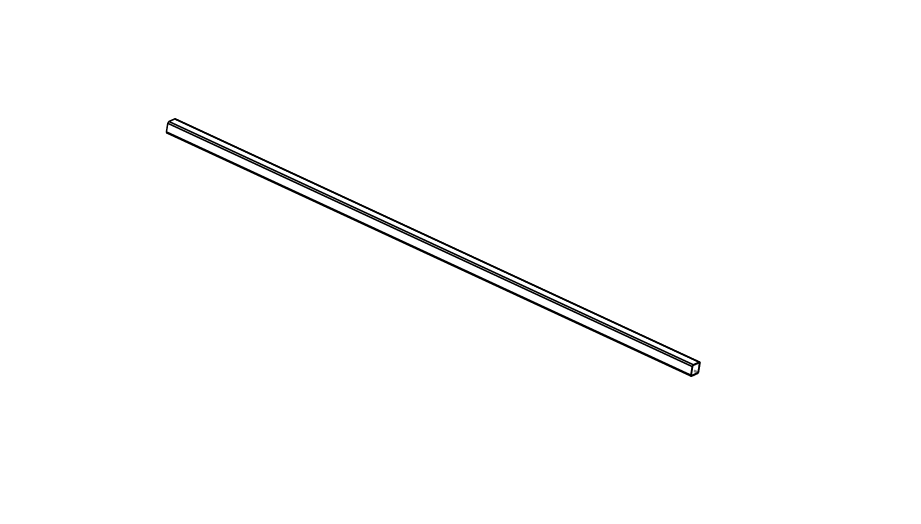

B. Picket (20)

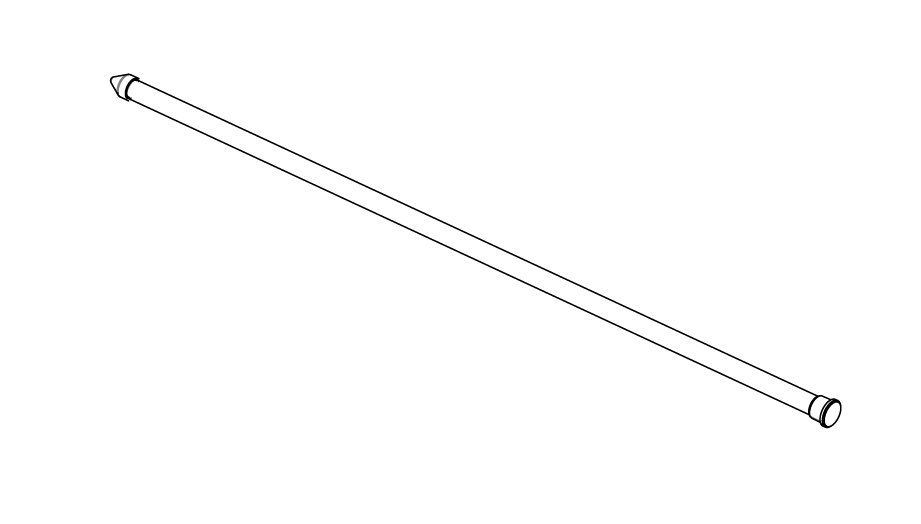

C. Stake (3)

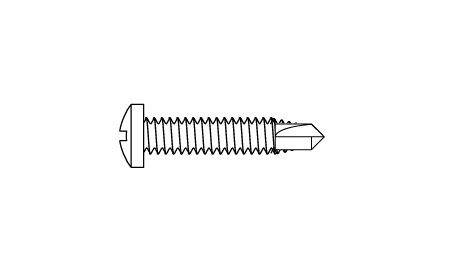

D. 5/8" Black Self-Drilling Screw (8)

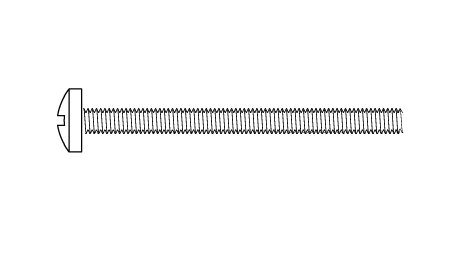

E. 1 1/4" Black Self-Drilling Screw (3)

F. Stake Ring Stop (3)

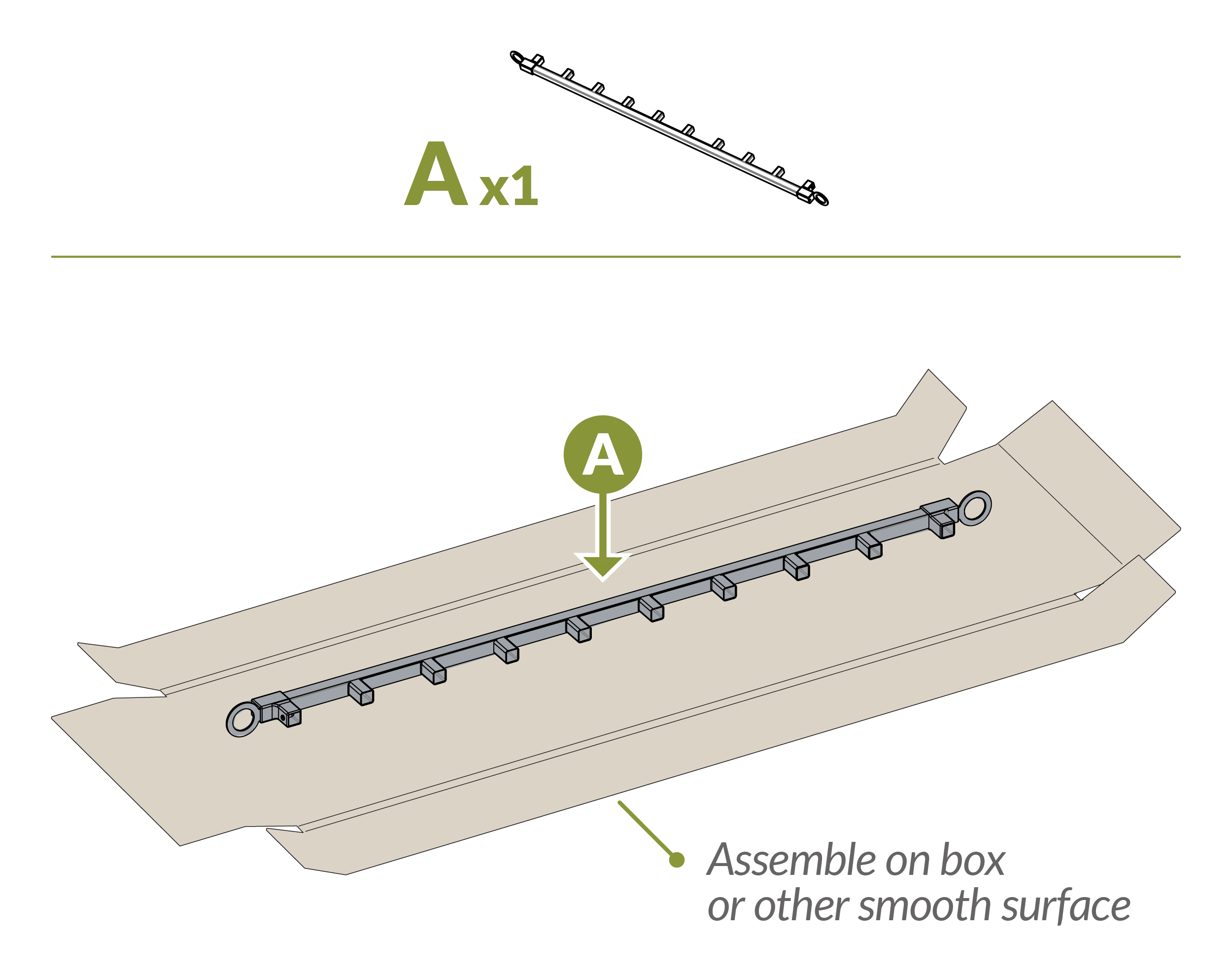

• Assemble on soft surface to prevent scratching.

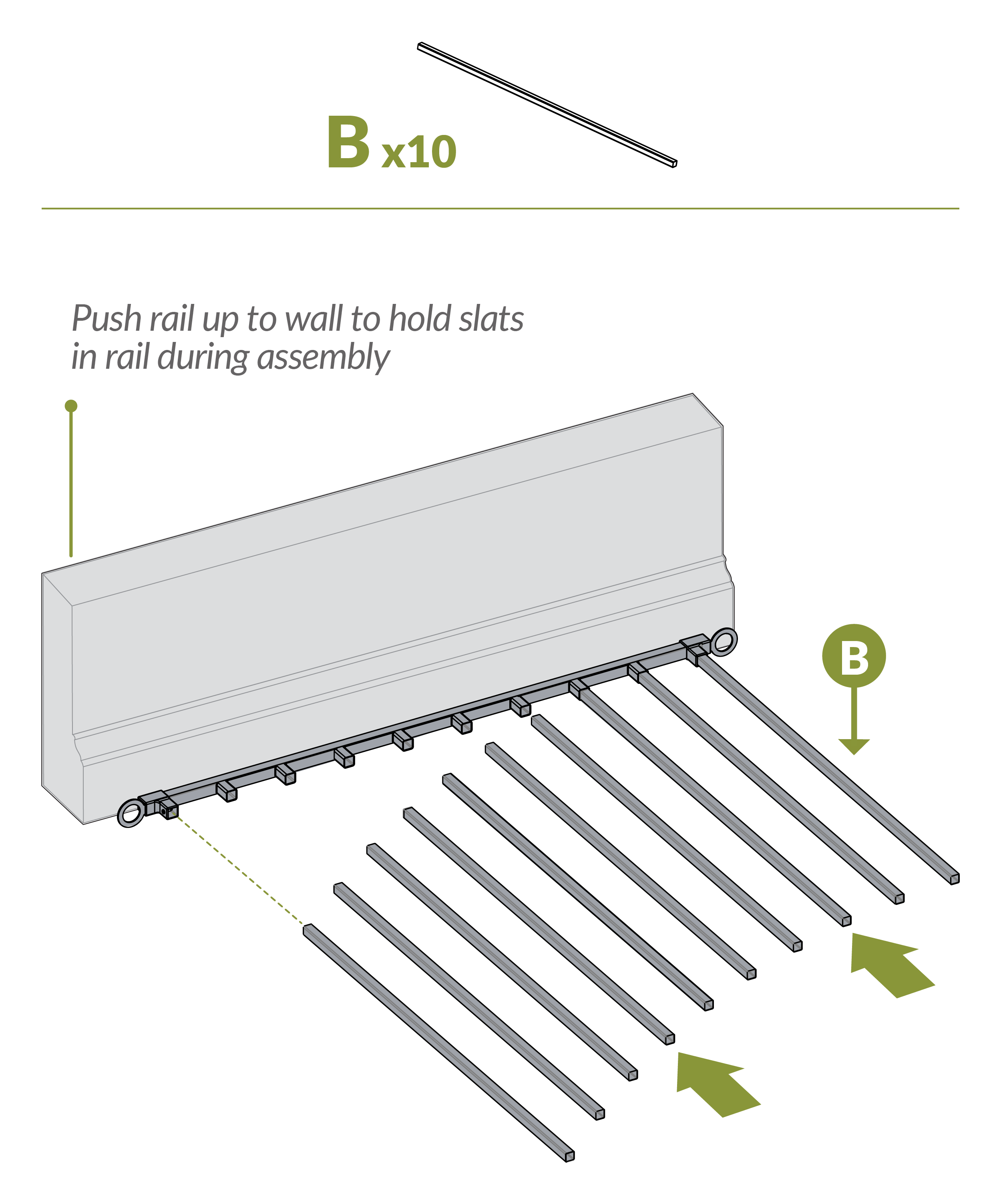

• Push the bottom rail (A) up to a wall to hold slats in position during assembly. Place pickets (B) inside the bottom rail (A) one by one.

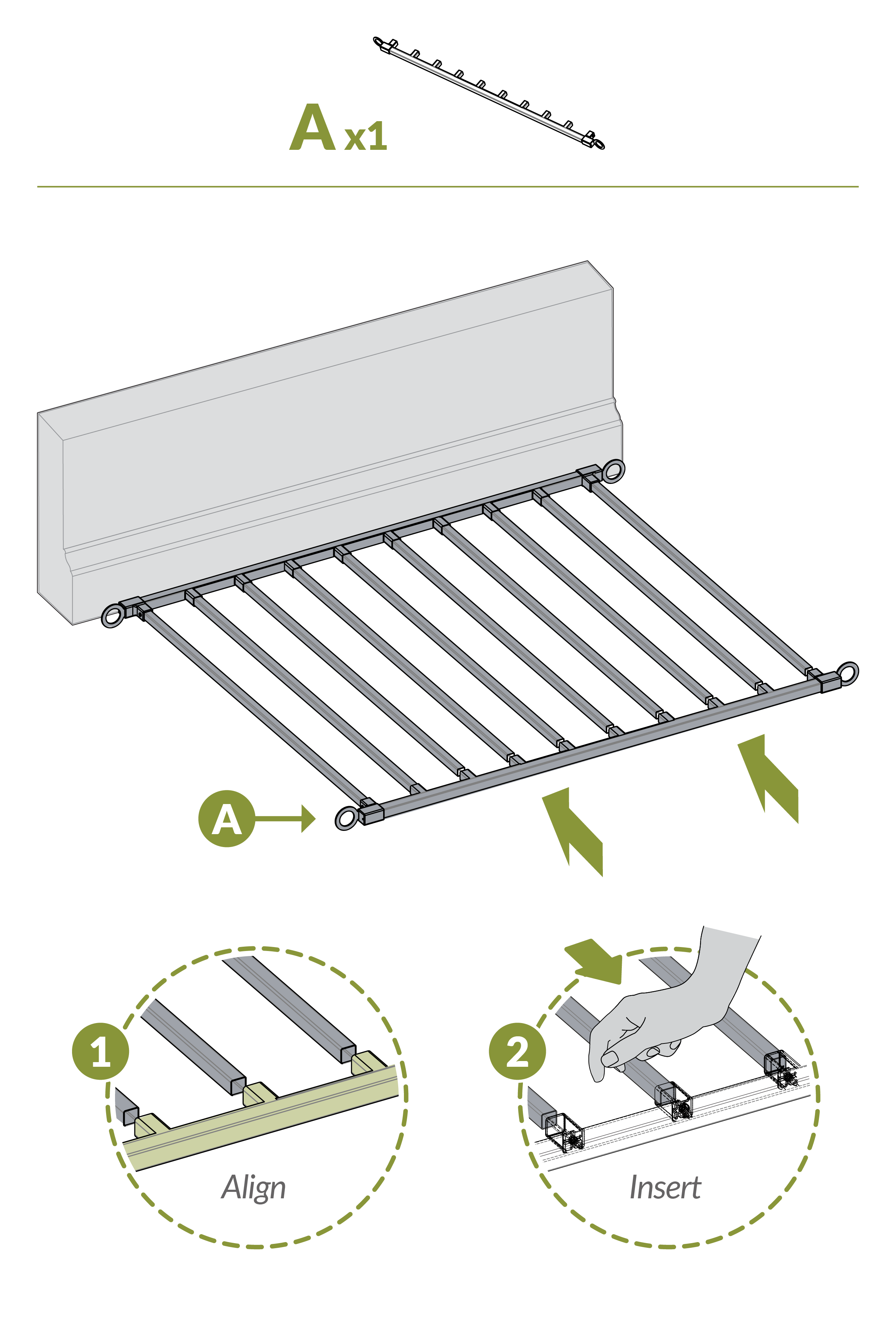

• Align the top rail (A) just beneath the pickets (B). Insert pickets into top rail.

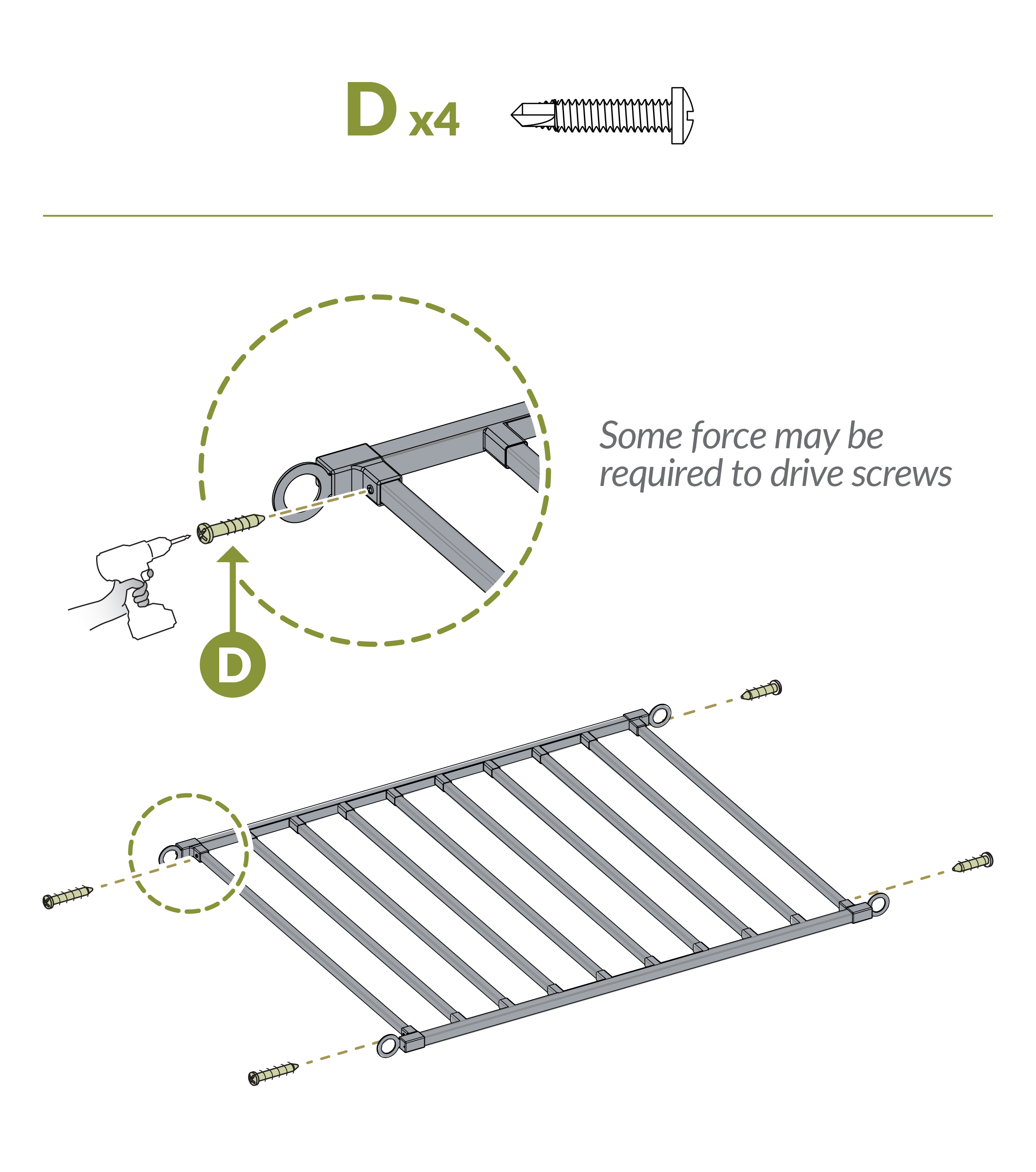

• Install 5/8" screws (D) to secure the rails once aligned.

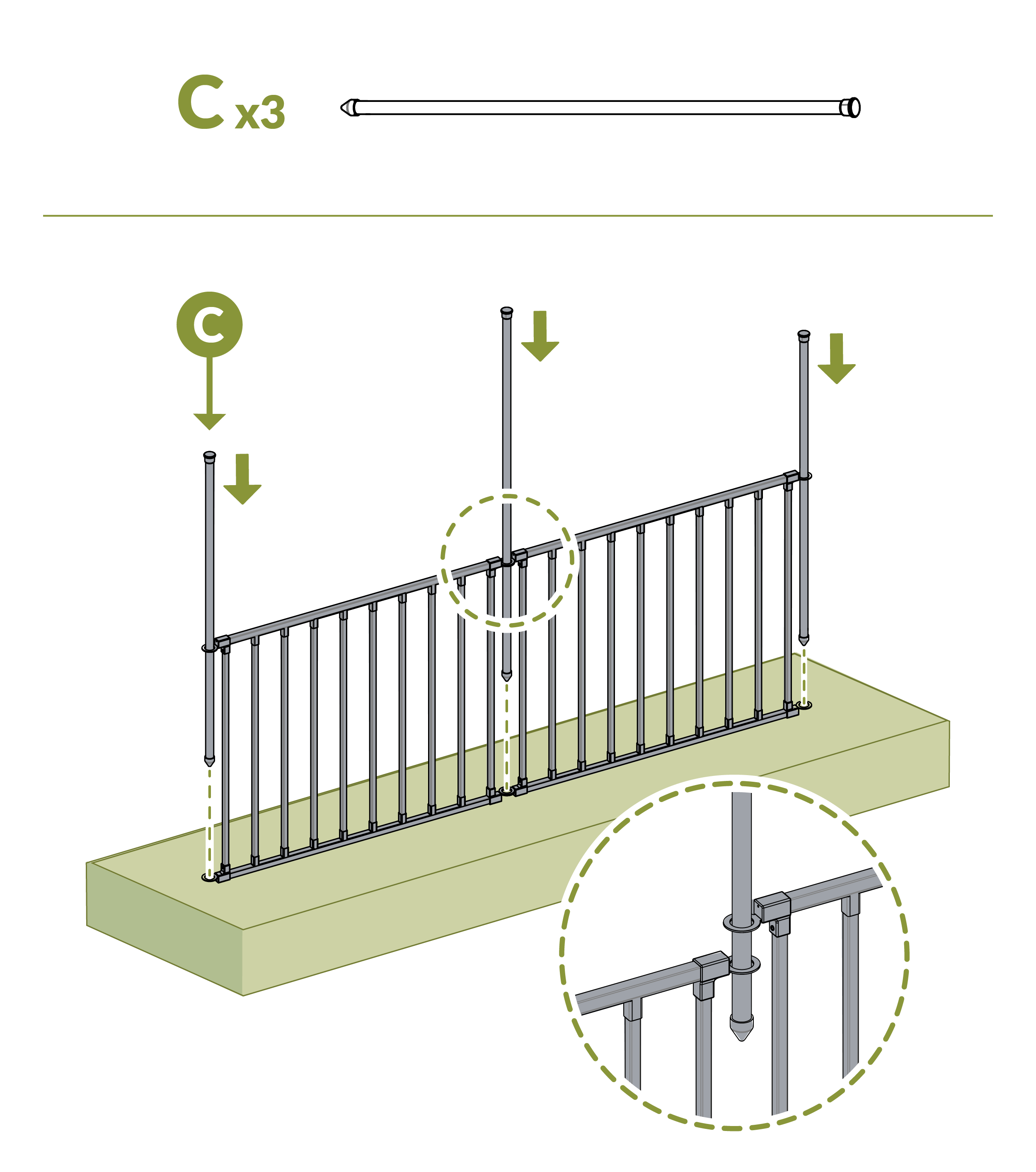

• Install stakes (C) between rail ends to secure panels together.

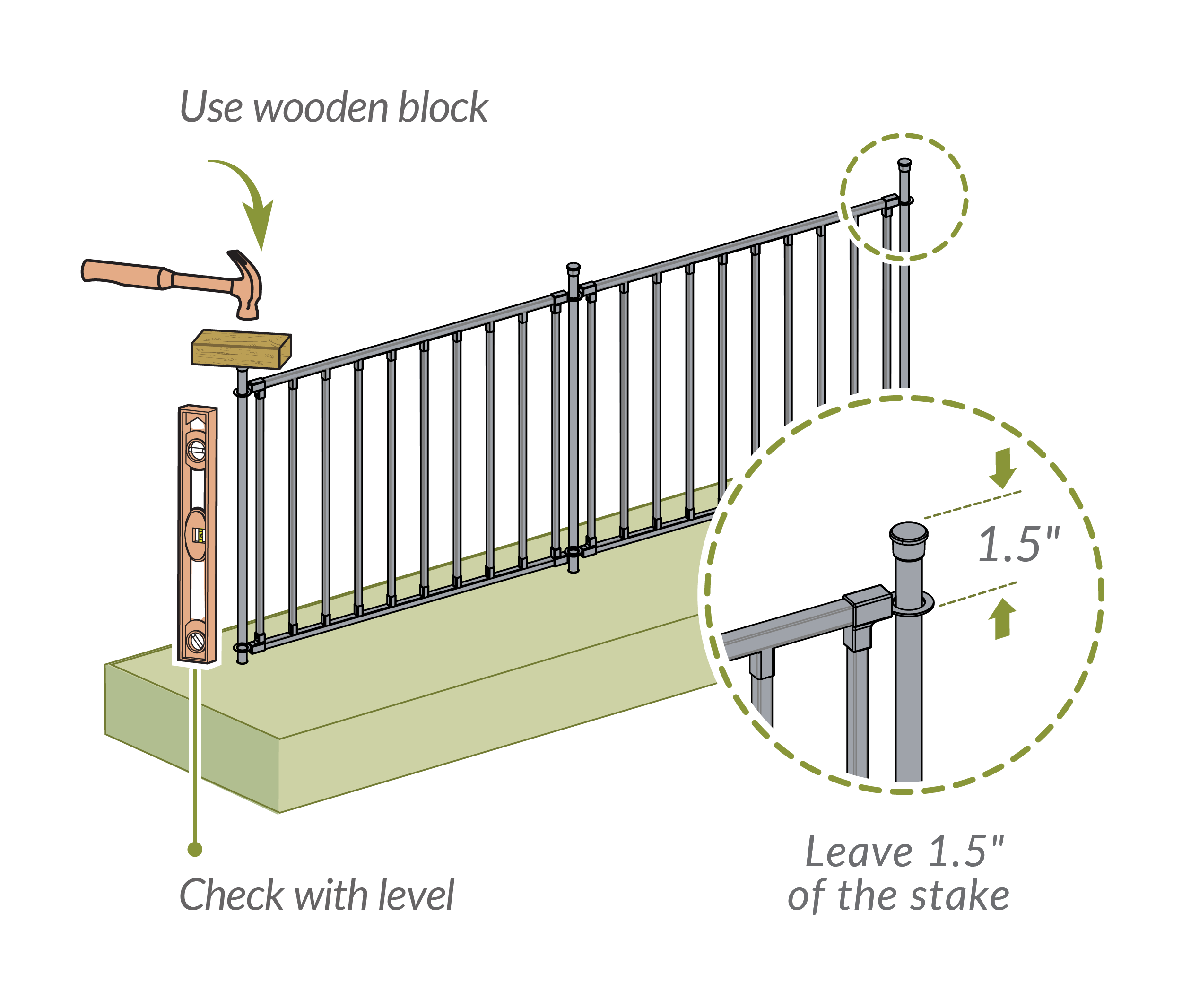

• Use a scrap wood block to protect stakes. Tap gently with a hammer.
• Check for level every few taps.
• Leave 1.5" of the stake exposed if raising the panel.

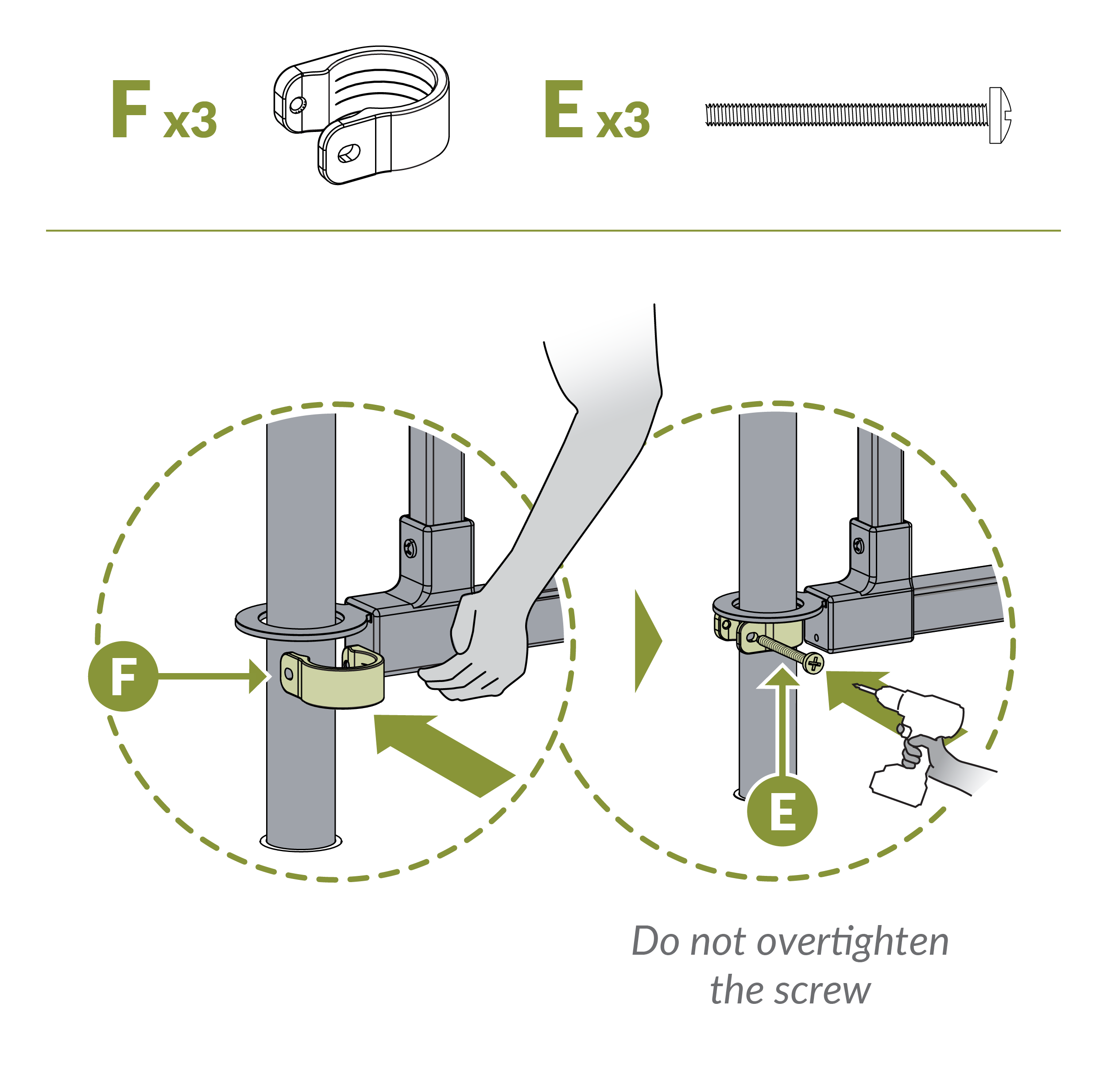

• (Optional) Use 1 1/4" screws (E) and stake ring stop (F) to raise the panel off the ground as shown.

• Do not overtighten screw.

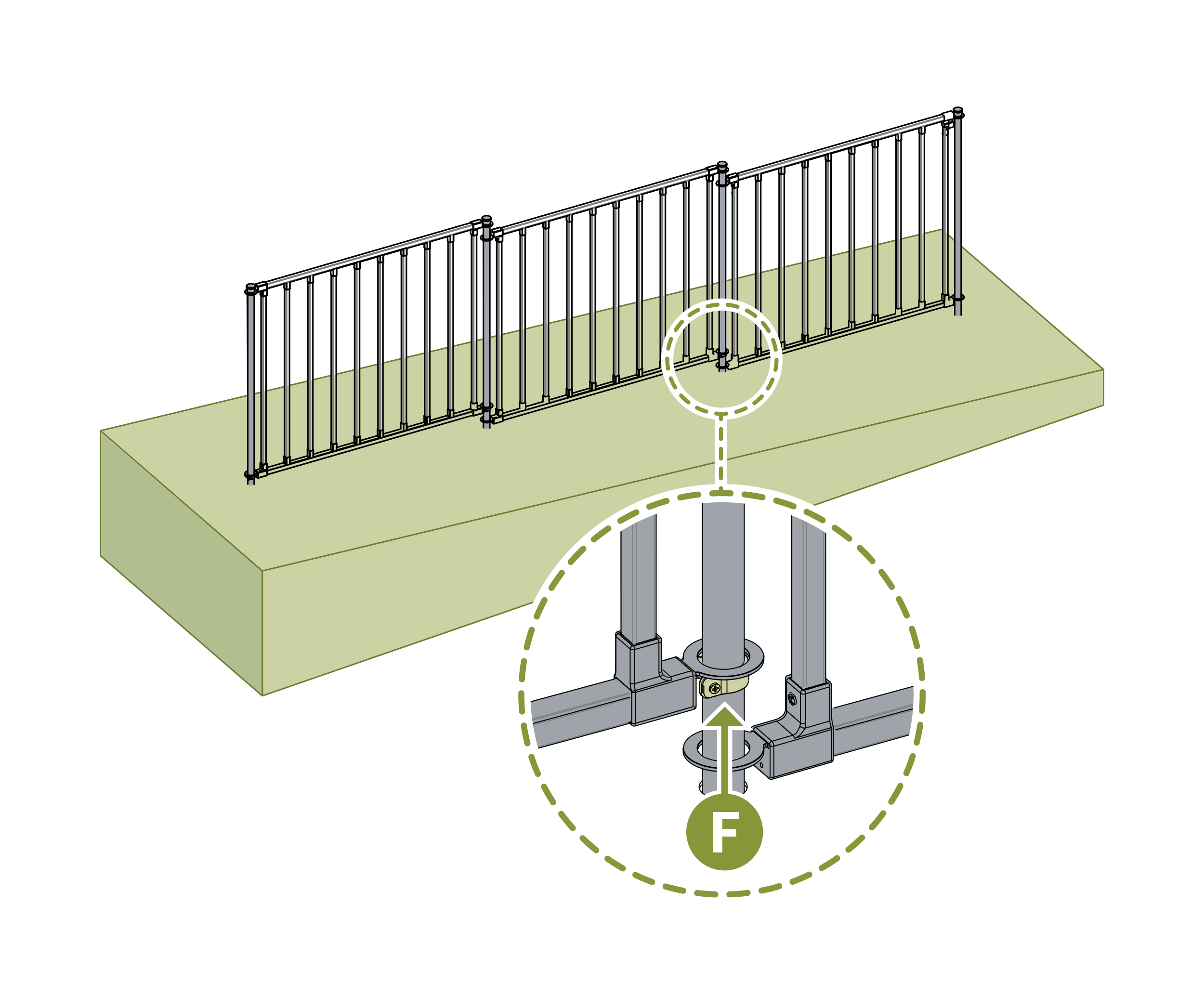

• (Optional – For Sloped Ground) Step panels by installing the lower panel beneath the stake ring stop (F).
